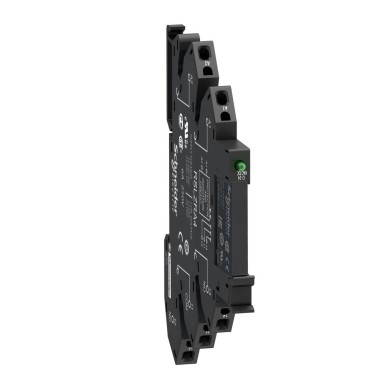

RSL1PRBU - Slim interface relay pre assembled, Harmony, 6A, 1CO, with LED, spring terminals, 24V AC DC - Schneider Electric

Pending restock EAN: 3606480077906

EAN: 3606480077906

RSL1PRBU - Slim interface relay pre assembled, Harmony, 6A, 1CO, with LED, spring terminals, 24V AC DC - Schneider Electric

14,09 € excl. VAT

17,47 € incl. VAT

Text About:

Slim interface relay pre assembled, Harmony, 6A, 1CO, with LED, spring terminals, 24V AC DC - Schneider Electric

In cart

17,47 €

SPECIFICATIONS

Main

contact layout Séparé

product range Relais électromécanique Harmony

[ithe] thermal current under enclosure 6 A à -40…55 °C

[uc] control circuit voltage 24 V CC

name of the device RSL

type of product or equipment Relais embrochable pré-assemblé avec prise

range name Relais d'interface

[ui] rated insulation voltage 250 V se conformer à EN/CEI
277 V se conformer à cUL

medium resistance 3390 Ohm réseau : CC à 23 °C +/- 10 %

sale by indivisible quantity 10

Complementary

[ie] rated operational current 6 A 1 F/O (AC-1/DC-1) se conformer à CEI/UL

contact description 1 F/O

Handle front plate colour 78,6 mm

[uimp] rated impulse withstand voltage 6 kV se conformer à CEI

minimum switching capacity 120 mW

minimum switching current 100 mA

product weight 0,029 kg

protection category RT III

description of iso n°1 terminals (A1-A2)CO
(11-12-14)OC

fixing method Ressort de compression plastique

marking CE

average coil consumption 0,17 W, CC

electrical life 60 000 cycles pour résistive charge, 6 A à 250 V, AC-1

led status Avec

connection mode Bornes à ressort, 1 x 0,2…1 x 1,5 mm² (AWG 24 à AWG 16) souple avec embout
Bornes à ressort, 1 x 0,2…1 x 1,5 mm² (AWG 24 à AWG 16) rigide sans embout

contact operation Standard

safety reliability data B10d = 60000

charging current 6 A à 250 V CA 0,5 mm de distance de montage

contact material Alliage d’argent (AgSnO2)

mechanical endurance 10000000 cycle

width (w) 6,2 mm

pin shape Plat (type PCB)

product presentation Produit complet

clamping force 10…40 N

maximum switching power 1500 VA
150 W

test levels Niveau A

depth 101 mm

mounting bracket Rail DIN symétrique 35 mm

drop-out voltage threshold >= 0,05 Uc

operating time 5 ms remise à zéro
12 ms

input voltage 24 V CA/CC (limite de tension d'entrée : 21,6...28,8 V)

mounting position Toutes positions

minimum switching voltage 12 V

order type Sans bouton-poussoir

dielectric strength 1000 V CA entre contacts
4000 V CA entre bobine et contact

command speed <= 72000 cycles/heure sans charge
<= 360 cycles/heure sous-charge

maximum cut-off voltage 277 V

Environment

ip degree of protection IP40 se conformer à EN/CEI 60529

product certificates UL
CSA
GOST

standards EN/CEI 61810-1
CSA C22.2 No 14
UL 508

operating temperature -40…55 °C

storage room temperature -40…85 °C

mechanical shock resistance 10 gn (durée = 11 ms) pour en marche se conformer à EN/CEI 60068-2-27
5 gn (durée = 11 ms) pour non fonctionnant se conformer à EN/CEI 60068-2-27

vibration resistance 10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles hors fonctionnent se conformer à EN/CEI 60068-2-6
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles en fonctionnement se conformer à EN/CEI 60068-2-6
