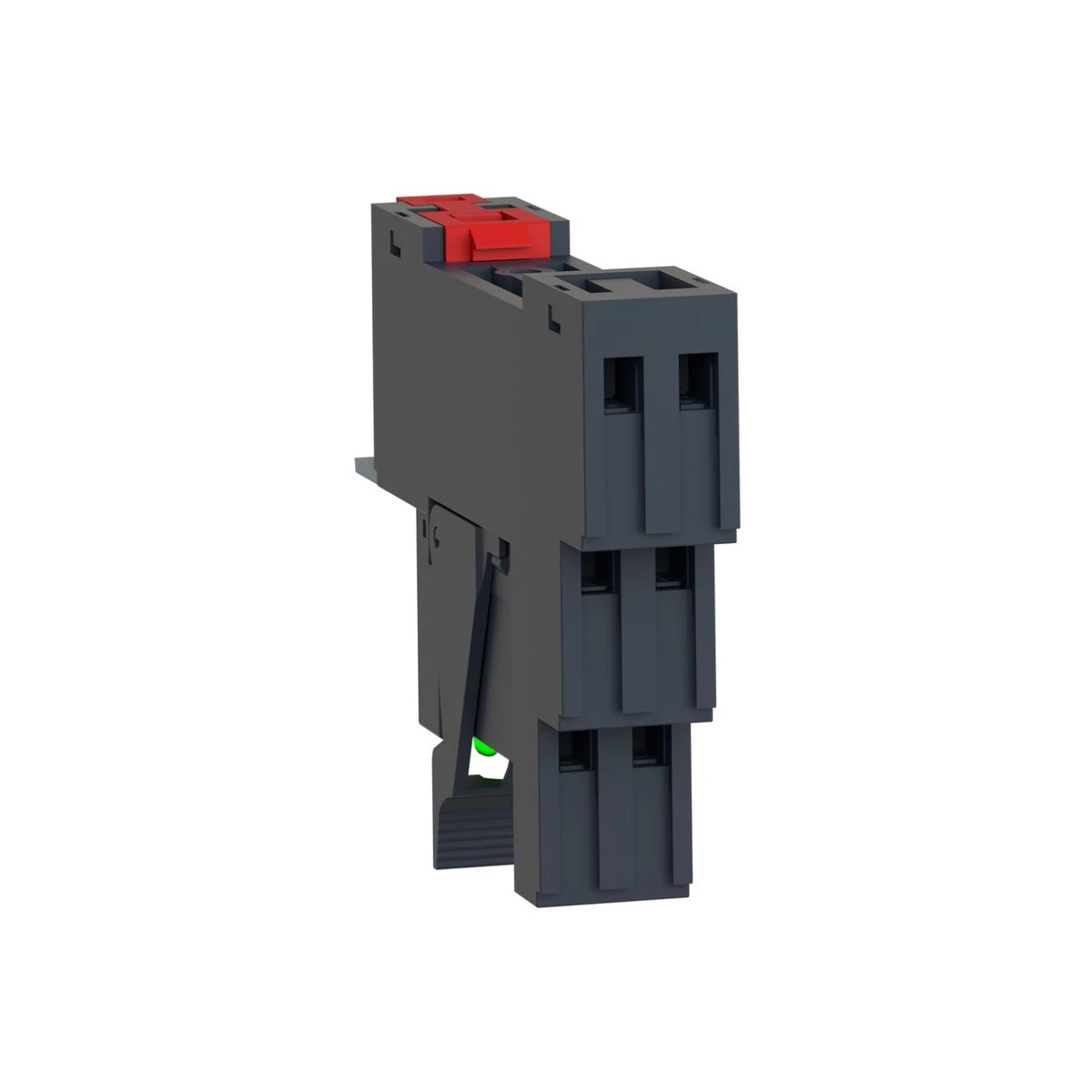

RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric

Pending restock EAN: 3606489562755
RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - 0
RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - 1
RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - 2
RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - 3
RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - 4
RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - 5
RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric - 6
EAN: 3606489562755
RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric
12,01 € excl. VAT
14,89 € incl. VAT
Text About:
Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - Schneider Electric
14,89 €
SPECIFICATIONS
Main
product range Relais électromécanique Harmony
[ithe] thermal current under enclosure 8 A à -40…40 °C
[uc] control circuit voltage 24 V CC
name of the device RSB
type of product or equipment Relais embrochable pré-assemblé avec prise
range name Relais d'interface
[ui] rated insulation voltage 400 V se conformer à EN/CEI 60947
sale by indivisible quantity 30
Complementary
[ie] rated operational current 4 A (AC-1/DC-1) "O" se conformer à CEI
8 A (AC-1/DC-1) "F" se conformer à CEI
[ue] rated operational voltage 19,2 à 26,4 V CC
contact description 2 "O/F"
[uimp] rated impulse withstand voltage 3,6 kV se conformer à CEI 61000-4-5
minimum switching capacity 120 mW à 10 mA, 12 V
minimum switching current 10 mA
product weight 0,057 kg
protection category RT I
nominal resistive load 8 A à 250 V CA
8 A à 28 V CC
average coil consumption 0,45 W CC
electrical life 100000 cycle, 8 A à 250 V, AC-1 "F"
100000 cycle, 4 A à 250 V, AC-1 "O"
led status 1 LED
connection mode Connecteur, 1 x 0,25 à 1 x 2,5 mm² (AWG 22 à AWG 14) souple avec embout
Connecteur, 2 x 0,25 à 2 x 1 mm² (AWG 22 à AWG 17) souple avec embout
Connecteur, 1 x 0,5…1 x 2,5 mm² (AWG 20 à AWG 14) rigide sans embout
Connecteur, 2 x 0,5 à 2 x 1,5 mm² (4 x 1,5 mm² + 2 x 1 mm² + 2 x 0,14 mm²) rigide sans embout
contact operation Standard
safety reliability data B10d = 100000
contact material Alliage d'argent (Ag/Ni)
mechanical endurance 30000000 cycle
product presentation Produit complet
maximum switching power 2000 VA CA
224 W CC
test levels Niveau A
average coil resistance 1440 Ohm réseau : CC à 20 °C +/- 15 %
drop-out voltage threshold >= 0,1 Uc CC
operating time 20 ms fonctionnant
20 ms remise à zéro
mounting position Toutes positions
minimum switching voltage 12 V
order type Sans
torque value 0,8 N.m
0,79 N.m
dielectric strength 1000 V CA entre contacts
2500 V CA entre pôles
5000 V CA entre bobine et contact
command speed <= 600 cycles/heure sous-charge
<= 18000 cycles/heure sans charge
maximum cut-off voltage 300 V CC se conformer à CEI
Environment
ip degree of protection IP20 se conformer à EN/CEI 60529
product certificates CE
UL
CSA
EAC
standards EN/CEI 61810-1
CSA C22.2 No 14
UL 508
CEI 61984
operating temperature -40…85 °C (CC)
storage room temperature -40…85 °C
mechanical shock resistance 10 gn (durée = 11 ms) pour non fonctionnant se conformer à EN/CEI 60068-2-27
5 gn (durée = 11 ms) pour en marche se conformer à EN/CEI 60068-2-27
vibration resistance +/- 1 mm (f= 10…55 Hz) se conformer à EN/CEI 60068-2-6
About this product

The RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC is devised to respond to the necessities of industry specialists, such as panel builders, cable technicians, maintenance companies, and equipment creators. RSB2A080BDPV yields superb capability and advantages for planners in the electrical engineering industry. This Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC and other Harmony RP/RXM/RUM/RSB from Schneider Electric are accessible at the most competitive price and distribution time through BALTELEC website, a reliable purveyor meeting the needs of professionals in their supply needs.

Buyers who have procured Schneider Electric Harmony RP/RXM/RUM/RSB have continuously admired the brand's robustness. It has been noted that the extraordinary competence of RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC extends to a array of utilizations. Its supreme components make it well-suited solution for different applications, guaranteeing the success of your industrial, tertiary, and automation contracts.

Our team dedicates in catering industrial and tertiary professionals’ needs. We appreciate the customized demands and expectations of our stakeholders in the domain. By cooperating with Baltelec team, your business acquire access to the superior price lists and inventory of first-rate products like RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC from Schneider Electric at the most competitive price. Authorized buyers take advantage of exclusive discounts and dedicated support.

Begin today and buy RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC at our risk-free and convenient virtual storefront. Don't delay in making this thoughtful move that warrants the best quality and adheres to the specific standards of suppliers like your company.

Should you have any uncertainties or concerns about RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC or any other Schneider Electric products, reach out to us or refer to our Support section section below. We have assembled answers to regular matters to aid you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, RSB2A080BDPV - Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC from Schneider Electric is secure, thrifty, and premier to market challengers in the Harmony RP/RXM/RUM/RSB category. Make it a part of your apparatus without delay. Shop with confidence at Baltelec webstore, your dependable vendor for all your Schneider Electric.

In our Baltelec.eu online store you will encounter Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC - RSB2A080BDPV worth 14.65 €, which will be a trustworthy and current solution for your needs. This object is designed by the Schneider Electric brand using the current technologies and complies with the pinnacle standards of defense and efficiency. We give items from the Harmony RP/RXM/RUM/RSB category that combine sturdiness and functionality, which is an first-rate decision for various tasks. Independent of whether you seek equipment for small output or for experienced industrial implementation, Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC will be a steadfast aid in your work.

Baltelec aims to make the attaining process as easy and fast as possible for our buyers. We offer detailed reports and high-quality visuals of Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC so that you can make an briefed choice. A team of adepts is always ready to help you with any concerns in the Harmony RP/RXM/RUM/RSB section connected to the picking and use of supplies. We are sure that Harmony Relay RSB - plug-in PCB relay mounted on socket - 2OF 8A - 24VDC will meet your prospects and become an necessary element of your gear for just 14.65 €.
