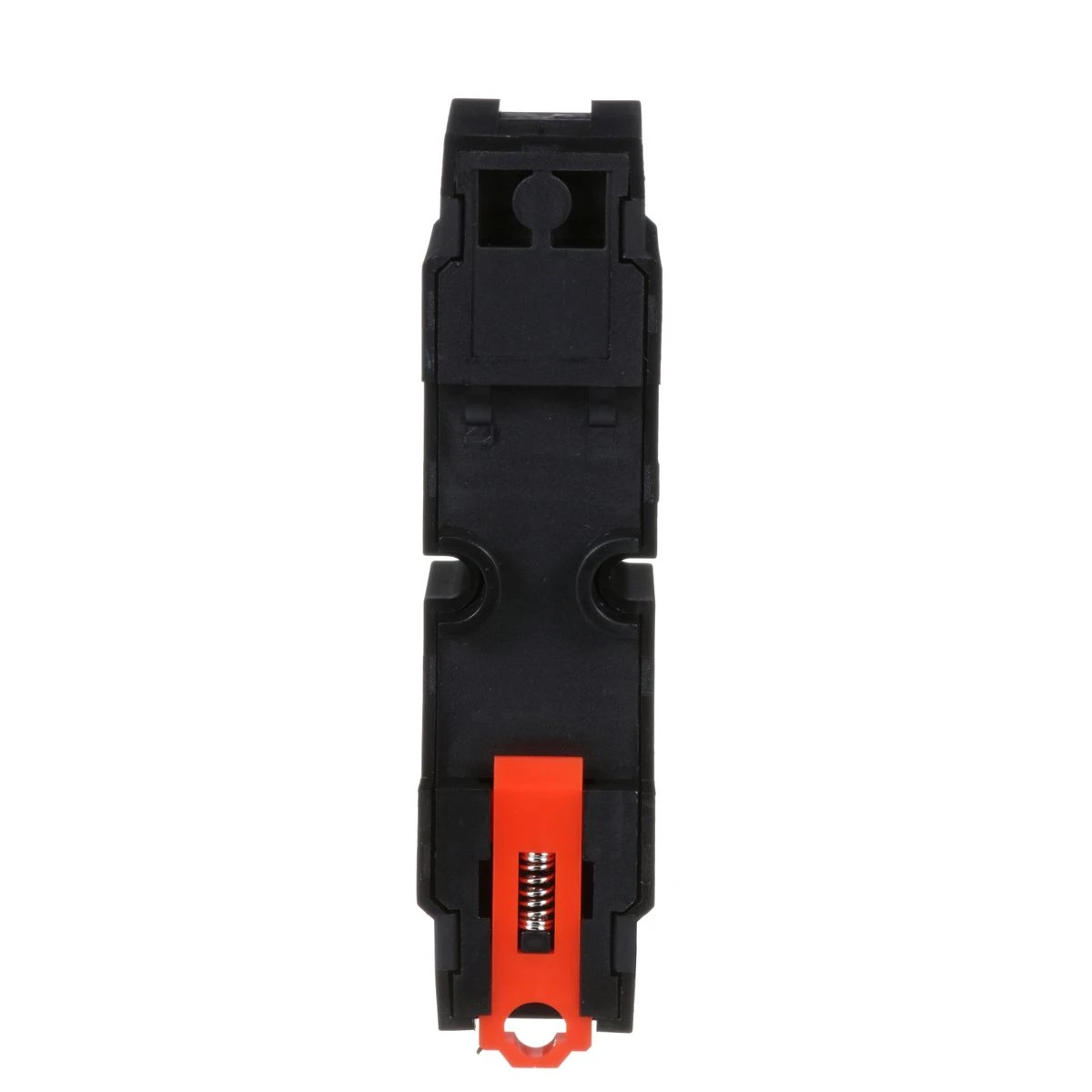

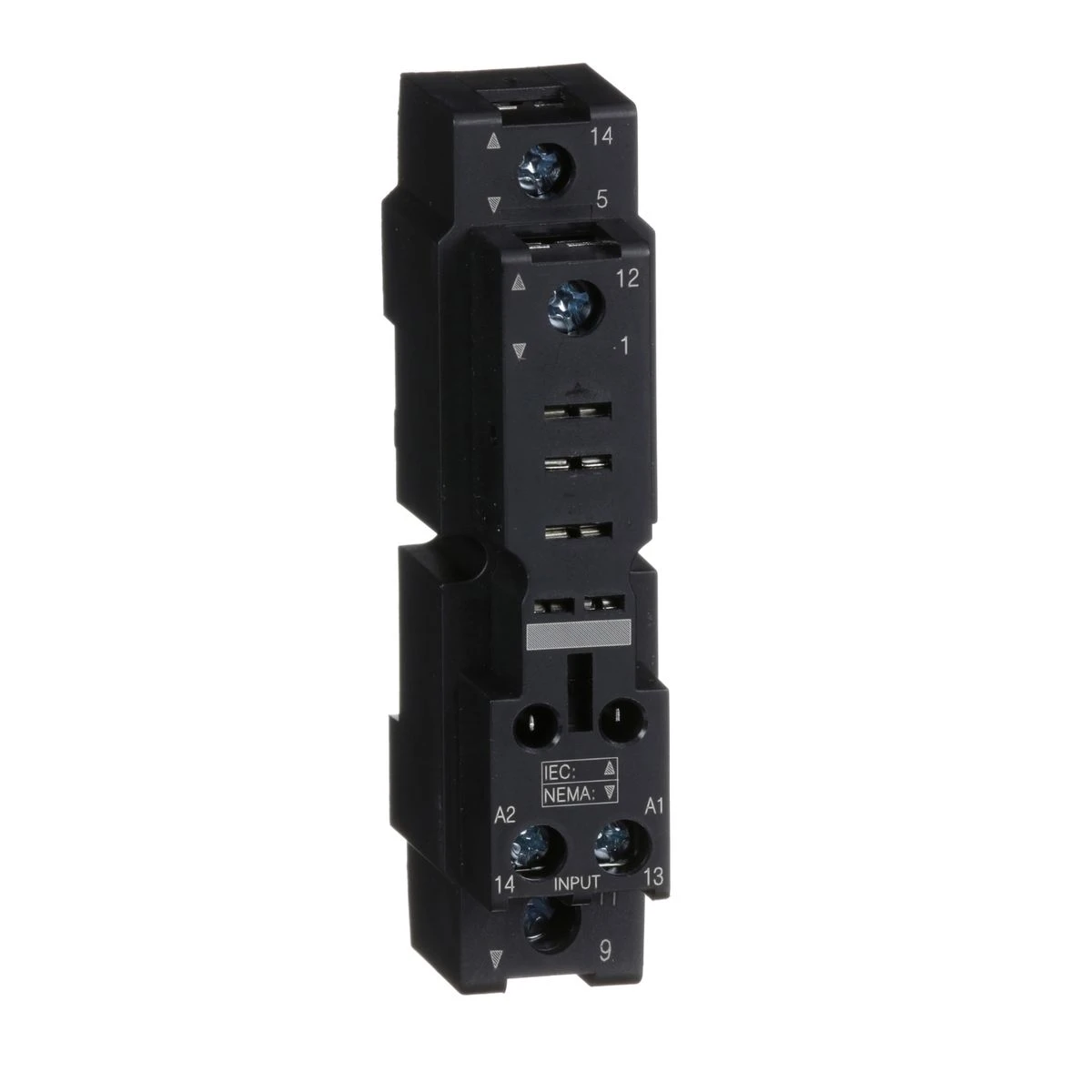

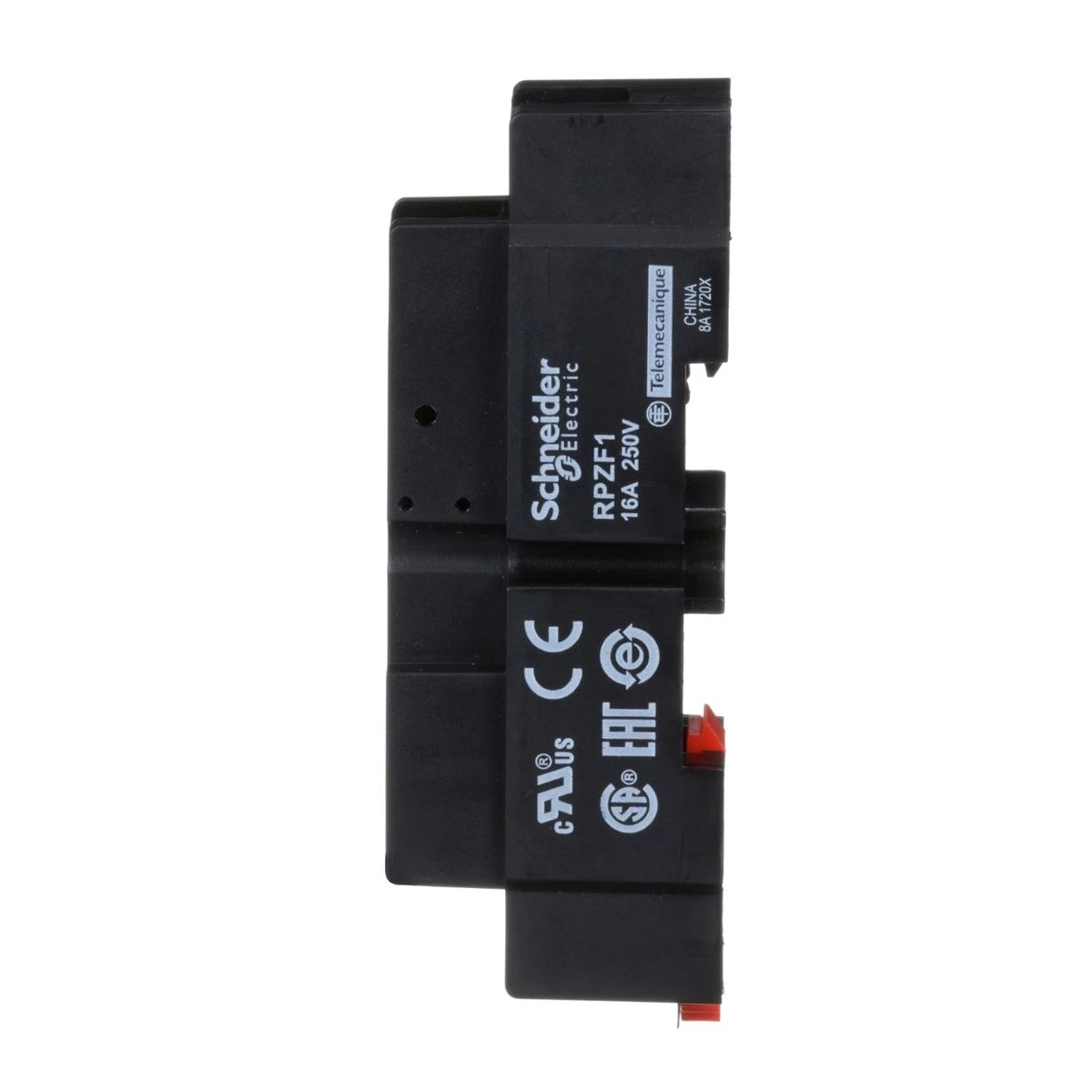

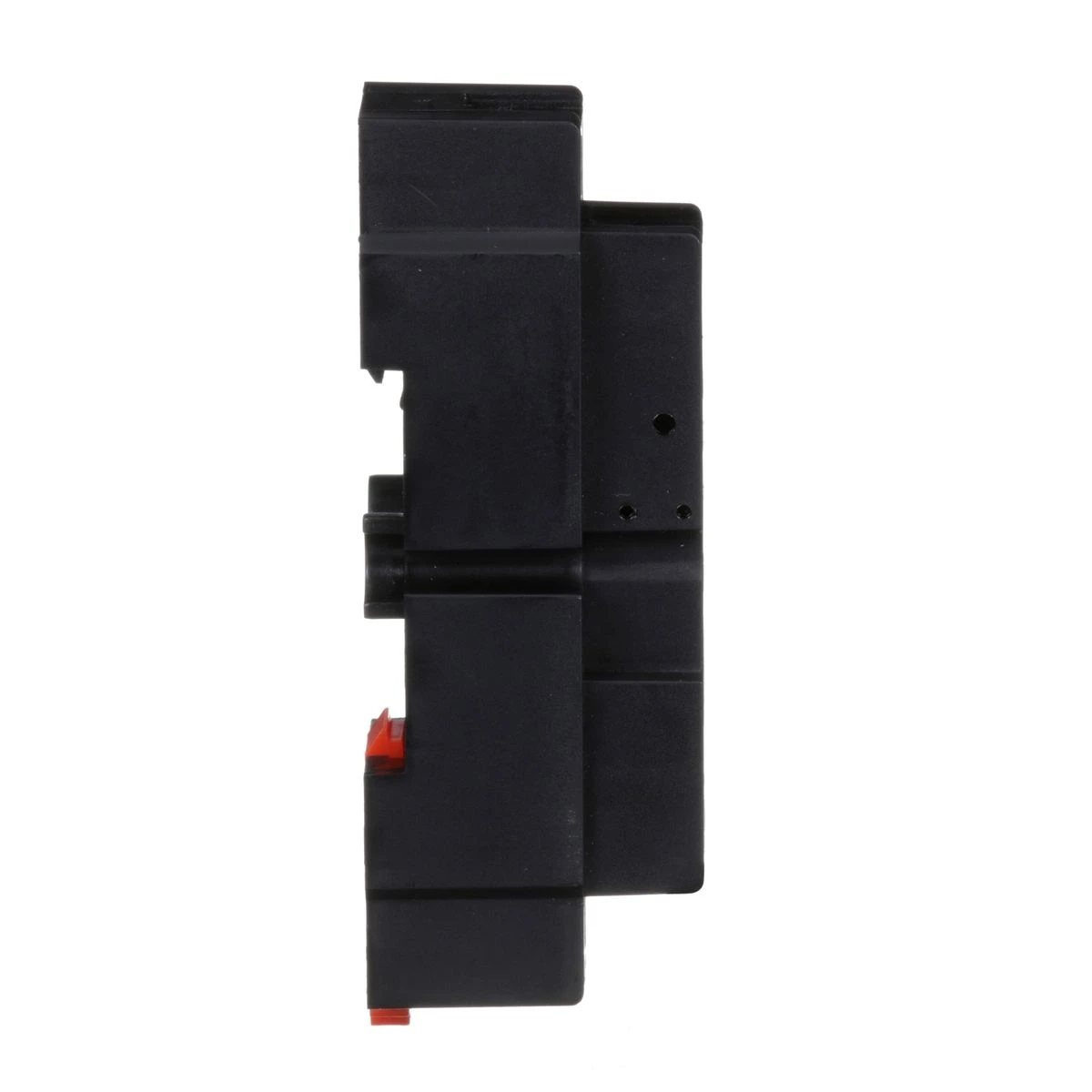

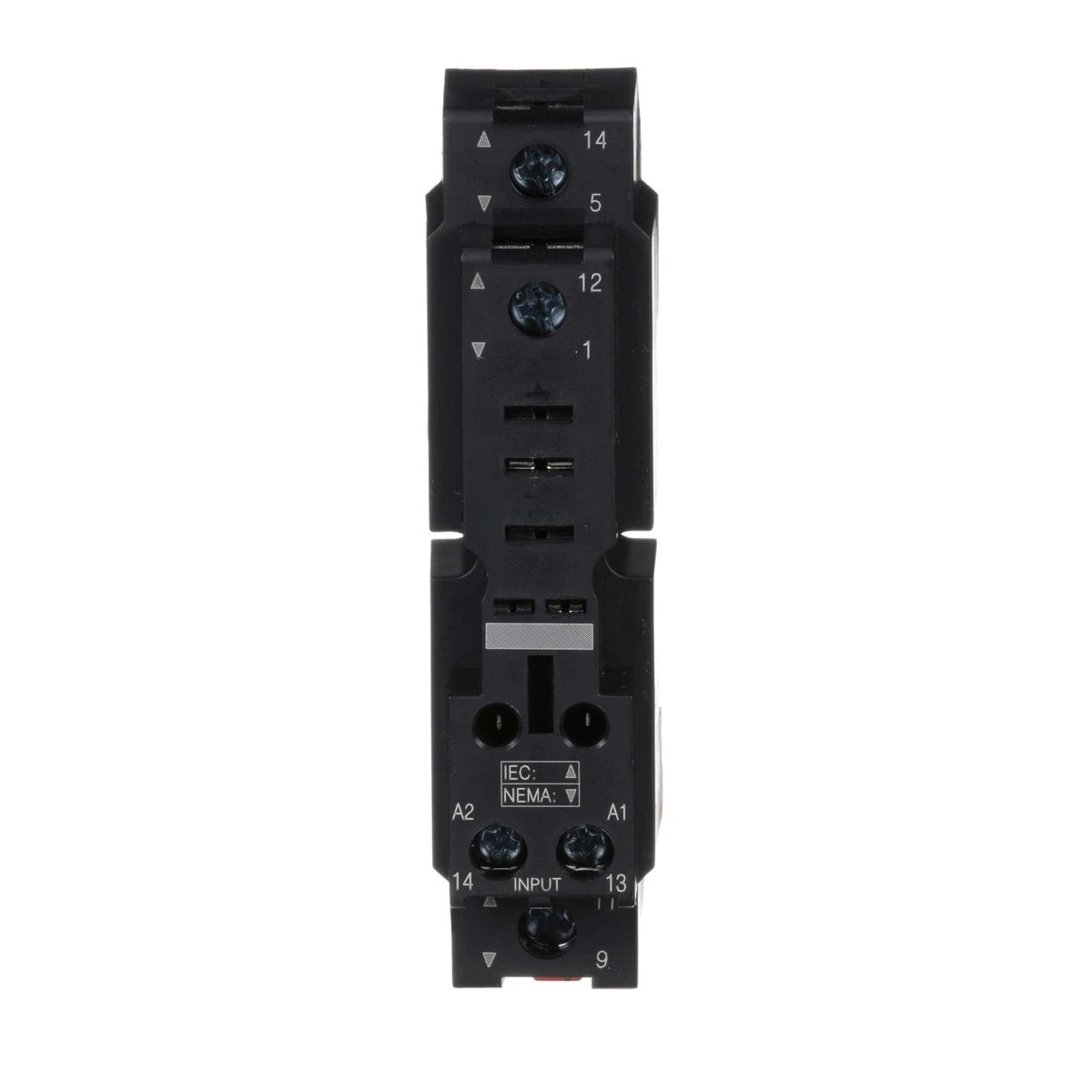

RPZF1 - Harmony, Socket, for RPM1 power relays, 16 A screw clamp terminals, mixed contact - Schneider Electric
Expected in 2-4 weeks
4,38 € excl. VAT
5,34 € incl. VAT
Text About:
Harmony, Socket, for RPM1 power relays, 16 A screw clamp terminals, mixed contact - Schneider Electric
SPECIFICATIONS
Main
Device short name
RPZ
Complementary
product compatibility
Plug-in relay RPM with 1 C/O contact
[ue] rated operational voltage
250 V
[ith] conventional thermal current
16 A
Product certifications
CSA
UL
EAC
CE
UL
EAC
CE
Product or component type
Socket
tightening torque
< 1 N.m for M3.5 screw(s)
< 0.8 N.m for M3 screw(s)
< 0.8 N.m for M3 screw(s)
[uimp] rated impulse withstand voltage
4 kV
Connections - terminals
Contact terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...4 mm² / AWG 20...AWG 12
Contact terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...4 mm² / AWG 20...AWG 12
Contact terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...2.5 mm² / AWG 20...AWG 14
Contact terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...2.5 mm² / AWG 20...AWG 14
Coil terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...2.5 mm² / AWG 20...AWG 14
Coil terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...2.5 mm² / AWG 20...AWG 14
Coil terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...1.5 mm² / AWG 20...AWG 16
Coil terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...1.5 mm² / AWG 20...AWG 16
Contact terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...4 mm² / AWG 20...AWG 12
Contact terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...2.5 mm² / AWG 20...AWG 14
Contact terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...2.5 mm² / AWG 20...AWG 14
Coil terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...2.5 mm² / AWG 20...AWG 14
Coil terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...2.5 mm² / AWG 20...AWG 14
Coil terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...1.5 mm² / AWG 20...AWG 16
Coil terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...1.5 mm² / AWG 20...AWG 16
Contact terminal arrangement
Mixed
Fixing mode
By screw (panel)
Clip-on (35 mm symmetrical DIN rail)
Clip-on (35 mm symmetrical DIN rail)
Net weight
0.031 kg
Pollution degree
3
dielectric strength
2500 V
Environment
Ambient air temp for storage/transportation
-40…85 °C
ip degree of protection
IP20 conforming to EN/IEC 60529
Range of product
Harmony Electromechanical Relays
ambient air temperature for operation
-40…55 °C
overvoltage category
III
standards
IEC 61984
CSA C22.2 No 14
UL 508
CSA C22.2 No 14
UL 508
