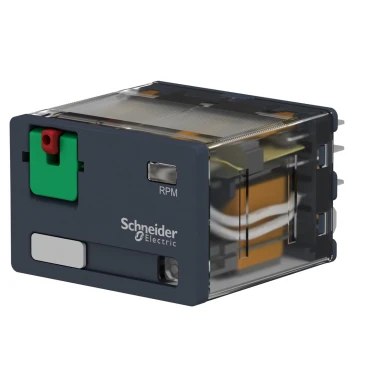

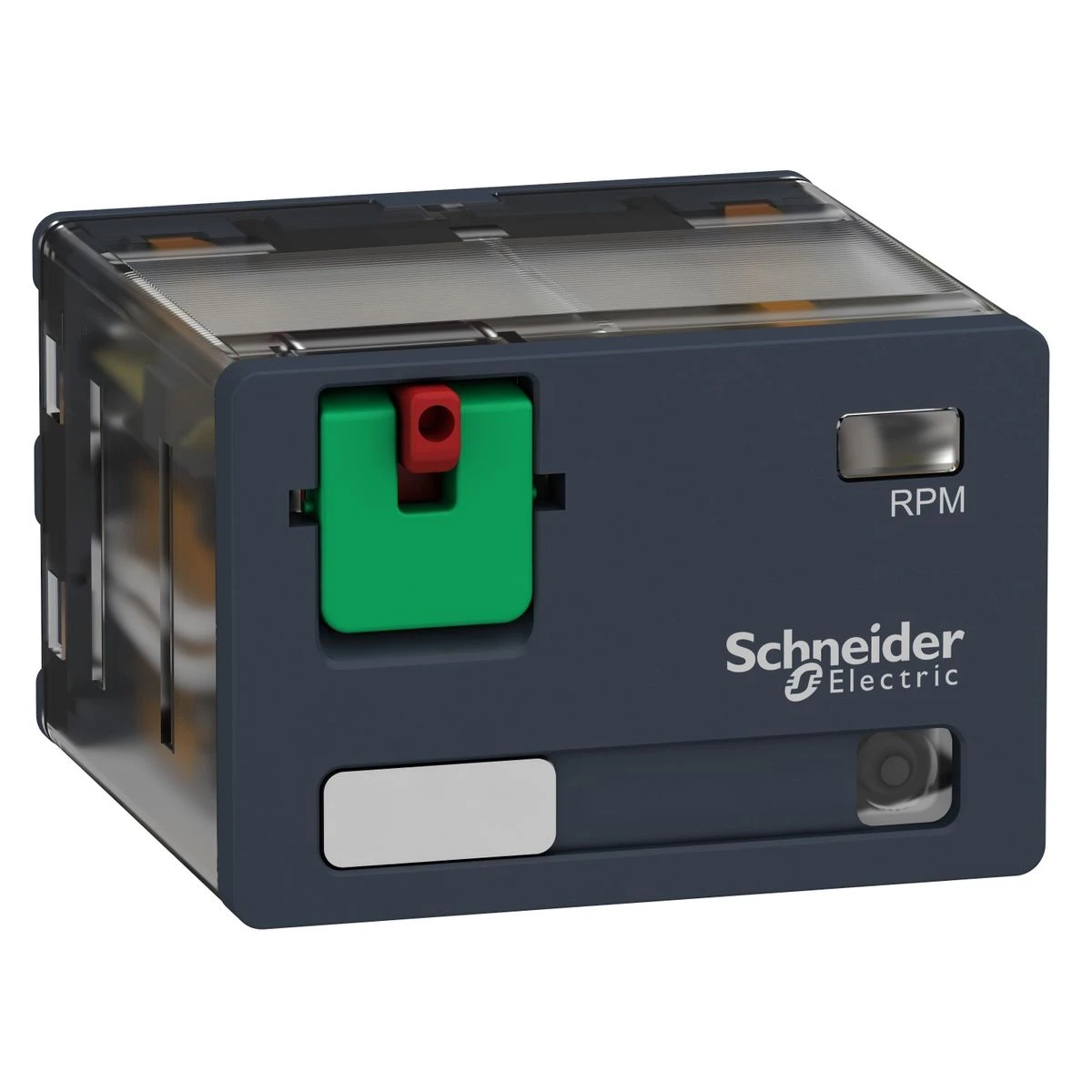

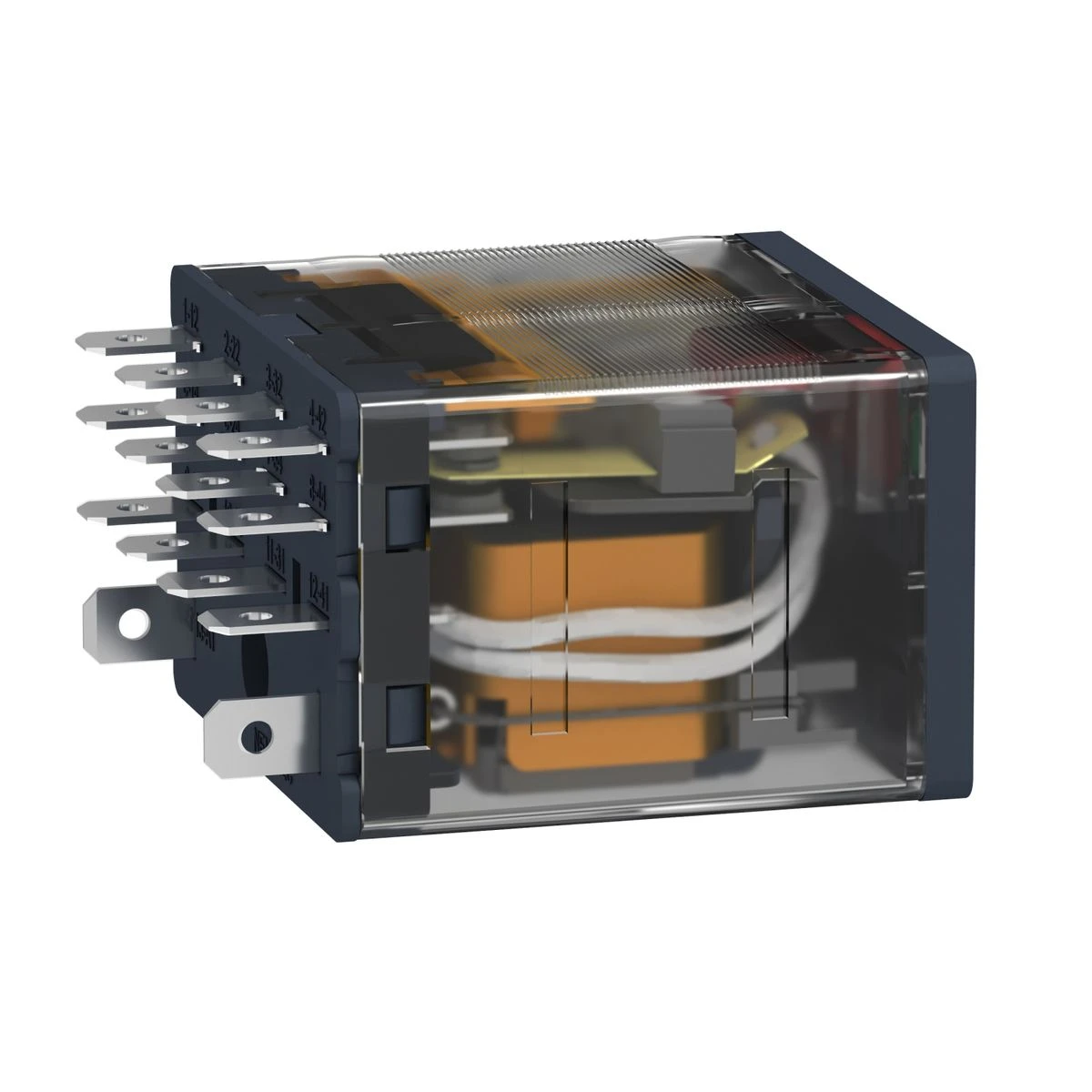

RPM42E7 - Harmony, Power plugin relay, 15 A, 4 CO, with LED, with lockable test button, 48 V AC - Schneider Electric

Expected in 2-4 weeks

RPM42E7 - Harmony, Power plugin relay, 15 A, 4 CO, with LED, with lockable test button, 48 V AC - Schneider Electric

17,17 € excl. VAT

20,94 € incl. VAT

Text About:

Harmony, Power plugin relay, 15 A, 4 CO, with LED, with lockable test button, 48 V AC - Schneider Electric

In cart

20,94 €

SPECIFICATIONS

Main

Device short name RPM

[ithe] thermal current under enclosure 15 A at -40…55 °C

[uc] control circuit voltage 48 V AC 50/60 Hz

[ui] rated insulation voltage 250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL

Series name Power

Complementary

[ie] rated operational current 15 A at 277 V (AC) conforming to UL
15 A at 28 V (DC) conforming to UL
15 A at 250 V (AC) NO conforming to IEC
15 A at 28 V (DC) NO conforming to IEC
7.5 A at 250 V (AC) NC conforming to IEC
7.5 A at 28 V (DC) NC conforming to IEC

Control type Lockable test button

Product certifications EAC
UL
CSA

Product or component type Plug-in relay

[uimp] rated impulse withstand voltage 4 kV during 1.2/50 µs

minimum switching capacity 170 mW at 10 mA, 17 V

protection category RT I

average coil consumption in va 2.5 at 60 Hz

Contacts material AgNi

Contacts type and composition 4 C/O

safety reliability data B10d = 100000

Net weight 0.071 kg

Operating position Any position

test levels Level A group mounting

mechanical durability 10000000 cycles

Rated operational voltage limits 38.4...52.8 V AC

electrical durability 100000 cycles for resistive load

Device presentation Complete product

average coil resistance 310 Ohm at 20 °C +/- 15 %

Pollution degree 3

drop-out voltage threshold >= 0.15 Uc AC

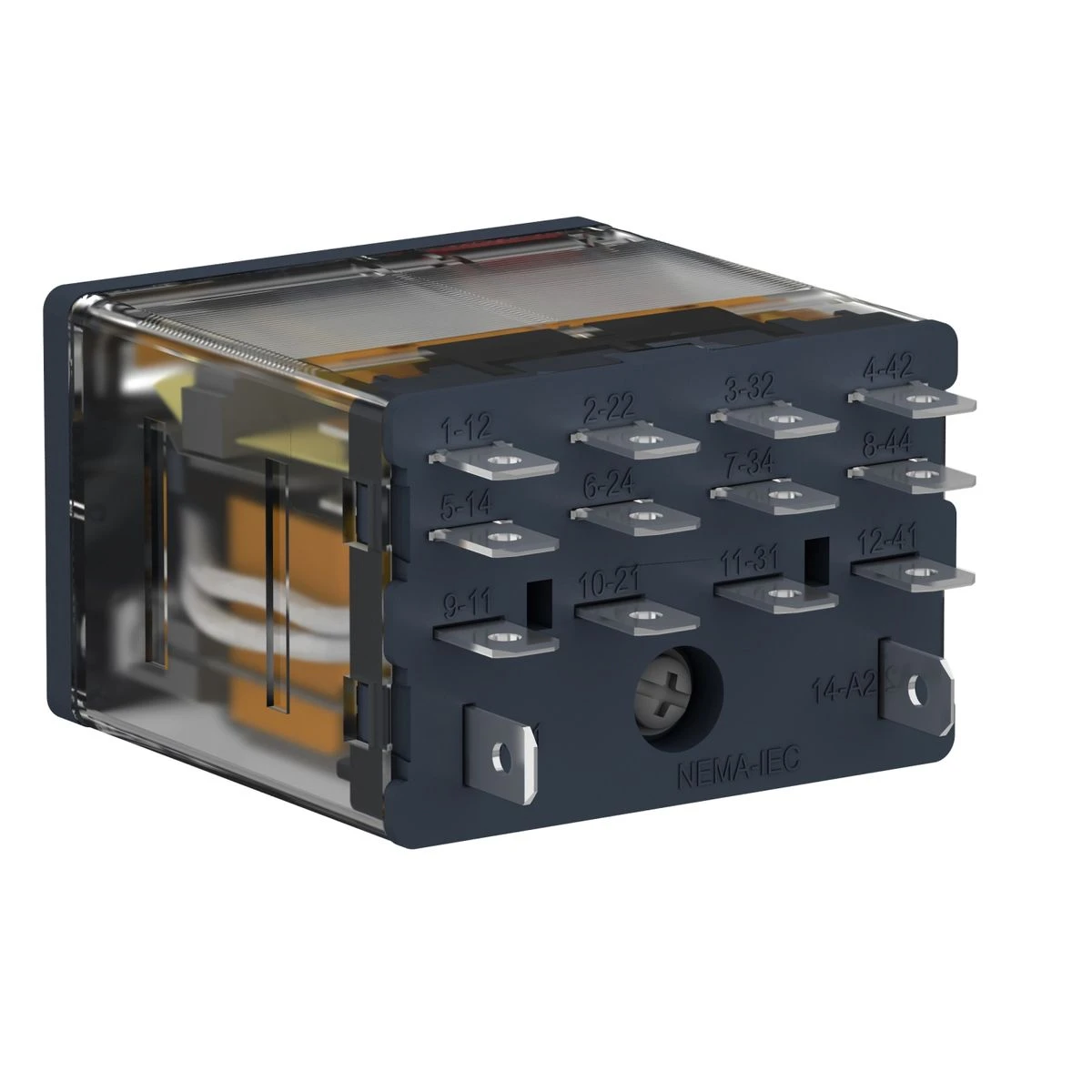

Shape of pin Flat

Maximum switching capacity 3750 VA
420 W

Maximum switching voltage 250 V conforming to IEC

dielectric strength 1500 V AC between contacts with micro disconnection
2000 V AC between coil and contact with reinforced
2000 V AC between poles with basic

Operate time 20 ms at nominal voltage

Operating rate <= 1200 cycles/hour under load
<= 18000 cycles/hour no-load

Resistive load current 15 A at 250 V AC
15 A at 28 V DC

Shock resistance 15 gn for in operation
30 gn for not operating

Release time 20 ms at nominal voltage

Status led With

Utilisation coefficient 20 %

Environment

Ambient air temp for storage/transportation -40…85 °C

Range of product Harmony Electromechanical Relays

ambient air temperature for operation -40…55 °C

degree of protection (housing only) IP40 conforming to EN/IEC 60529

standards CSA C22.2 No 14
EN/IEC 61810-1
UL 508

vibration resistance 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
