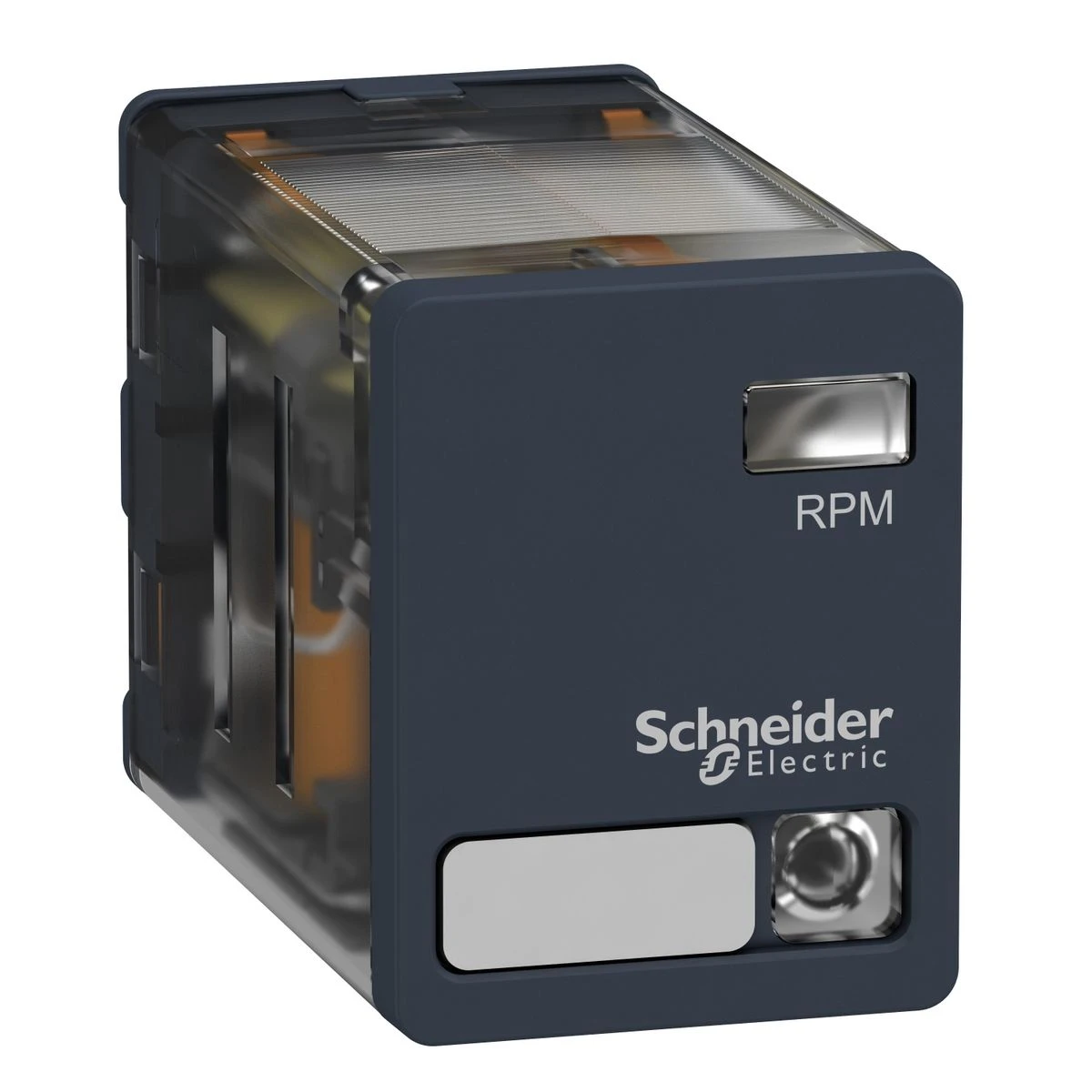

RPM23BD - Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC - Schneider Electric

Pending restock
RPM23BD - Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC - Schneider Electric - Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC - Schneider Electric - 0
RPM23BD - Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC - Schneider Electric
11,69 € excl. VAT
14,50 € incl. VAT
Text About:
Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC - Schneider Electric
14,50 €
SPECIFICATIONS
Main
Device short name RPM
[ithe] thermal current under enclosure 15 A at -40…55 °C
[uc] control circuit voltage 24 V DC
[ui] rated insulation voltage 250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
Series name Power
Complementary
[ie] rated operational current 15 A at 277 V (AC) conforming to UL
15 A at 28 V (DC) conforming to UL
15 A at 250 V (AC) NO conforming to IEC
15 A at 28 V (DC) NO conforming to IEC
7.5 A at 250 V (AC) NC conforming to IEC
7.5 A at 28 V (DC) NC conforming to IEC
Control type Without lockable test button
Product certifications EAC
UL
CSA
Product or component type Plug-in relay
[uimp] rated impulse withstand voltage 4 kV during 1.2/50 µs
minimum switching capacity 170 mW at 10 mA, 17 V
protection category RT I
average coil consumption 0.85 W
Contacts material AgNi
Contacts type and composition 2 C/O
safety reliability data B10d = 100000
Net weight 0.036 kg
Operating position Any position
test levels Level A group mounting
mechanical durability 10000000 cycles
Rated operational voltage limits 19.2...26.4 V DC
electrical durability 100000 cycles for resistive load
Device presentation Complete product
average coil resistance 640 Ohm at 20 °C +/- 10 %
Pollution degree 3
drop-out voltage threshold >= 0.1 Uc DC
Shape of pin Flat
Maximum switching capacity 3750 VA
420 W
Maximum switching voltage 250 V conforming to IEC
dielectric strength 1500 V AC between contacts with micro disconnection
2000 V AC between coil and contact with reinforced
2000 V AC between poles with basic
Operate time 20 ms at nominal voltage
Operating rate <= 1200 cycles/hour under load
<= 18000 cycles/hour no-load
Resistive load current 15 A at 250 V AC
15 A at 28 V DC
Shock resistance 15 gn for in operation
30 gn for not operating
Release time 20 ms at nominal voltage
Status led With
Utilisation coefficient 20 %
Environment
Ambient air temp for storage/transportation -40…85 °C
Range of product Harmony Electromechanical Relays
ambient air temperature for operation -40…55 °C
degree of protection (housing only) IP40 conforming to EN/IEC 60529
standards UL 508
CSA C22.2 No 14
EN/IEC 61810-1
vibration resistance 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
About this product

The RPM23BD - Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC is designed to fulfill the desires of professional purchasers, such as installers, circuit experts, management services, and manufacturing originators. RPM23BD offers superior durability and value for developers in the electrotechnical industry. This Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC and other Harmony RP/RXM/RUM/RSB from Schneider Electric can be purchased at the most affordable rate and procurement time through BALTELEC, a respected reseller supporting contractors in their procurement needs.

Users who have procured Schneider Electric Harmony RP/RXM/RUM/RSB have regularly commended the maker's resilience. It has been specified that the remarkable capability of RPM23BD - Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC extends to a spectrum of utilizations. Its high-end characteristics make it well-suited solution to cater to varied requirements, securing success in your industrial, tertiary, and automation endeavors.

Our professionals centers in meeting industrial and tertiary professionals’ needs. We grasp the special specifications and preferences of our clients in the realm. By teaming up with us, you access access to the best rates and lead time of premium products like RPM23BD - Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC from Schneider Electric at a value-for-money price. Professional buyers with Baltelec account appreciate added discounts and exclusive assistance.

Move quickly and acquire RPM23BD - Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC at our well-established and intuitive website. Don't delay in making this prudent move that warrants the best quality and satisfies the distinct needs of vendors like your outfit.

Should there be any inquiries or concerns about RPM23BD - Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC or any other Schneider Electric products, call us or refer to our FAQ section section below. We have provided answers to popular concerns to guide you further in making an considered decision about industrial and tertiary electrical components.

Remember, RPM23BD - Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC from Schneider Electric is steady, cost-effective, and excellent to other producers in the Harmony RP/RXM/RUM/RSB category. Make it a part of your setup instantly. Procure at Baltelec e-shop, your reliable source for all your professional electrical equipment and automation needs.

In our Baltelec.eu digital store you will come across Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC - RPM23BD worth 14.26 €, which will be a dependable and state-of-the-art solution for your wishes. This goods is developed by the Schneider Electric brand using the freshest technologies and fulfills the optimal standards of reliability and competence. We extend things from the Harmony RP/RXM/RUM/RSB category that merge longevity and practicality, which is an top-notch alternative for various functions. Despite of whether you need machinery for small construction or for qualified industrial exploitation, Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC will be a safe associate in your duty.

Baltelec ventures to make the procuring process as manageable and fast as achievable for our customers. We offer detailed accounts and high-quality illustrations of Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC so that you can make an informed choice. A team of maestros is always ready to help you with any doubts in the Harmony RP/RXM/RUM/RSB section pertaining to the electing and use of goods. We are certain that Harmony, Power plugin relay, 15 A, 2 CO, with LED, 24 V DC will meet your requirements and become an vital element of your hardware for just 14.26 €.

Customer Queries about Schneider Electric RPM23BD:
