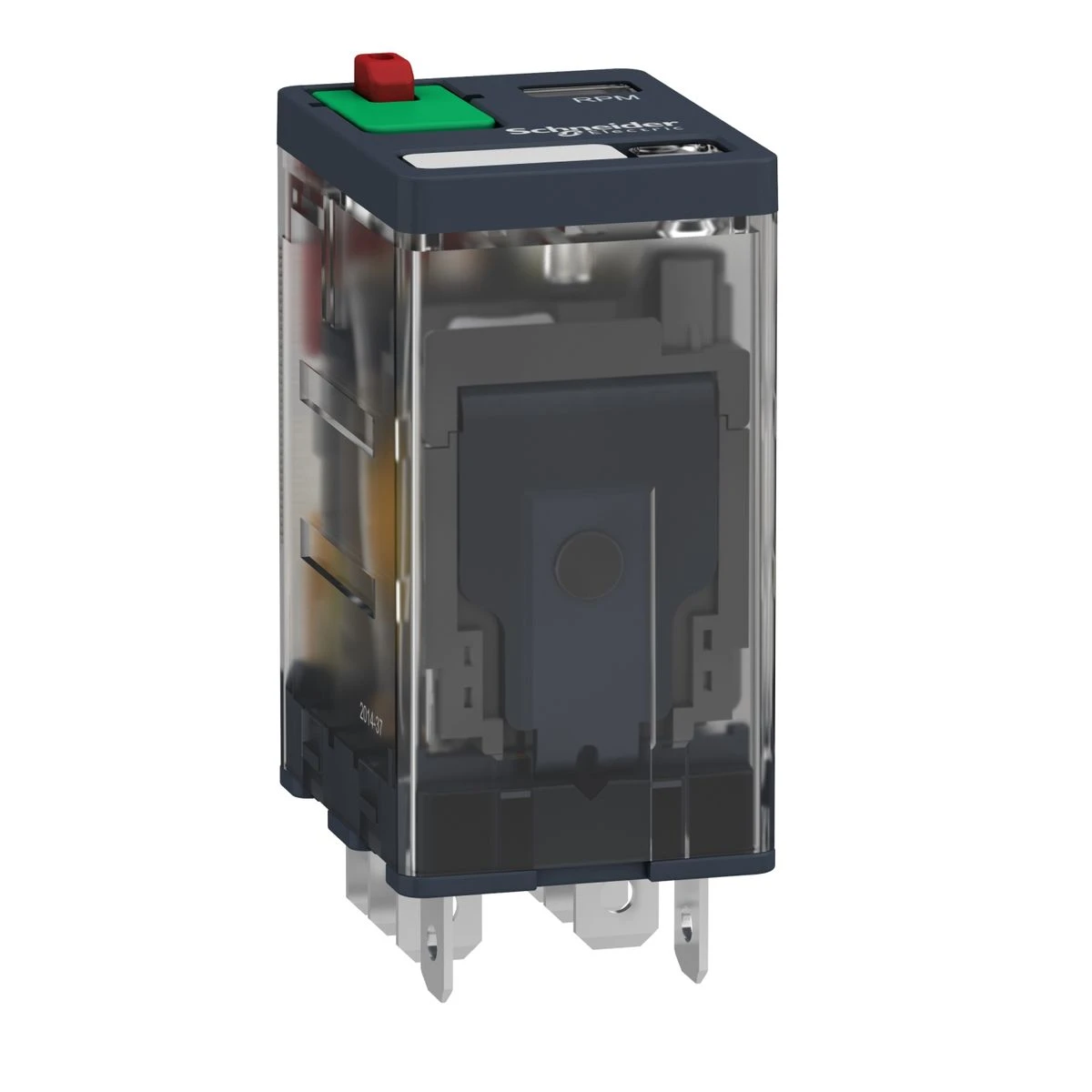

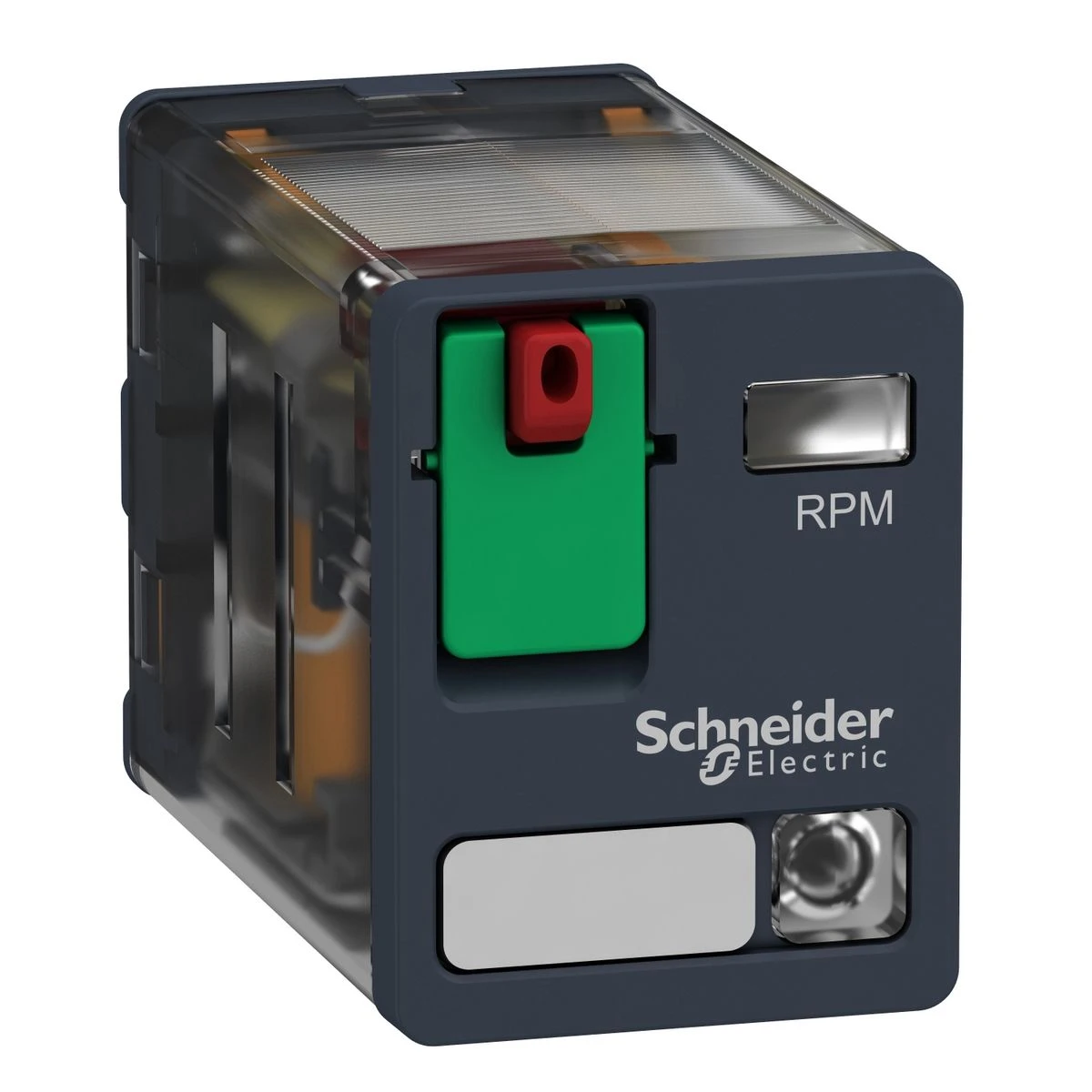

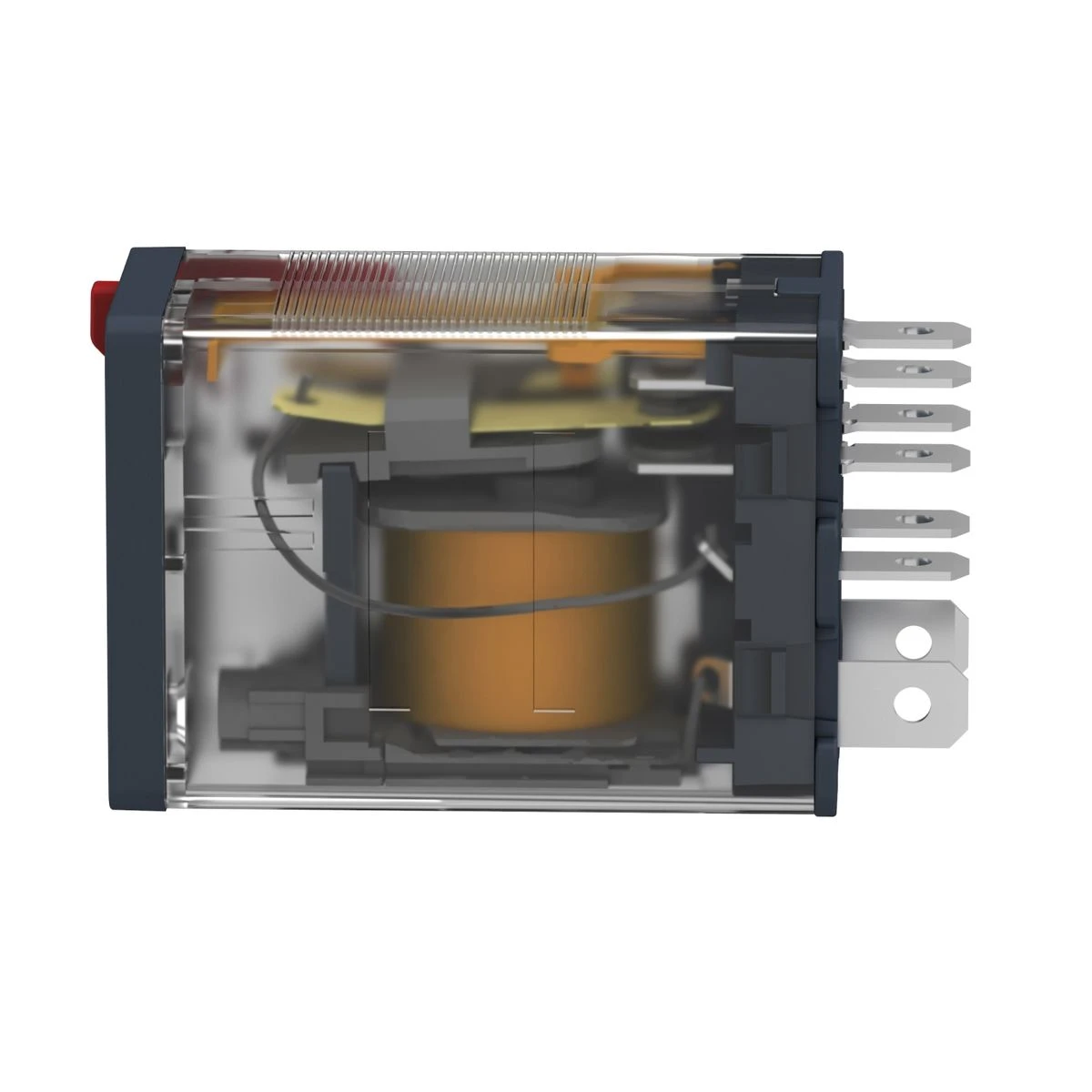

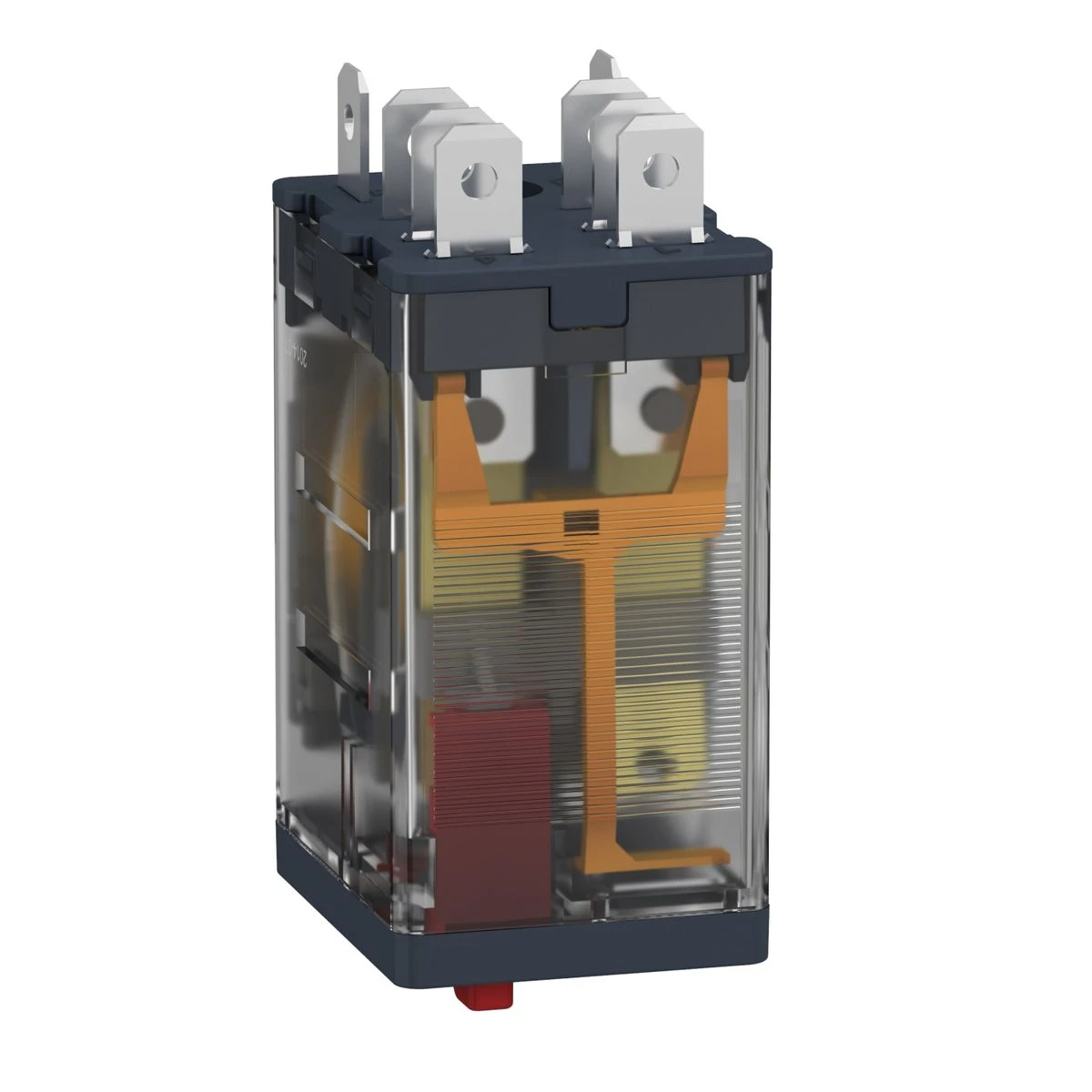

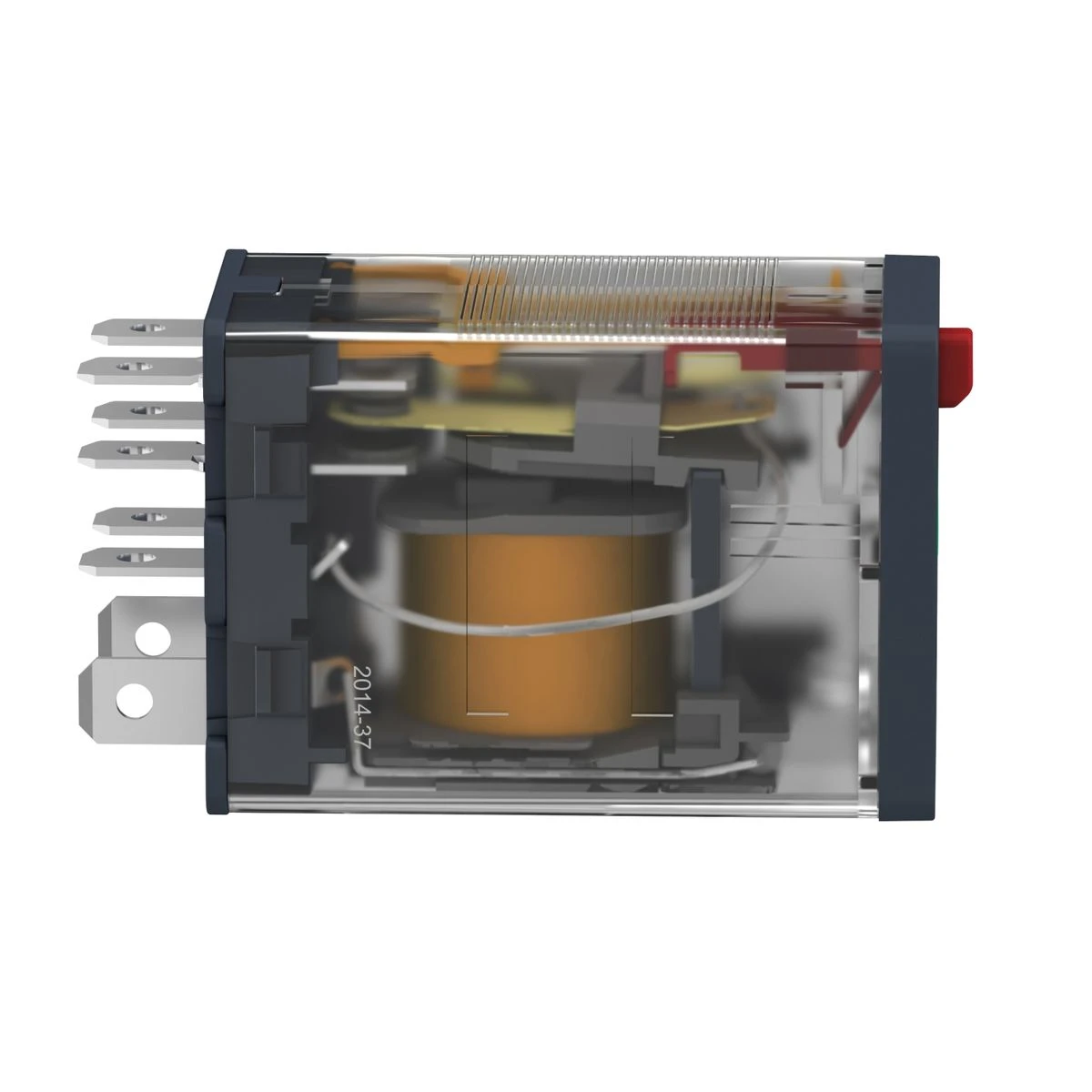

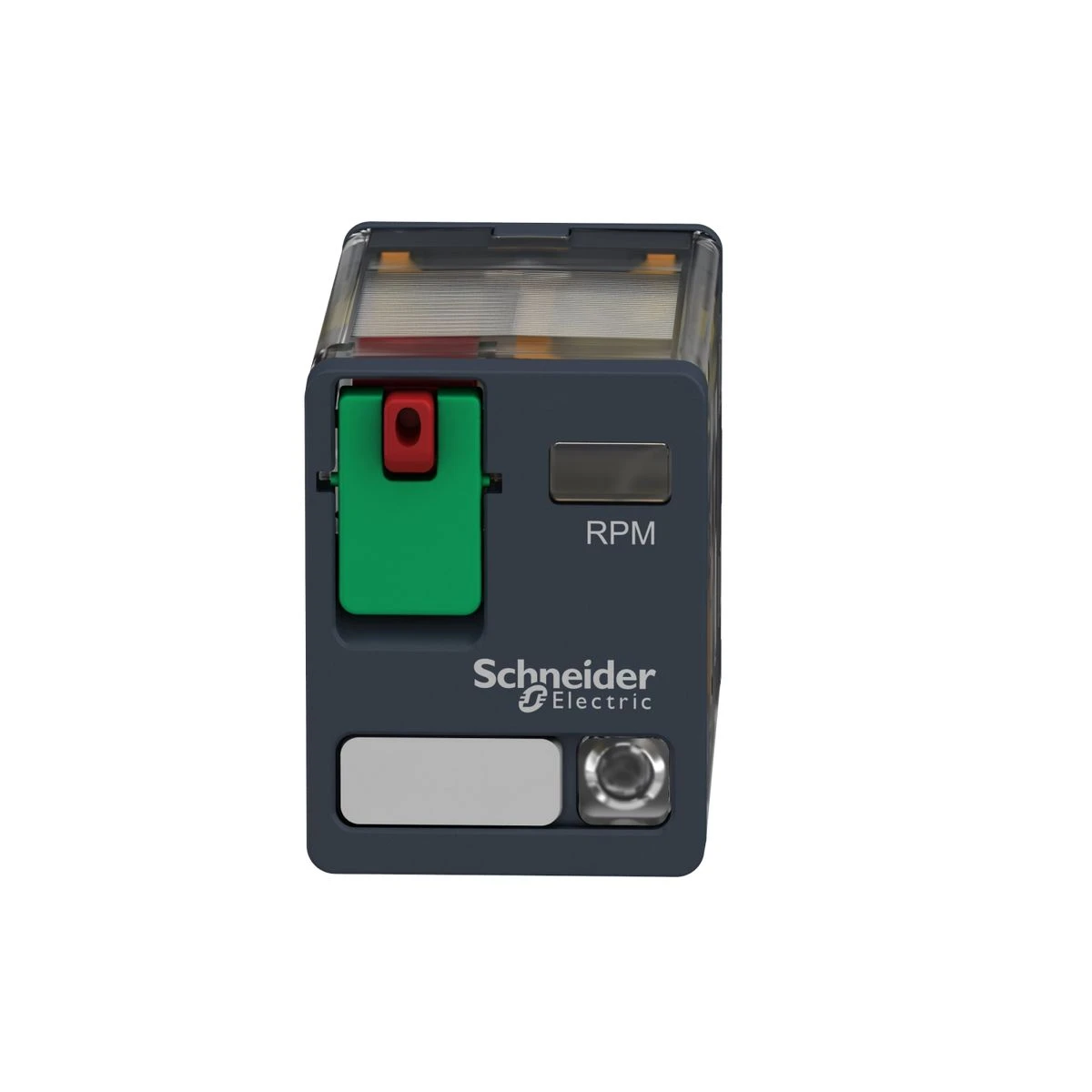

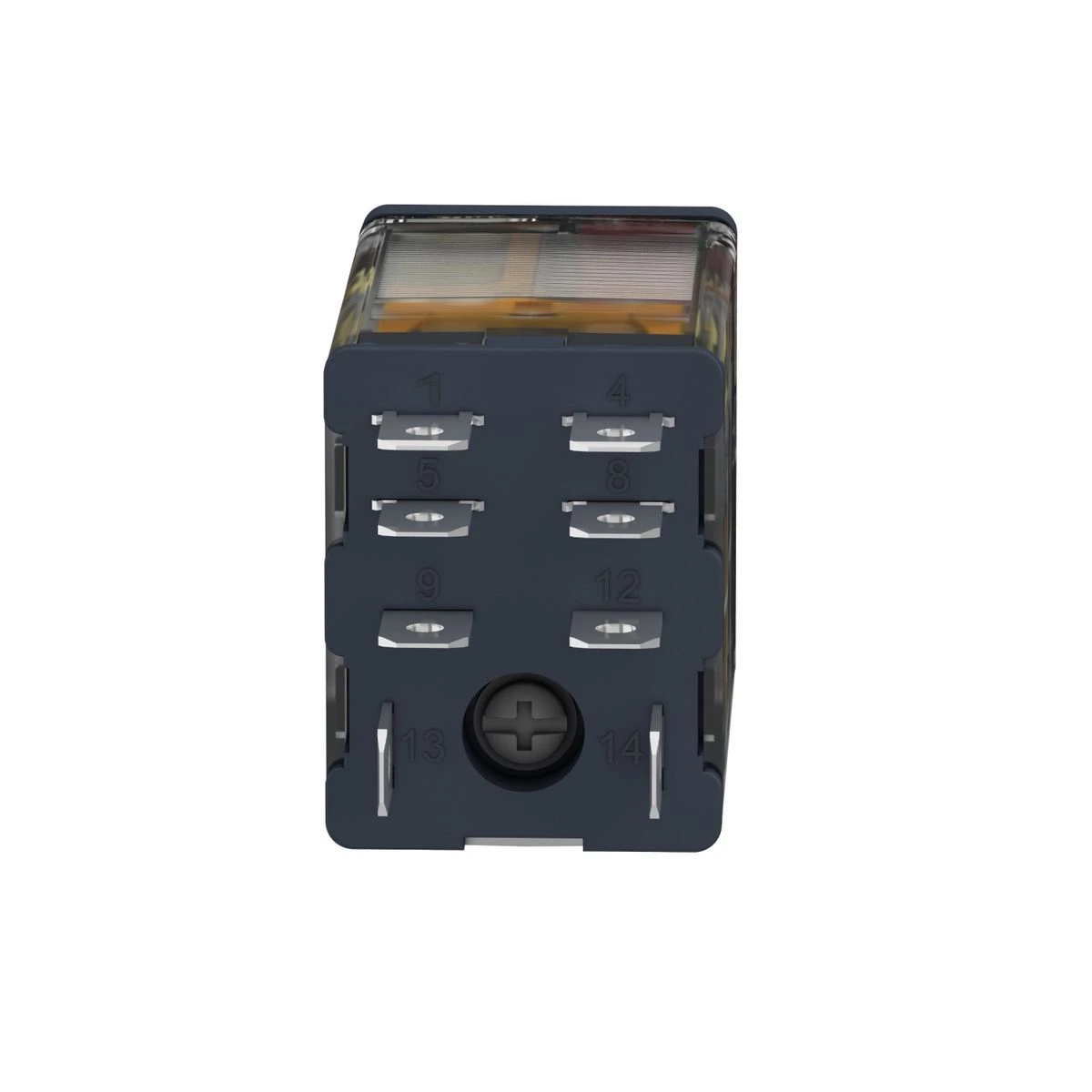

RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric

Pending restock
RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - 0
RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - 1
RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - 2
RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - 3
RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - 4
RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - 5
RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric - 6
RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric
11,00 € excl. VAT
13,64 € incl. VAT
Text About:
Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - Schneider Electric
13,64 €
SPECIFICATIONS
Main
Device short name RPM
[ithe] thermal current under enclosure 15 A at -40…55 °C
[uc] control circuit voltage 120 V AC 50/60 Hz
[ui] rated insulation voltage 250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
Series name Power
Complementary
[ie] rated operational current 15 A at 277 V (AC) conforming to UL
15 A at 28 V (DC) conforming to UL
15 A at 250 V (AC) NO conforming to IEC
15 A at 28 V (DC) NO conforming to IEC
7.5 A at 250 V (AC) NC conforming to IEC
7.5 A at 28 V (DC) NC conforming to IEC
Control type Lockable test button
Product certifications EAC
CSA
UL
Product or component type Plug-in relay
[uimp] rated impulse withstand voltage 4 kV during 1.2/50 µs
minimum switching capacity 170 mW at 10 mA, 17 V
protection category RT I
average coil consumption in va 1.1 at 60 Hz
Contacts material AgNi
Contacts type and composition 2 C/O
safety reliability data B10d = 100000
Net weight 0.036 kg
Operating position Any position
test levels Level A group mounting
mechanical durability 10000000 cycles
Rated operational voltage limits 96...132 V AC
electrical durability 100000 cycles for resistive load
Device presentation Complete product
average coil resistance 4430 Ohm at 20 °C +/- 15 %
Pollution degree 3
drop-out voltage threshold >= 0.15 Uc AC
Shape of pin Flat
Maximum switching capacity 3750 VA
420 W
Maximum switching voltage 250 V conforming to IEC
dielectric strength 1500 V AC between contacts with micro disconnection
2000 V AC between coil and contact with reinforced
2000 V AC between poles with basic
Operate time 20 ms at nominal voltage
Operating rate <= 1200 cycles/hour under load
<= 18000 cycles/hour no-load
Resistive load current 15 A at 250 V AC
15 A at 28 V DC
Shock resistance 15 gn for in operation
30 gn for not operating
Release time 20 ms at nominal voltage
Status led With
Utilisation coefficient 20 %
Environment
Ambient air temp for storage/transportation -40…85 °C
Range of product Harmony Electromechanical Relays
ambient air temperature for operation -40…55 °C
degree of protection (housing only) IP40 conforming to EN/IEC 60529
standards CSA C22.2 No 14
EN/IEC 61810-1
UL 508
vibration resistance 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
About this product

The RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC is devised to match the needs of trade professionals, such as switchboard fabricators, electric engineers, service organizations, and manufacturing originators. RPM22F7 grants remarkable reliability and utility for planners in the power management industry. This Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC and other Harmony RP/RXM/RUM/RSB from Schneider Electric are procurable at the unbeatable price and distribution time through BALTELEC.EU, a well-known supplier catering to engineers in their procurement needs.

Users who have acquired Schneider Electric Harmony RP/RXM/RUM/RSB have habitually approved the creator's soundness. It has been emphasized that the superior operation of RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC extends to a collection of functions. Its top-notch attributes make it great selection for wide-ranging specifications, guaranteeing the success of your industrial, tertiary, and automation contracts.

Our company specializes in meeting industrial and tertiary professionals’ needs. We grasp the particular standards and requirements of our consumers in the industry. By teaming up with our company, our partners secure access to the finest costs and stock of high-quality products like RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC from Schneider Electric at a reasonable price. Registered users benefit from further discounts and exclusive assistance.

Make a move and order RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC at our dependable and hassle-free website. Don't delay in making this smart investment that confirms the finest quality and addresses the particular demands of customers like your group.

If there are any issues or concerns about RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC or any other Schneider Electric products, send us a note or refer to our FAQ section section below. We have collected answers to routine doubts to serve you further in making an thoughtful decision about industrial and tertiary electrical components.

Remember, RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC from Schneider Electric is unfailing, inexpensive, and top-notch to its competitors in the Harmony RP/RXM/RUM/RSB category. Make it a part of your setup today. Take advantage of at Baltelec e-shop, your reliable source for all your Schneider Electric.

In our Baltelec.eu dot-com store you will discover Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC - RPM22F7 worth 13.42 €, which will be a sure and new solution for your demands. This product is produced by the Schneider Electric brand using the current technologies and meets the peak standards of safety and productivity. We present objects from the Harmony RP/RXM/RUM/RSB category that combine lastingness and effectiveness, which is an superior selection for various purposes. Notwithstanding of whether you seek machinery for small fabrication or for expert industrial exertion, Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC will be a trustworthy companion in your task.

Baltelec attempts to make the procuring process as uncomplicated and fast as attainable for our buyers. We offer detailed portrayals and high-quality illustrations of Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC so that you can make an educated choice. A team of maestros is always ready to help you with any uncertainties in the Harmony RP/RXM/RUM/RSB section pertaining to the preferment and use of wares. We are convinced that Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC will meet your wishes and become an indispensable element of your machinery for just 13.42 €.

FAQ about RPM22F7 - Harmony, Power plugin relay, 15 A, 2 CO, with LED, with lockable test button, 120 V AC:
