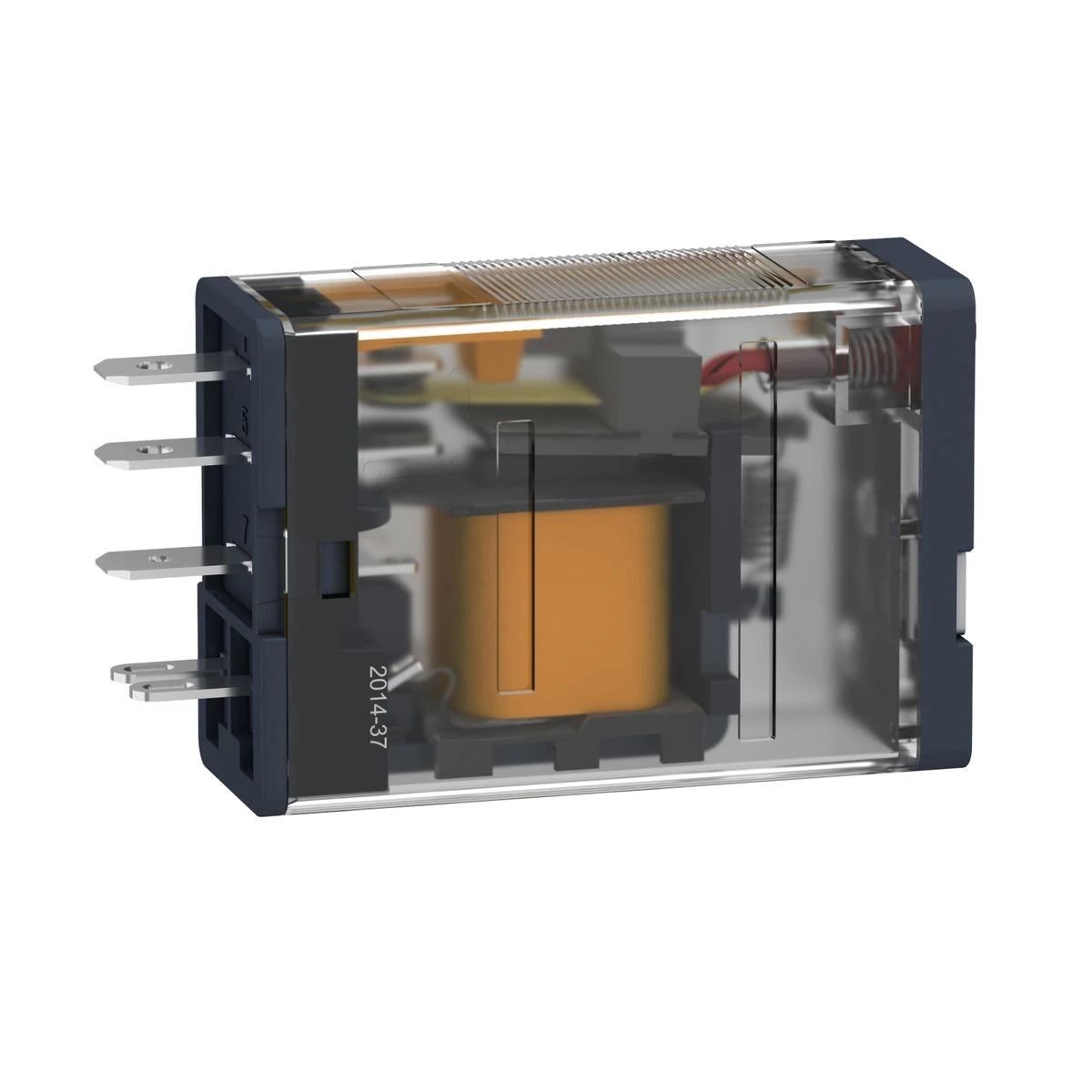

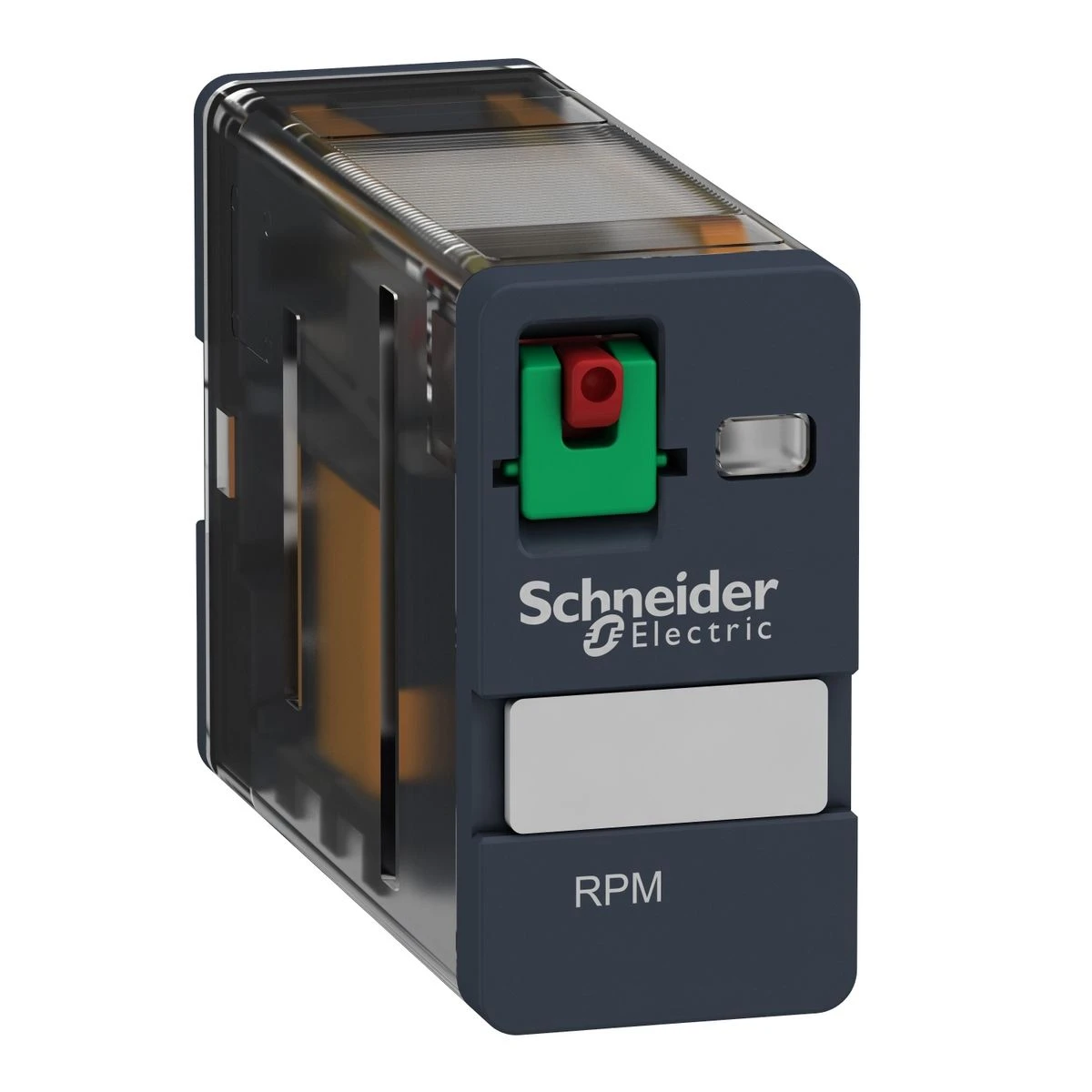

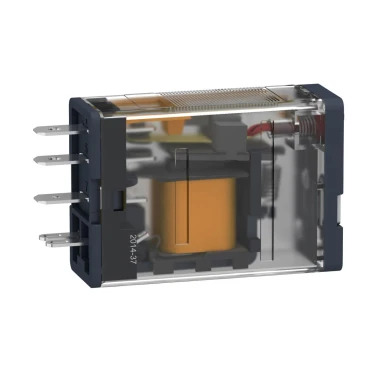

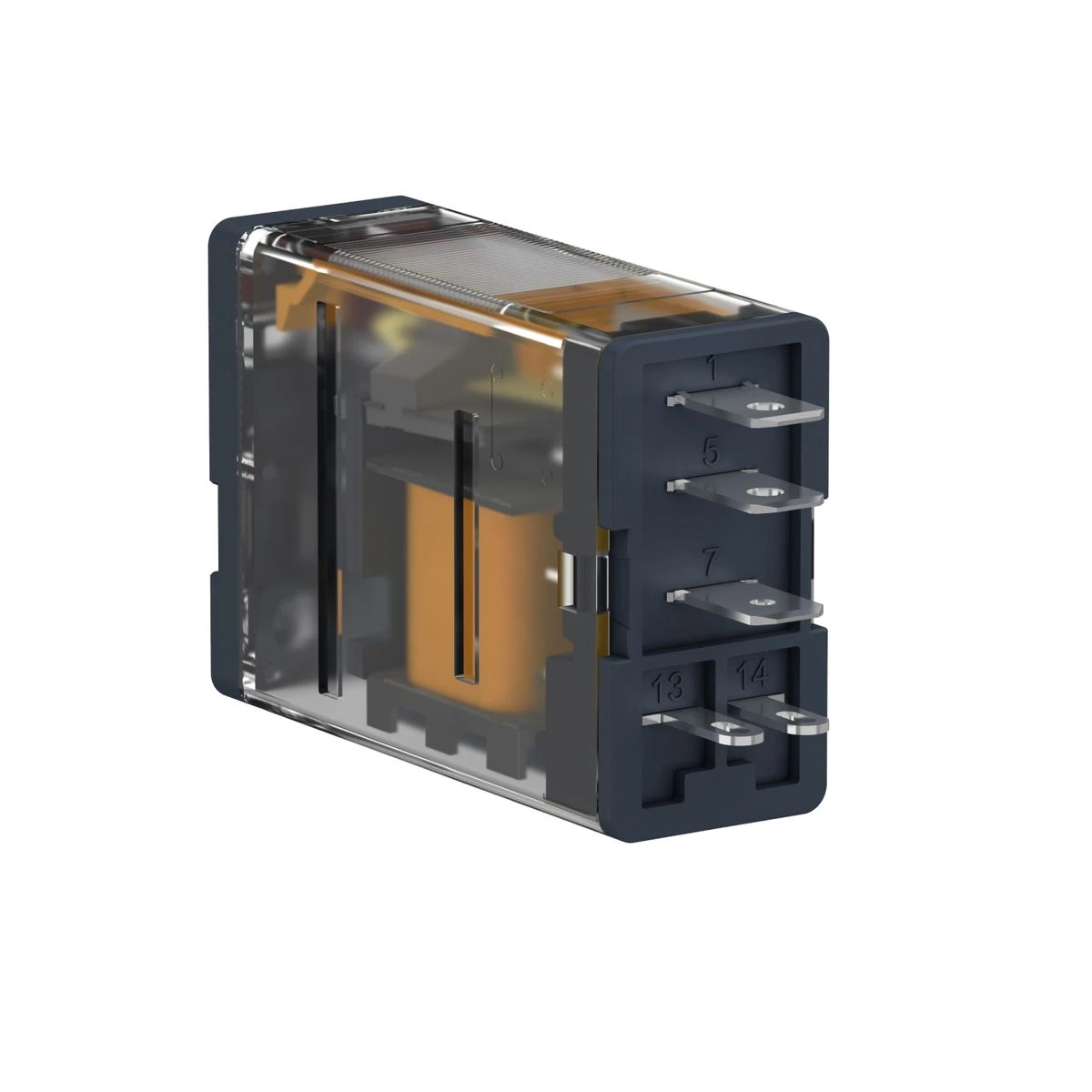

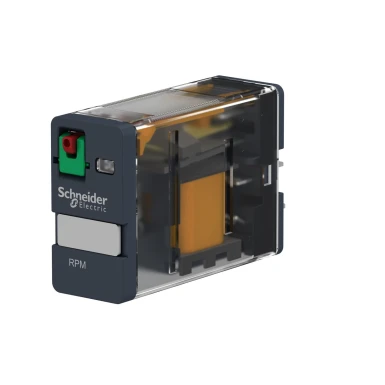

RPM11P7 - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC - Schneider Electric

Pending restock
RPM11P7 - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC - Schneider Electric - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC - Schneider Electric - 0
RPM11P7 - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC - Schneider Electric - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC - Schneider Electric - 1
RPM11P7 - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC - Schneider Electric - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC - Schneider Electric - 2
RPM11P7 - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC - Schneider Electric - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC - Schneider Electric - 3
RPM11P7 - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC - Schneider Electric
7,33 € excl. VAT
9,09 € incl. VAT
Text About:
Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC - Schneider Electric
9,09 €
SPECIFICATIONS
Main
Device short name RPM
[ithe] thermal current under enclosure 15 A at -40…55 °C
[uc] control circuit voltage 230 V AC 50/60 Hz
[ui] rated insulation voltage 250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
Series name Power
Complementary
[ie] rated operational current 15 A at 277 V (AC) conforming to UL
15 A at 28 V (DC) conforming to UL
15 A at 250 V (AC) NO conforming to IEC
15 A at 28 V (DC) NO conforming to IEC
7.5 A at 250 V (AC) NC conforming to IEC
7.5 A at 28 V (DC) NC conforming to IEC
Control type Lockable test button
Product certifications UL
EAC
CSA
Product or component type Plug-in relay
[uimp] rated impulse withstand voltage 4 kV during 1.2/50 µs
minimum switching capacity 170 mW at 10 mA, 17 V
protection category RT I
average coil consumption in va 1.6 at 60 Hz
Contacts material AgNi
Contacts type and composition 1 C/O
safety reliability data B10d = 100000
Net weight 0.026 kg
Operating position Any position
test levels Level A group mounting
mechanical durability 10000000 cycles
Rated operational voltage limits 184...253 V AC
electrical durability 100000 cycles for resistive load
Device presentation Complete product
average coil resistance 16270 Ohm at 20 °C +/- 15 %
Pollution degree 3
drop-out voltage threshold >= 0.15 Uc AC
Shape of pin Flat
Maximum switching capacity 3750 VA
420 W
Maximum switching voltage 250 V conforming to IEC
dielectric strength 1500 V AC between contacts with micro disconnection
2000 V AC between coil and contact with reinforced
Operate time 20 ms at nominal voltage
Operating rate <= 1200 cycles/hour under load
<= 18000 cycles/hour no-load
Resistive load current 15 A at 250 V AC
15 A at 28 V DC
Shock resistance 15 gn for in operation
30 gn for not operating
Release time 20 ms at nominal voltage
Status led Without
Utilisation coefficient 20 %
Environment
Ambient air temp for storage/transportation -40…85 °C
Range of product Harmony Electromechanical Relays
ambient air temperature for operation -40…55 °C
degree of protection (housing only) IP40 conforming to EN/IEC 60529
standards CSA C22.2 No 14
EN/IEC 61810-1
UL 508
vibration resistance 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
About this product

The RPM11P7 - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC is engineered to match the obligations of professional buyers, such as system integrators, electrical installers, support service firms, and Industry suppliers. RPM11P7 supplies exceptional robustness and worth for contractors in the control systems industry. This Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC and other Harmony RP/RXM/RUM/RSB from Schneider Electric can be acquired at the unbeatable price and fulfillment period through BALTELEC, a dependable dealer supplying practitioners in their sourcing needs.

Contractors who have opted for Schneider Electric Harmony RP/RXM/RUM/RSB have repeatedly approved the brand's soundness. It has been pointed out that the superior functionality of RPM11P7 - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC extends to a multitude of applications. Its high-end traits make it fitting for assorted uses, promoting success in your industrial, tertiary, and automation efforts.

BaltElec dedicates in meeting industrial and tertiary professionals’ needs. We know the unique specifications and expectations of our clients in the domain. By teaming up with our company, your organization gain access to the best charges and availability of premium products like RPM11P7 - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC from Schneider Electric at a budget-friendly price. Registered customers take advantage of exclusive discounts and dedicated support.

Don't wait and request RPM11P7 - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC at our reliable and accessible online store. Don't delay in making this astute move that confirms the ultimate quality and satisfies the targeted necessities of users like your enterprise.

Should there be any doubts or concerns about RPM11P7 - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC or any other Schneider Electric products, reach out to us or refer to our Help section section below. We have compiled answers to recurring issues to help you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, RPM11P7 - Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC from Schneider Electric is credible, value-priced, and premier to alternative suppliers in the Harmony RP/RXM/RUM/RSB category. Don't hesitate to make it a part of your setup now. Obtain at BALTELEC, your reliable source for all your professional electrical equipment and automation needs.

In our Baltelec.eu cyber store you will come across Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC - RPM11P7 worth 8.94 €, which will be a steadfast and fashionable solution for your demands. This goods is formulated by the Schneider Electric brand using the freshest technologies and adheres to the premier standards of safety and productivity. We supply things from the Harmony RP/RXM/RUM/RSB category that integrate robustness and workability, which is an top-notch preference for various applications. Without consideration of whether you require hardware for small manufacturing or for qualified industrial application, Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC will be a steadfast assistant in your undertaking.

Baltelec strives to make the securing process as accessible and fast as feasible for our consumers. We offer detailed accounts and high-quality snapshots of Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC so that you can make an advised choice. A team of pros is always ready to help you with any enquiries in the Harmony RP/RXM/RUM/RSB section associated to the nomination and use of equipment. We are confident that Harmony, Power plugin relay, 15 A, 1 CO, with lockable test button, 230 V AC will meet your requirements and become an crucial element of your device for just 8.94 €.

Frequently Raised Questions about Schneider Electric RPM11P7:
