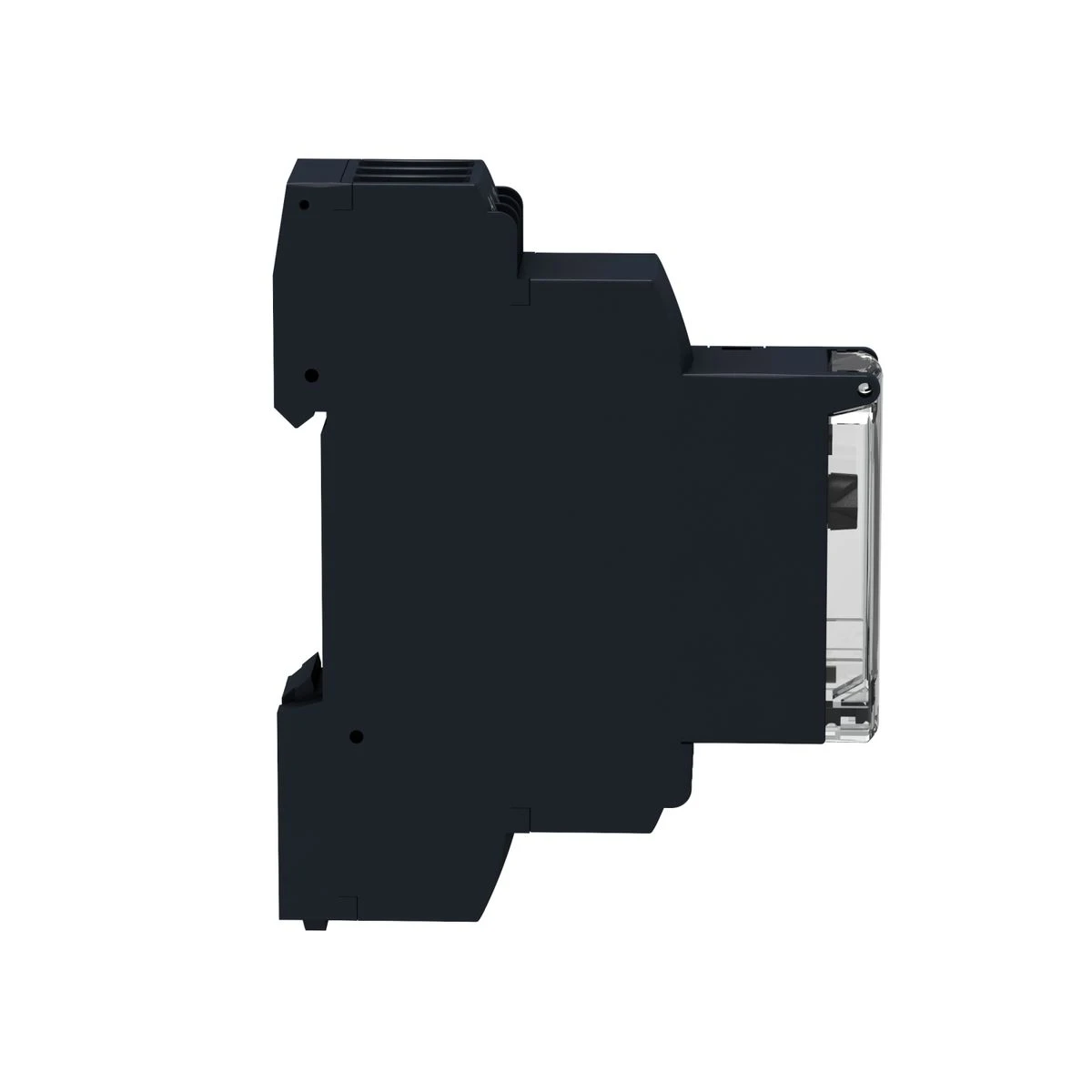

RE17RHMU - Harmony, Modular timing relay, 8 A, 1 CO, 1 s..100 h, on delay, 24 V DC / 24...240 V AC/DC - Schneider Electric

Expected in 2-4 weeks

RE17RHMU - Harmony, Modular timing relay, 8 A, 1 CO, 1 s..100 h, on delay, 24 V DC / 24...240 V AC/DC - Schneider Electric

42,60 € excl. VAT

51,97 € incl. VAT

Text About:

Harmony, Modular timing relay, 8 A, 1 CO, 1 s..100 h, on delay, 24 V DC / 24...240 V AC/DC - Schneider Electric

In cart

51,97 €

SPECIFICATIONS

Main

Device short name RE17R

Complementary

compatibility code RE17

[ics] rated service breaking capacity 2000 VA

Control type Selector switch front panel

maximum switching current 8 A AC/DC

Product certifications cULus
CSA
GL

Handle front plate colour 90 mm

Product or component type Dual function relay

tightening torque 0.6…1 N.m conforming to IEC 60947-1

[uimp] rated impulse withstand voltage 5 kV during 1.2/50 µs

[us] rated supply voltage 24...240 V AC 50/60 Hz
24 V DC

Connections - terminals Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end

minimum switching current 10 mA at 5 V DC

marking CE

reset time 120 ms on de-energisation typical

Contacts material Cadmium free

Contacts type and composition 1 C/O

safety reliability data B10d = 270000
MTTFd = 296.8 years

width (w) 17.5 mm

On-load factor 100 %

Creepage distance 4 kV/3 conforming to IEC 60664-1

Local signalling LED indicator for on steady: relay energised, no timing in progress
LED indicator for flashing: timing in progress 80 % ON and 20 % OFF
LED indicator for pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) 5 % ON and 95 % OFF

temperature drift +/- 0.05 %/°C

Net weight 0.07 kg

voltage drift +/- 0.2 %/V

Discrete output type Relay

functionality On-delay timing

Immunity to microbreaks 20 ms

Mounting support 35 mm DIN rail conforming to EN/IEC 60715

depth 72 mm

mechanical durability 10000000 cycles

electrical durability 100000 cycles (8 A at 250 V AC maximum) for resistive load

operating frequency 10 Hz

repeat accuracy +/- 0.5 % conforming to IEC 61812-1

control signal pulse width 100 ms with load in parallel typical
30 ms typical

Housing material Self-extinguishing

Power consumption in va 0…32 VA at 240 V AC

Time delay range 10...100 h
0.1...1 s
6...60 min
1...10 s
1...10 min
6...60 s
1...10 h

mounting position Any position in relation to normal vertical mounting plane

maximum power consumption in w 0.6 W at 24 V DC

Maximum switching voltage 250 V AC

dielectric strength 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1

Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27

Supply frequency 50...60 Hz +/- 5 %

Power on delay 100 ms

Release of input voltage 10 V

Nominal output current 8 A

Setting accuracy of time delay +/- 10 % of full scale at 25 °C conforming to IEC 61812-1

Time delay type H, Ht

Voltage range 0.85...1.1 Us

Environment

Ambient air temp for storage/transportation -30…60 °C

ip degree of protection IP20 (terminal block) conforming to IEC 60529
IP40 (housing) conforming to IEC 60529
IP50 (front panel) conforming to IEC 60529

Range of product Harmony Timer Relays

ambient air temperature for operation -20…60 °C

electromagnetic compatibility Electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2
Electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2
Susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4
1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5
Conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6
Voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11
Voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11
Conducted and radiated emissions: , class B, conforming to EN 55022

standards EN 61000-6-4
EN 61000-6-1
2006/95/EC
EN 61000-6-3
IEC 61812-1
2004/108/EC
EN 61000-6-2

relative humidity 93 % without condensation conforming to IEC 60068-2-30

vibration resistance 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6

insulation resistance 100 MOhm at 500 V DC conforming to IEC 60664-1
