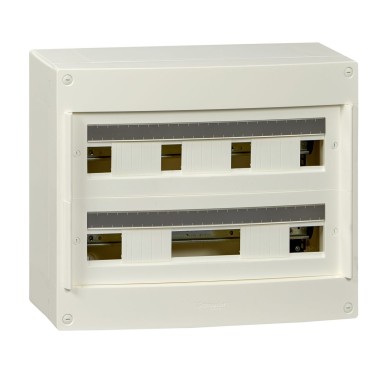

PRA10266W - Pragma - 2-row surface-mounting enclosure. 24 modules - 125A - without door - white - Schneider Electric

Upon request only EAN: 3606480496806

EAN: 3606480496806

Text About:

Pragma - 2-row surface-mounting enclosure. 24 modules - 125A - without door - white - Schneider Electric

SPECIFICATIONS

Main

number of 18mm modules per row 24

Range Pragma

splitter, comb, jdb compatibility Compatible XE

extensibility type Coffret de répartition

type of product or equipment Boîtier

type of door Sans

Complementary

9 mm pitches 48

electrical insulation class Double isolation
Classe II

departures from the splitter terminal 2 x 25 mm² pour terre
32 x 6 mm² pour terre
1 x 50 mm² pour terre

Handle front plate colour 450 mm

case material Partie arrière :techno plastique
Face avant :techno plastique
Partie arrière :métal
Face avant :métal

in rated operational current 125 A

cable entry Câble ou tube
Jonction
Plaques découpées
Plaques amovibles

installation of the box En saillie

width (w) 550 mm extérieur :

number of terminals 1 terre (rapide) avec 35 départs

Colour Habillage: blanc (RAL 9016)
Face avant: blanc (RAL 9016)

number of horizontal rows 2

total number of 18mm modules 48

target country Danemark
Belgique
France
Norvège

depth 148 mm

power dissipation in w 67 W

track type DIN

equipment provided 1xétiquette d'identification
1xkit de marquage
1xbornier
1xbande d'obturateur

Environment

ip degree of protection IP30 sans porte
IP40 avec porte

overvoltage category II

standards CEI 60670-1
CEI 60670-24
CEI 61439-1
CEI 61439-3

fire resistance Partie arrière :750 °C
Face avant :750 °C

shock resistance ik IK08 sans porte
IK09 avec porte

operating ambient air temperature -25…60 °C
