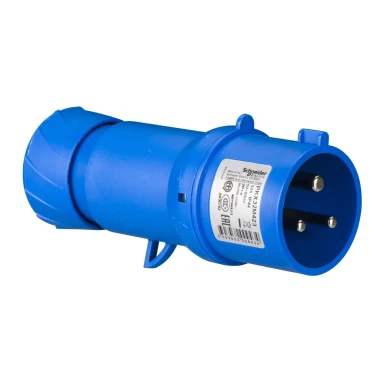

PKX32M423 - PratiKa wander plug straight 32 A 2P + E 200...250 V AC IP44 - Schneider Electric

Expected in 2-4 weeks

6,97 € excl. VAT

8,50 € incl. VAT

Text About:

PratiKa wander plug straight 32 A 2P + E 200...250 V AC IP44 - Schneider Electric

In cart

8,50 €

SPECIFICATIONS

Main

Device short name PratiKa plug

Outlet standard Industrial

Range PratiKa

Plug, socket category Low voltage

Complementary

[in] rated current 32 A

[ue] rated operational voltage 200...250 V

Cable cross section 2.5…6 mm²

Handle front plate colour 152 mm

Product or component type Wander plug

cable entry Cable gland
Fair lead

Connections - terminals Fast connection

cable outer diameter 11.5…21 mm

Contacts material Sleeves: brass

width (w) 76 mm

network frequency 50/60 Hz

Colour Grey (RAL 7035)

Ground lug clockwise position 6 h

Ik degree of protection IK08 conforming to EN 62262

Net weight 0.214 kg

depth 76 mm

Network type AC

Plug, socket material Housing: self-extinguishing engineering polymer

thread type Pg 21

Plug, socket, control station shape Straight

Voltage colour Blue

Poles description 2P + E

Environment

ip degree of protection IP44 conforming to IEC 60529

operating altitude 2000 m

ambient air temperature for operation 35 °C ( 86400 s )
-25…40 °C

standards IEC 60309-1
IEC 60309-2

fire resistance 850 °C conforming to IEC 60695-2-11

relative humidity 50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
