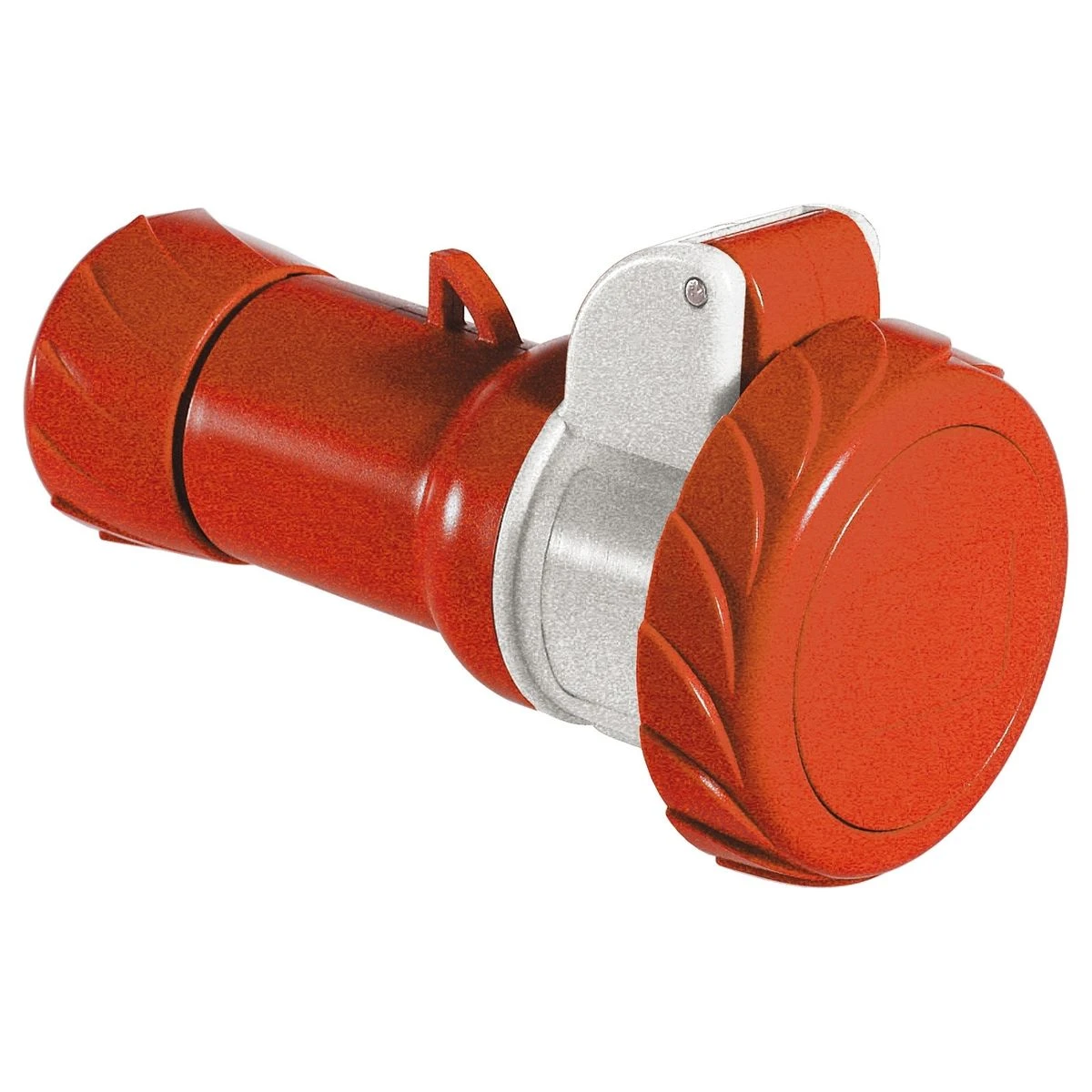

PKF32M7C4 - PratKa wander socket screw 32 A 3P+E 400..440 V 50/60Hz IP67 - Schneider Electric
Expected in 2-4 weeks
16,96 € excl. VAT
20,69 € incl. VAT
Text About:
PratKa wander socket screw 32 A 3P+E 400..440 V 50/60Hz IP67 - Schneider Electric
SPECIFICATIONS
Main
Device short name
PratiKa socket
Industrial socket type
Screw
Outlet standard
Industrial
Plug, socket category
Low voltage
Complementary
[in] rated current
32 A
[ue] rated operational voltage
400...440 V
Cable cross section
2.5…6 mm²
Handle front plate colour
99 mm
Product or component type
Wander socket
Connections - terminals
Screw terminal block
cable outer diameter
11.5…21 mm
Contacts material
Sleeves: brass
width (w)
99 mm
network frequency
50/60 Hz
Colour
Grey (RAL 7035)
Ground lug clockwise position
3 h
Ik degree of protection
IK08 conforming to EN 62262
Net weight
0.3 kg
depth
164 mm
Network type
AC
Plug, socket material
Housing: self-extinguishing engineering polymer
Voltage colour
Red
Poles description
3P + E
Environment
ip degree of protection
IP67 conforming to IEC 60529
Range of product
PratiKa
ambient air temperature for operation
-25…40 °C
35 °C ( 86400 s )
35 °C ( 86400 s )
standards
EN 60309-1
EN 60309-2
EN 60309-2
fire resistance
850 °C conforming to IEC 60695-2-1
relative humidity
50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
70 % at 30 °C
90 % at 20 °C
