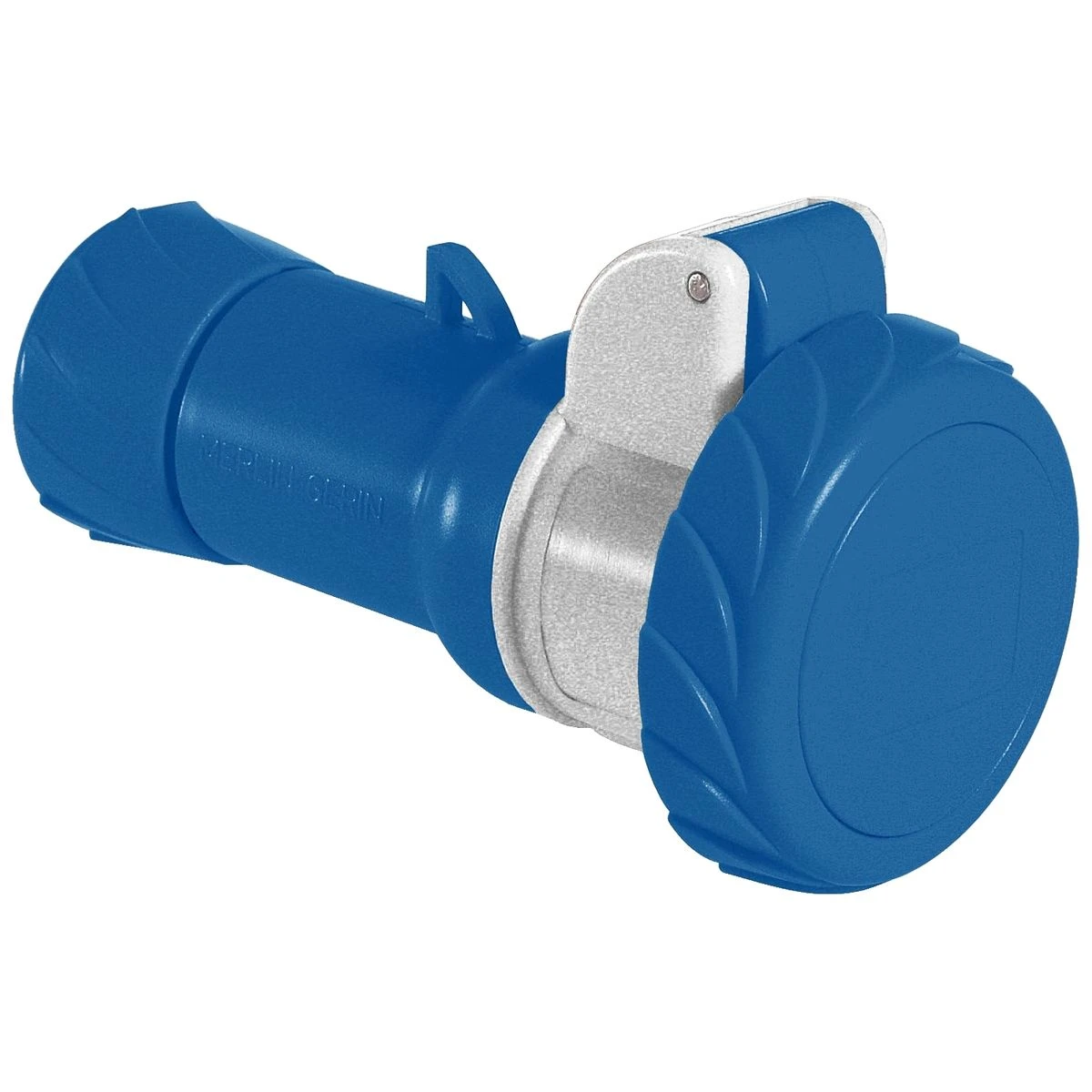

PKF32M724 - PratiKa wander socket straight 32 A 3P + E 200...250 V AC IP67 - Schneider Electric

Expected in 2-4 weeks

17,09 €

Text About:

PratiKa wander socket straight 32 A 3P + E 200...250 V AC IP67 - Schneider Electric

In cart

17,09 €

SPECIFICATIONS

Main

Device short name PratiKa screw

Outlet standard Industrial

Range PratiKa

Plug, socket category Low voltage

Complementary

[in] rated current 32 A

[ue] rated operational voltage 200...250 V

Cable cross section 2.5…10 mm²

Handle front plate colour 99 mm

Product or component type Wander socket

cable entry Cable gland

Connections - terminals Captive screws

cable outer diameter 11.5…21 mm

Contacts material Sleeves: brass

width (w) 99 mm

network frequency 50/60 Hz

Colour Grey (RAL 7035)

Ground lug clockwise position 9 h

Ik degree of protection IK08 conforming to EN 62262

Net weight 0.3 kg

depth 164 mm

Network type AC

Plug, socket material Housing: self-extinguishing engineering polymer

thread type Pg 21

Plug, socket, control station shape Straight

Voltage colour Blue

Poles description 3P + E

Environment

ip degree of protection IP67 conforming to IEC 60529

ambient air temperature for operation 35 °C ( 86400 s )
-25…40 °C

standards IEC 60309-2
IEC 60309-1

fire resistance 850 °C conforming to IEC 60695-2-1

relative humidity 50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
