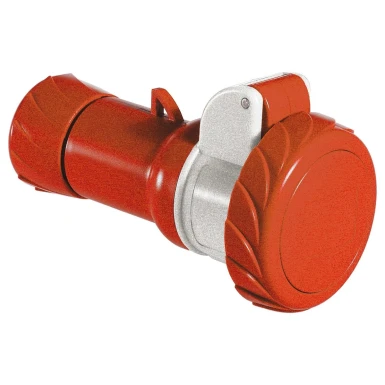

PKF16M734 - PratiKa wander socket straight 16 A 3P + E 380...415 V AC IP67 - Schneider Electric

Expected in 2-4 weeks

11,93 € excl. VAT

14,55 € incl. VAT

Text About:

PratiKa wander socket straight 16 A 3P + E 380...415 V AC IP67 - Schneider Electric

In cart

14,55 €

SPECIFICATIONS

Main

Device short name PratiKa screw

Outlet standard Industrial

Range PratiKa

Plug, socket category Low voltage

Complementary

[in] rated current 16 A

[ue] rated operational voltage 380...415 V

Cable cross section 1…4 mm²

Handle front plate colour 87 mm

Product or component type Wander socket

cable entry Cable gland

Connections - terminals Captive screws

cable outer diameter 8…15 mm

Contacts material Sleeves: brass

width (w) 87 mm

network frequency 50/60 Hz

Colour Grey (RAL 7035)

Ground lug clockwise position 6 h

Ik degree of protection IK08 conforming to EN 62262

Net weight 0.2 kg

depth 152 mm

Network type AC

Plug, socket material Housing: self-extinguishing engineering polymer

thread type Pg 21

Plug, socket, control station shape Straight

Voltage colour Red

Poles description 3P + E

Environment

ip degree of protection IP67 conforming to IEC 60529

ambient air temperature for operation 35 °C ( 86400 s )
-25…40 °C

standards IEC 60309-1
IEC 60309-2

fire resistance 850 °C conforming to IEC 60695-2-1

relative humidity 50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
