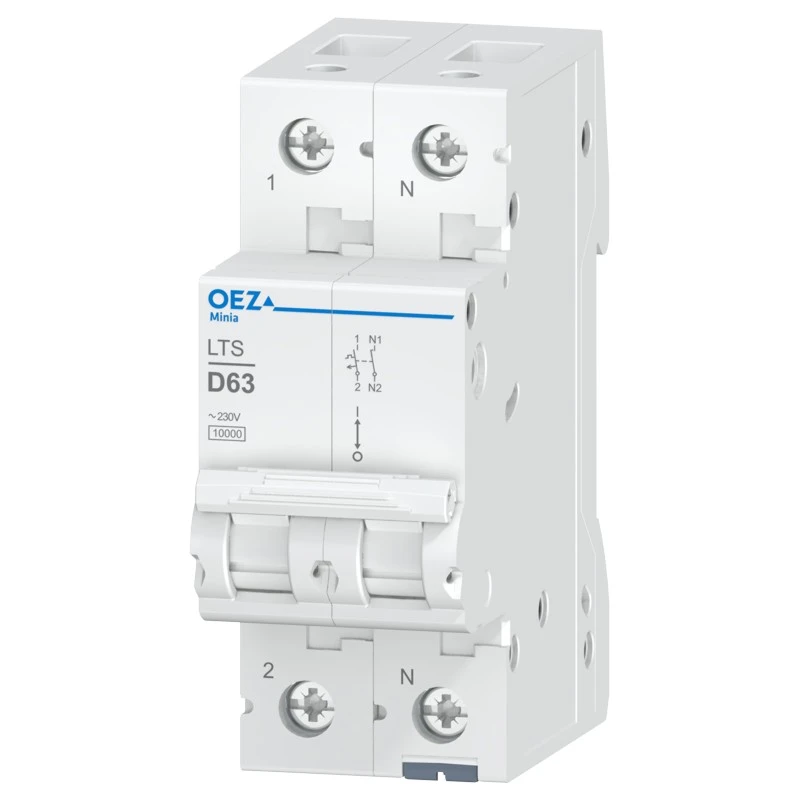

OEZ:42034 - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA - OEZ

Pending restock
OEZ:42034 - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA - OEZ - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA - OEZ - 0
OEZ:42034 - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA - OEZ - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA - OEZ - 1
OEZ:42034 - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA - OEZ
17,05 € excl. VAT
21,14 € incl. VAT
Text About:
In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA - OEZ
21,14 €
SPECIFICATIONS
Additional Information
curve D
Main
Number of modules 2
Number of protected poles 1
degree of protection IP20
Complementary
Ambient temperature max. 55 °C
Basic package 6 pcs
Connection cross-section cu (solid) max. 35 mm2
[in] rated current 63 A
Ambient temperature min. -25 °C
Collated package - pcs
Connection cross-section cu (solid) min. 0,75 mm2
Energy limitation class -
Mounting on DIN rail
Country of origin RO
Depth (netto) 79,7 mm
Max. rated voltage ac 250 V
Handle front plate colour 89,8 mm
Max. rated voltage dc 72 V
Min. rated voltage ac 24 V
Min. rated voltage dc 24 V
Rated insulation voltage AC 250 V
Possibility of additional device YES
Rated operating voltage ac 230 V
mechanical endurance 10000 cycles
width (w) 35,2 mm
Rated frequency max. 60 Hz
Rated frequency min. 50 Hz
Rated short-circuit breaking capacity / ac 230 v 10 kA
Rated operating voltage dc 72 V
Rated short-circuit ultimate breaking capacity / 230 v 10 kA
Simultaneously switched n conductor YES
Pollution degree 2
Voltage type AC/DC
Poles description 1+N
Environment
Al N
Electrical endurance 10000 cycles
Pck 3860
overvoltage category III
Customs tariff 85362010
Eccn N
climatic resistance 6 cycles
About this product

The OEZ:42034 - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA is designed to accommodate the demands of business buyers, such as panel manufacturers, electric engineers, support service firms, and Industry suppliers. OEZ:42034 furnishes remarkable reliability and asset for contractors in the electromechanical industry. This In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA and other Circuit Brakers from OEZ are in stock at the most economical price and shipment duration through BALTELEC.EU, a respected supplier aiding technicians in their acquisition needs.

Contractors who have bought OEZ Circuit Brakers have habitually commended the brand's trustworthiness. It has been stated that the superlative energy-efficiency of OEZ:42034 - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA extends to a extensive scope of operations. Its supreme specifications make it ideal solution to cater to varied requirements, ensuring your industrial, tertiary and automation projects success.

Our specialists commits in meeting industrial and tertiary professionals’ needs. We get the particular demands and demands of our customers in the sector. By working with our specialists, your team get access to the superior rates and stock of top-tier products like OEZ:42034 - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA from OEZ at an economical price. Registered customers receive added discounts and exclusive assistance.

Make a move and order OEZ:42034 - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA at our secure and easy-to-use online store. Don't delay in making this thoughtful resolution that affirms the supreme quality and meets the defined necessities of traders like your company.

If you encounter any concerns or concerns about OEZ:42034 - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA or any other OEZ products, reach out to us or refer to our Common Questions section below. We have assembled answers to regular queries to serve you further in making an considered decision about industrial and tertiary electrical components.

Remember, OEZ:42034 - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA from OEZ is trustworthy, low-cost, and superior to alternative suppliers in the Circuit Brakers category. Don't hesitate to make it a part of your inventory this moment. Buy at BALTELEC, your esteemed seller for all your OEZ.

In our Baltelec.eu web store you will find In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA - OEZ:42034 worth 20.80 €, which will be a sure and up-to-date solution for your needs. This object is formulated by the OEZ brand using the state-of-the-art technologies and obeys the uppermost standards of well-being and competence. We offer products from the Circuit Brakers category that amalgamate robustness and operability, which is an outstanding selection for various purposes. In defiance of whether you crave appliances for small manufacturing or for adept industrial operation, In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA will be a trustworthy aid in your endeavor.

Baltelec labors to make the procuring process as straightforward and fast as workable for our purchasers. We offer detailed reports and high-quality photographs of In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA so that you can make an well-informed choice. A team of adepts is always ready to help you with any concerns in the Circuit Brakers section relevant to the determining and use of articles. We are sure that In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA will meet your hopes and become an key element of your equipment for just 20.80 €.

FAQ about OEZ:42034:

  • Why should I order OEZ OEZ:42034 from Baltelec.eu online store?

    When you buy OEZ:42034 - In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA from BALTELEC, you receive original high-quality OEZ Circuit Brakers products at the most favorable cost and delivery period. Additionally, our partnersreceive further discounts and first-class attention.

  • OEZ OEZ:42034 meets the specification of my undertaking?

    To make sure that OEZ OEZ:42034 matches your technical requirements, we provide detailed details pertaining to product's specs, features, and applicable standards. You can find this data on the dedicated page of the product model. If you seek additional help, our customer service representative is available to aid you in reaching an informed choice.

  • What guarantee coverage is offered for OEZ:42034?

    BaltElec online store emphasizes the quality of the items we sell. The standard guarantee coverage for OEZ Circuit Brakers including OEZ In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA is 1 year. Nonetheless, it varies depending on the individual product, category, and could be extended. You can find comprehensive warranty details on the OEZ In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA dedicated page or by getting in touch with our customer support team.

  • Can you provide international shipping for OEZ In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA and other OEZ items?

    Yes. Apart from serving Estonia, Latvia, Lithuania and other European Union countries, we provide worldwide shipping for OEZ:42034. Please keep in mind that delivery options, fees, and shipping times might differ depending on the destination. For bulk orders, kindly contact BaltElec sales representatives.

  • Do OEZ MBC provided by BALTELEC adhere to global norms for security and quality?

    Completely. All OEZ products available at BALTELEC online store adhere to global standards such as IEC 60898-1 and carry the CE mark. Such standards assure that the products fulfill stringent security, technological, dependability, and performance criteria.

  • Can BaltElec offer guidance on integrating renewable energy solutions, such as solar power systems or wind power converters, into my projects?

    Yes!  Baltelec.eu recognizes the significance of renewable energy integration within projects. Our team of experts can support you in choosing the right OEZ products, to integrate them into your renewable energy projects}. We can provide guidance on integrating solar energy systems, wind energy converters, and other sustainable options to optimize power generation and effectiveness.

  • Are there green options offered within the Circuit Brakers category to promote green energy initiatives?

    Definitely!Yes! Baltelec website provides various green solutions in the category of Circuit Brakers that are aligned with green energy initiatives. Our brand's OEZ products, such as the OEZ:42034, are engineered with environmental friendliness in mind. By incorporating these products into your electrical system, you can maximize energy usage and lower environmental impact. Additionally, we offer competitive pricing for our energy-efficient OEZ products,, making them an budget-friendly choice for advocating sustainability.

  • Are OEZ:42034 offered by BaltElec e-shop authentic?

    Absolutely, we solely provide original OEZ products, including but not limited to In 63 A, Ue AC 230 V / DC 60 V, characteristic D, 1+N-pole, Icn 10 kA. We source our products exclusively through authorized distribution channels to assure their genuineness and excellent quality.
