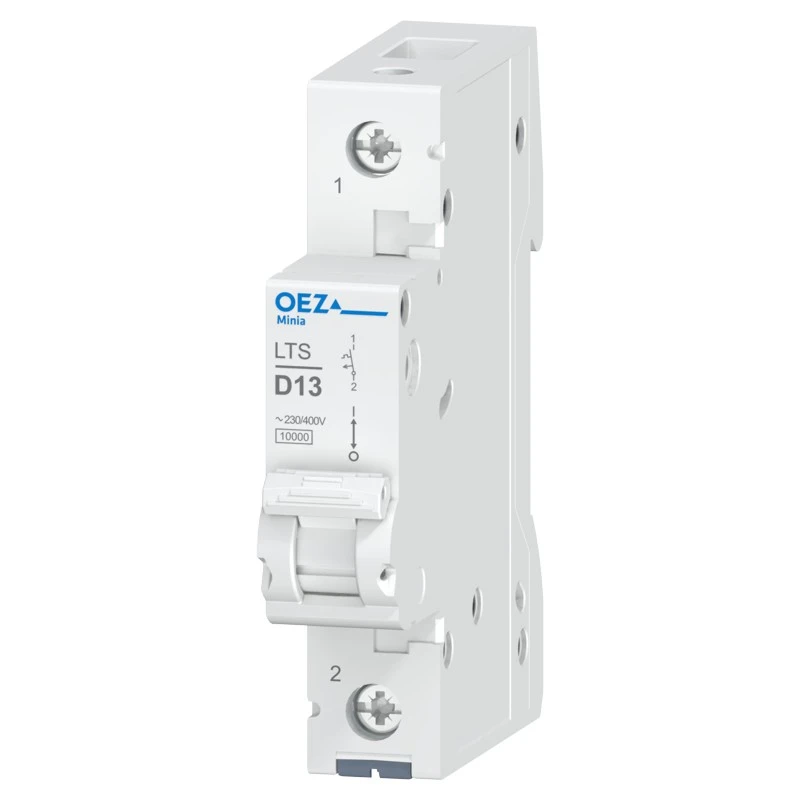

OEZ:41992 - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA - OEZ

Pending restock
OEZ:41992 - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA - OEZ - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA - OEZ - 0
OEZ:41992 - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA - OEZ - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA - OEZ - 1
OEZ:41992 - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA - OEZ
6,18 € excl. VAT
7,66 € incl. VAT
Text About:
In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA - OEZ
7,66 €
SPECIFICATIONS
Additional Information
curve D
Main
Number of modules 1
Number of protected poles 1
degree of protection IP20
Complementary
Ambient temperature max. 55 °C
Basic package 12 pcs
Connection cross-section cu (solid) max. 35 mm2
[in] rated current 13 A
Ambient temperature min. -25 °C
Collated package - pcs
Connection cross-section cu (solid) min. 0,75 mm2
Energy limitation class -
Mounting on DIN rail
Country of origin RO
Depth (netto) 79,7 mm
Max. rated voltage ac 250/440 V
Handle front plate colour 89,8 mm
Max. rated voltage dc 72 V
Min. rated voltage ac 24 V
Min. rated voltage dc 24 V
Rated insulation voltage AC 250 V
Possibility of additional device YES
Rated operating voltage ac 230 V
mechanical endurance 10000 cycles
width (w) 17,6 mm
Rated frequency max. 60 Hz
Rated frequency min. 50 Hz
Rated short-circuit breaking capacity / ac 230 v 10 kA
Rated operating voltage dc 72 V
Rated short-circuit ultimate breaking capacity / 230 v 10 kA
Simultaneously switched n conductor NO
Pollution degree 2
Voltage type AC/DC
Poles description 1
Environment
Al N
Electrical endurance 10000 cycles
Pck 3860
overvoltage category III
Customs tariff 85362010
Eccn N
climatic resistance 6 cycles
About this product

The OEZ:41992 - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA is engineered to cover the prerequisites of sector experts, such as control panel builders, cable technicians, facility management firms, and original producers. OEZ:41992 yields exceptional durability and utility for technicians in the power engineering industry. This In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA and other Circuit Brakers from OEZ are on offer at the optimal price and distribution time through BALTELEC.EU, a well-known distributor catering to technicians in their procurement needs.

Engineers who have selected OEZ Circuit Brakers have habitually lauded the maker's robustness. It has been outlined that the remarkable efficiency of OEZ:41992 - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA extends to a broad spectrum of applications. Its first-rate components make it proper pick to satisfy a wide array of needs, assuring the success of your industrial, tertiary, and automation ventures.

Our company concentrates in providing for industrial and tertiary professionals’ needs. We grasp the particular specifications and desires of our customers in the market. By collaborating with our company, our customers acquire access to the finest rates and availability of first-rate products like OEZ:41992 - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA from OEZ at an affordable price. Registered users appreciate extra discounts and top-tier service.

Seize the moment and secure OEZ:41992 - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA at our reliable and intuitive online portal. Don't delay in making this smart selection that promises the finest quality and fulfills the individual needs of suppliers like your business.

Should you have any queries or concerns about OEZ:41992 - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA or any other OEZ products, drop us a line or refer to our Common Questions section below. We have brought together answers to common requests for information to facilitate you further in making an well-informed decision about industrial and tertiary electrical components.

Remember, OEZ:41992 - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA from OEZ is trustworthy, low-cost, and elite to other producers in the Circuit Brakers category. Feel free to make it a part of your electrical system right now. Obtain at Baltelec webstore, your faithful dealer for all your Circuit Brakers.

In our Baltelec.eu online store you will come across In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA - OEZ:41992 worth 7.54 €, which will be a dependable and up-to-date solution for your wishes. This article is constructed by the OEZ brand using the most recent technologies and conforms to the uppermost standards of assurance and competence. We extend produce from the Circuit Brakers category that mix durability and usefulness, which is an outstanding pick for various roles. In spite of whether you require devices for small assembly or for specialized industrial application, In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA will be a safe aid in your undertaking.

Baltelec efforts to make the purchasing process as comfortable and fast as viable for our users. We offer detailed reports and high-quality snapshots of In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA so that you can make an educated choice. A team of maestros is always ready to help you with any concerns in the Circuit Brakers section related to the determining and use of articles. We are assured that In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA will meet your prospects and become an important element of your hardware for just 7.54 €.

Common Queries about OEZ OEZ:41992:

  • Why should I order OEZ:41992 from Baltelec.eu online store?

    When buying OEZ OEZ:41992 from baltelec.eu, you will get genuine high-quality OEZ Circuit Brakers products at the most favorable cost and turnaround time. Additionally, registered professionalsreceive further discounts and expedited requests handling.

  • OEZ OEZ:41992 suits for my needs?

    To make sure that OEZ:41992 - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA is suitable for your drawings, we offer comprehensive details pertaining to product's specifications, technical characteristics, and compatibility. You can find this data on the product page of the item model. If you require more guidance, our support team representative stands ready to assist you in reaching an educated decision.

  • What guarantee coverage is offered for OEZ:41992?

    BALTELEC is committed to the excellence of the products we offer. The default warranty coverage for OEZ Circuit Brakers including OEZ:41992 is 12 months. Nonetheless, it depends according to the individual product, category, and may even be extended. You can find specific guarantee details on the OEZ In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA product page or by getting in touch with our customer support team.

  • Can you arrange global shipping for OEZ:41992 including other OEZ items?

    Certainly. Besides serving Estonia, Latvia, Lithuania and other European Union countries, we offer global shipping for OEZ:41992 - In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA. However that shipping options, fees, and delivery times can vary based on the shipping location. In the case of complex acquisitions, feel free to reach out to BALTELEC sales staff.

  • Do OEZ MBC provided by Baltelec.eu adhere to international norms for security and quality?

    Certainly. All OEZ products provided at Baltelec.eu online store adhere to global norms such as IEC 60898-1 standard and carry the CE certification. Such standards ensure that the items fulfill stringent security, technological, reliability, and performance requirements.

  • Can BaltElec offer assistance on integrating renewable energy solutions, such as solar energy systems or wind energy converters, into my projects?

    Certainly!  BaltElec recognizes the importance of sustainable energy integration within community. Our group of specialists can assist you in selecting the right OEZ items, to incorporate them into your renewable energy solutions}. We can provide advice on combining solar energy systems, wind energy converters, and additional eco-friendly options to optimize power generation and efficiency.

  • Are there green options available within the Circuit Brakers category to encourage environmental sustainability?

    Absolutely! Baltelec.eu online store provides numerous energy-efficient solutions within the Circuit Brakers category that are in line with green energy initiatives. Our OEZ products, like the OEZ:41992, are designed with energy conservation in mind. By using these products into your electrical system, you can enhance energy usage and reduce environmental impact. Additionally, we provide affordable pricing for our energy-efficient OEZ products,, making them an cost-effective choice for advocating sustainability.

  • Are OEZ:41992 available by Baltelec online store authentic?

    Indeed, we only offer original OEZ products, including In 13 A, Ue AC 230/400 V / DC 60 V, characteristic D, 1-pole, Icn 10 kA. We procure our products only through legitimate distribution channels to ensure their authenticity and excellent standards.
