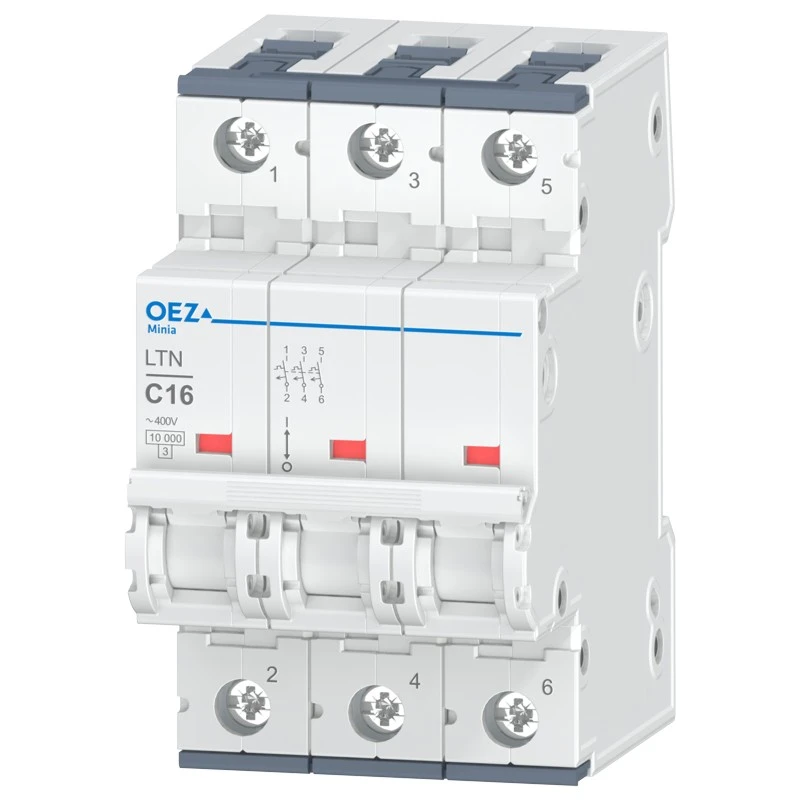

OEZ:41789 - In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA - OEZ

Pending restock
OEZ:41789 - In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA - OEZ - In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA - OEZ - 0
OEZ:41789 - In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA - OEZ - In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA - OEZ - 1
OEZ:41789 - In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA - OEZ
21,78 € excl. VAT
27,01 € incl. VAT
Text About:
In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA - OEZ
27,01 €
SPECIFICATIONS
Additional Information
curve C
Main
Number of modules 3
Number of protected poles 3
degree of protection IP20
Complementary
Ambient temperature max. 55 °C
Basic package 4 pcs
Connection cross-section cu (solid) max. 35 mm2
[in] rated current 16 A
Ambient temperature min. -25 °C
Collated package - pcs
Connection cross-section cu (solid) min. 0,75 mm2
Energy limitation class 3
Mounting on DIN rail
Country of origin DE
Depth (netto) 80,3 mm
Max. rated voltage ac 250/440 V
Handle front plate colour 89,8 mm
Max. rated voltage dc 72 V
Min. rated voltage ac 24 V
Min. rated voltage dc 24 V
Rated insulation voltage AC 250/440 V
Possibility of additional device YES
Rated operating voltage ac 230/400 V
mechanical endurance 10000 cycles
width (w) 52,8 mm
Rated frequency max. 60 Hz
Rated frequency min. 50 Hz
Rated short-circuit breaking capacity / ac 230 v 10 kA
Rated operating voltage dc 216 V
Rated short-circuit ultimate breaking capacity / 230 v 20 kA
Simultaneously switched n conductor NO
Pollution degree 2
Voltage type AC/DC
Poles description 3
Environment
Al N
Electrical endurance 10000 cycles
Pck 3885
overvoltage category III
Customs tariff 85362010
Eccn N
climatic resistance 6 cycles
About this product

The OEZ:41789 - In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA is devised to accommodate the needs of specialized professionals, such as panel builders, electrical installers, management services, and primary equipment makers. OEZ:41789 yields exceptional standards and merit for technicians in the electromechanical industry. This In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA and other Circuit Brakers from OEZ are on offer at the lowest cost and turnaround time through baltelec.eu, an independent merchant fulfilling the needs of engineers in their supply needs.

Customers who have adopted OEZ Circuit Brakers have regularly praised the manufacturer’s stability. It has been noted that the notable workmanship of OEZ:41789 - In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA extends to a array of functions. Its first-rate characteristics make it great solution for different applications, promoting success in your industrial, tertiary, and automation efforts.

BALTELEC dedicates in accommodating industrial and tertiary professionals’ needs. We appreciate the individual standards and desires of our patrons in the industry. By teaming up with our professionals, your enterprise access access to the best fees and inventory of high-quality products like OEZ:41789 - In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA from OEZ at an attractive price. Baltelec account members receive additional savings and expedited requests handling.

Begin today and secure OEZ:41789 - In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA at our trusted and convenient digital marketplace. Don't delay in making this prudent option that warrants the utmost quality and covers the specific needs of users like you.

If there are any concerns or concerns about OEZ:41789 - In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA or any other OEZ products, email us or refer to our FAQ section section below. We have assembled answers to frequent requests for information to facilitate you further in making an knowledgeable decision about industrial and tertiary electrical components.

Remember, OEZ:41789 - In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA from OEZ is unfailing, affordable, and superior to opposing companies in the Circuit Brakers category. Feel free to make it a part of your solution this moment. Procure at Baltelec e-shop, your faithful dealer for all your Circuit Brakers.

In our Baltelec.eu virtual store you will locate In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA - OEZ:41789 worth 26.57 €, which will be a steadfast and contemporary solution for your necessities. This product is designed by the OEZ brand using the modern technologies and follows the premier standards of guarding and capacity. We provide items from the Circuit Brakers category that mix strength and utility, which is an top-notch election for various intents. Without consideration of whether you want machinery for small fabrication or for expert industrial purpose, In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA will be a constant associate in your job.

Baltelec aims to make the attaining process as effortless and fast as feasible for our clients. We offer detailed outlines and high-quality images of In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA so that you can make an aware choice. A team of maestros is always ready to help you with any matter in the Circuit Brakers section connected to the picking and use of commodities. We are convinced that In 16 A, Ue AC 230/400 V / DC 216 V, characteristic C, 3-pole, Icn 10 kA will meet your prospects and become an key element of your machinery for just 26.57 €.
