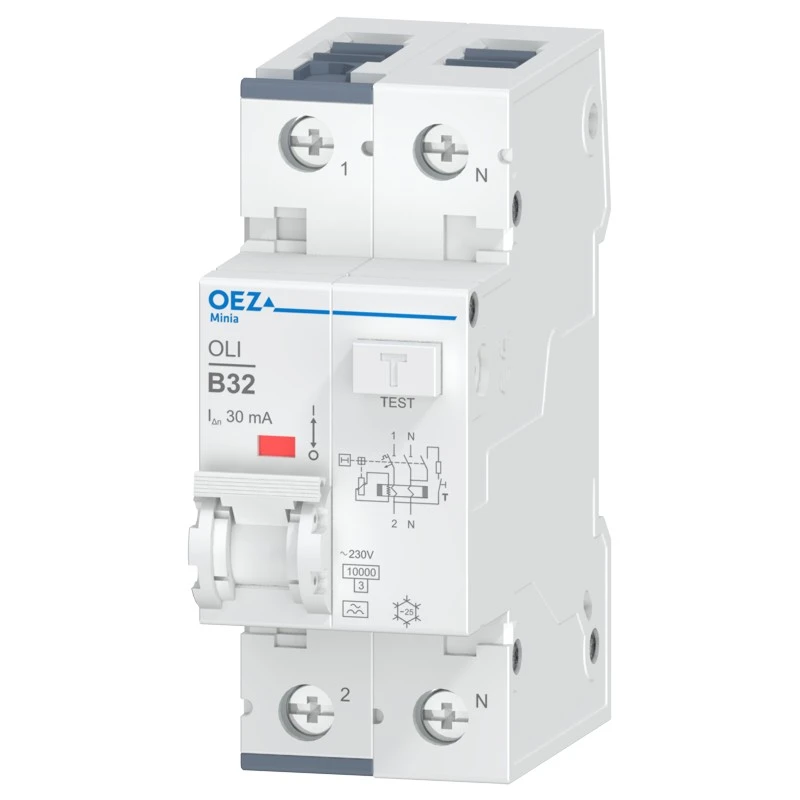

OEZ:38297 - In 32 A, Ue AC 230 V, characteristic B, Idn 30 mA, 1+N-pole, Icn 10 kA, type A - OEZ

Upon request only
OEZ:38297 - In 32 A, Ue AC 230 V, characteristic B, Idn 30 mA, 1+N-pole, Icn 10 kA, type A - OEZ - In 32 A, Ue AC 230 V, characteristic B, Idn 30 mA, 1+N-pole, Icn 10 kA, type A - OEZ - 0
OEZ:38297 - In 32 A, Ue AC 230 V, characteristic B, Idn 30 mA, 1+N-pole, Icn 10 kA, type A - OEZ - In 32 A, Ue AC 230 V, characteristic B, Idn 30 mA, 1+N-pole, Icn 10 kA, type A - OEZ - 1
OEZ:38297 - In 32 A, Ue AC 230 V, characteristic B, Idn 30 mA, 1+N-pole, Icn 10 kA, type A - OEZ - In 32 A, Ue AC 230 V, characteristic B, Idn 30 mA, 1+N-pole, Icn 10 kA, type A - OEZ - 0
OEZ:38297 - In 32 A, Ue AC 230 V, characteristic B, Idn 30 mA, 1+N-pole, Icn 10 kA, type A - OEZ - In 32 A, Ue AC 230 V, characteristic B, Idn 30 mA, 1+N-pole, Icn 10 kA, type A - OEZ - 1
OEZ:38297 - In 32 A, Ue AC 230 V, characteristic B, Idn 30 mA, 1+N-pole, Icn 10 kA, type A - OEZ
Text About:
In 32 A, Ue AC 230 V, characteristic B, Idn 30 mA, 1+N-pole, Icn 10 kA, type A - OEZ
SPECIFICATIONS
Additional Information
curve B
Main
Number of modules 2
Number of protected poles 1
degree of protection IP20
sensitivity to earth leakage 30 mA
Complementary
Ambient temperature max. 40 °C
Basic package 1 pcs
Connection cross-section cu (solid) max. 35 mm2
[in] rated current 32 A
Ambient temperature min. -25 °C
Collated package - pcs
Connection cross-section cu (solid) min. 0,75 mm2
Energy limitation class 3
Mounting on DIN rail
[ics] rated service breaking capacity 10 kA
Country of origin RO
Depth (netto) 80,3 mm
Max. rated voltage ac 255 V
Handle front plate colour 90 mm
Min. rated voltage ac 100 V
Rated frequency 50/60 Hz
Rated operating voltage AC 230 V
Rated operating voltage ac 230 V
mechanical endurance 10000 cycles
width (w) 36 mm
Rated short-circuit breaking capacity / ac 230 v 10 kA
Release delay NO
Switched n-pole YES
Network type A
Poles description 2
Environment
Al N
Electrical endurance 10000 cycles
Pck 3862
Customs tariff 85363030
Eccn N
Q&A and product info

Contact Us

Professional sales of electrical equipment in Estonia, Latvia, Lithuania, and Finland. Certified low-voltage components, circuit breakers, contactors, and industrial automation solutions. Same-day quotations and fast delivery across the Baltics and Finland.

Baltelec
+372 5326 4976

Mon–Fri 9:00–17:00

info@baltelec.eu

Response within 2 hours

OEZ:38297 is a professional Residual current circuit breaker with integrated overcurrent protection (RCBO) solution designed for professionals. BaltElec specializes in wholesale and supply in Estonia, Latvia, Lithuania, and Finland.

  • Original OEZ product, documentation available on request.
  • Volume-based pricing – request a quote for larger quantities (MOQ may apply).
  • Fast delivery across the Baltics and Finland; cooperation with trusted couriers.
  • Technical support and application suitability advice based on your requirements.

Pricing: Request a project quote. The price depends on quantity, delivery, and payment terms.

Residual current circuit breaker with integrated overcurrent protection (RCBO) specifications may vary by configuration. For an exact match, please send us your requirements or check the technical data sheet.
