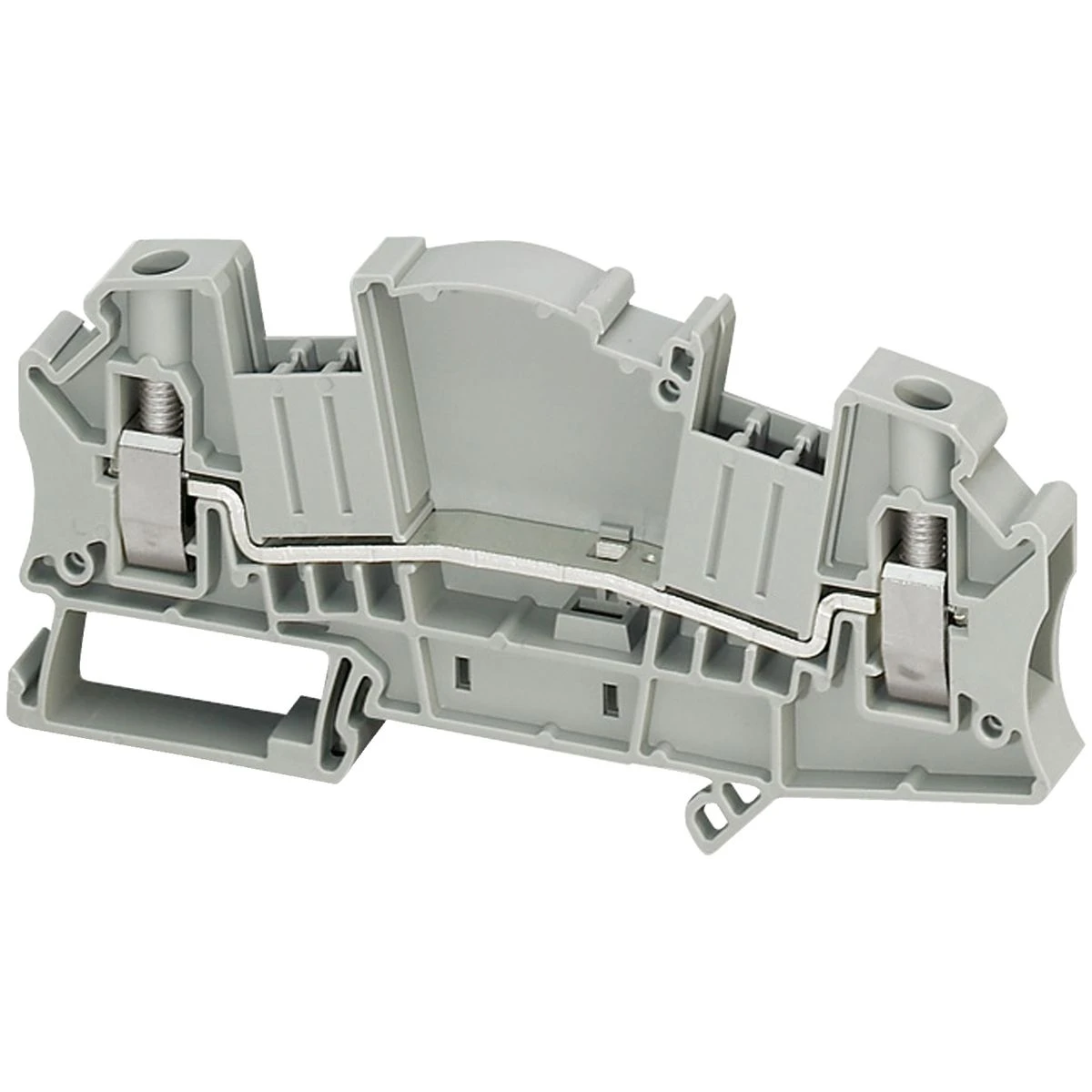

NSYTRV62TT - SCREW TERMINAL, FEED THROUGH, MEASURING TRANSDUCER, 2 POINTS, 6MMІ, G - Schneider Electric
Expected in 2-4 weeks
8,09 €
Text About:
SCREW TERMINAL, FEED THROUGH, MEASURING TRANSDUCER, 2 POINTS, 6MMІ, G - Schneider Electric
SPECIFICATIONS
Main
Accessory category
Connection accessory
Device short name
TRV
Range
Linergy
Product Name
Linergy TR
Terminal block level
1
nominal cross section
6 mm²
Complementary
product compatibility
Spacial enclosures
[in] rated current
30 A conforming to EN/IEC 60947-7-1
30 A cURus
30 A CSA
30 A cURus
30 A CSA
[ue] rated operational voltage
500 V conforming to EN/IEC 60947-7-1
600 V cURus
600 V CSA
600 V cURus
600 V CSA
number of connections
2
range compatibility
Prisma G
Prisma P
Prisma PH
Prisma Pack
Spacial
Kaedra
Pragma
TeSys
Prisma P
Prisma PH
Prisma Pack
Spacial
Kaedra
Pragma
TeSys
Cable cross section
0.2…10 mm², solid
0.2…10 mm², flexible without cable end
0.2…6 mm², flexible with cable end
0.2…10 mm², flexible without cable end
0.2…6 mm², flexible with cable end
length [l]
100.8 mm
Product certifications
EAC
CSA
cURus
CSA
cURus
dielectric constant
3.7 at 1 MHz
Handle front plate colour
49.6 mm
Product or component type
Terminal block
tightening torque
1.5…1.8 N.m
connection position
Inclined
Number of measurement input
6
Connections - terminals
1 x screw terminal: upstream (M4)
1 x screw terminal: downstream (M4)
1 x screw terminal: downstream (M4)
Quantity per set
Set of 50
Creep resistance
500 CTI (> 400 kB) conforming to IEC 60093
500 CTI (> 400 kB) conforming to VDE 0303-T30
500 CTI (> 400 kB) conforming to VDE 0303-T30
Material
Polyamide 6/6: insulating case
Copper alloy: connector and screw
Copper alloy: commoning link
Chromium-nickel steel: spring
Copper alloy: connector and screw
Copper alloy: commoning link
Chromium-nickel steel: spring
width (w)
8.2 mm
Colour
Grey
Flame retardance
V0, thickness0.8 mm conforming to UL 94
Mounting mode
Clip-on
Net weight
25.4 g
dielectric loss
0.01 at 1 MHz conforming to IEC 60250
0.01 at 1 MHz conforming to VDE 0303-T4
0.01 at 1 MHz conforming to VDE 0303-T4
wire stripping length
10 mm
terminal block type
Passthrough
surface resistance
1000 GΩ conforming to IEC 60093
1000 GΩ conforming to VDE 0303-T30
1000 GΩ conforming to VDE 0303-T30
resistivity
10000 MΩ.m conforming to IEC 60093
10000 MΩ.m conforming to VDE 0303-T30
10000 MΩ.m conforming to VDE 0303-T30
dielectric strength
1000 V conforming to IEC 60243-1
Tool type
Connection: screwdriver
Disconnection: screwdriver
Disconnection: screwdriver
Environment
ambient air temperature for operation
-40…130 °C conforming to IEC 60216-1
-40…130 °C conforming to VDE 0304-T21
-40…130 °C conforming to VDE 0304-T21
