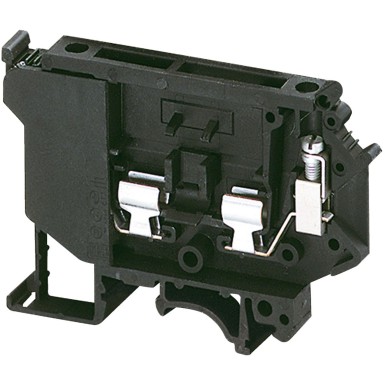

NSYTRV42SF5 - Sectional screw terminal. with fuse 5x20 5x25 5x30mm - pivoting support 2 pts 4mmІ - Schneider Electric

Pending restock EAN: 3606480532337

EAN: 3606480532337

4,79 € excl. VAT

5,94 € incl. VAT

Text About:

Sectional screw terminal. with fuse 5x20 5x25 5x30mm - pivoting support 2 pts 4mmІ - Schneider Electric

In cart

5,94 €

SPECIFICATIONS

Main

Range Linergy

name of the device TRV

type of product or equipment Bornier

Product Name Linergy TR

number of multiple connection points 1

nominal section 4 mm²

Complementary

associated accessories Enveloppes Spacial

[in] rated current 6,3 A se conformer à EN/CEI 60947-7-1
12 A cURus
6,3 A CSA

[ue] rated operational voltage 500 V se conformer à EN/CEI 60947-7-1
600 V cURus
600 V CSA

application Protection

number of connections 2

range compatibility Prisma G
Prisma P
Prisma PH
Prisma Pack
Spacial
Kaedra
Pragma
TeSys

length [l] 72,5 mm

batch quantity Lot de 50

dielectric constant 3,7 à 1 MHz

Handle front plate colour 56,5 mm

tightening torque 0,5…0,8 N.m

connection position Latérale

matter Polyamide 6/6 : boîtier isolant

product weight 18,3 g

mode d'installation Encliquetable

connection mode 1 borne à vis: en amont
1 borne à vis: en aval

width (w) 8,2 mm

Colour Noir

Flame retardance V0, épaisseur0,8 mm se conformer à UL 94

fuse size 5 x 20 mm

dielectric loss 0,01 à 1 MHz se conformer à CEI 60250
0,01 à 1 MHz se conformer à VDE 0303-T4

wire stripping length 8 mm

cable section 0,2…4 mm², souple sans extrémité de câble
0,2…4 mm², rigide ou flexible avec extrémité de câble

terminal block type Sectionnable à fusible

slip resistance 500 CTI (> 400 kB) se conformer à CEI 60093
500 CTI (> 400 kB) se conformer à VDE 0303-T30

surface resistance 1000 MΩ se conformer à CEI 60093
1000 MΩ se conformer à VDE 0303-T30

resistivity 10000 Ω.cm se conformer à CEI 60093
10000 Ω.cm se conformer à VDE 0303-T30

type of tool Raccordement: tournevis
Déconnexion: tournevis

dielectric strength 1000 V se conformer à CEI 60243-1

Environment

product certificates cURus
CSA
EAC

operating temperature -40…130 °C se conformer à CEI 60216-1
-40…130 °C se conformer à VDE 0304-T21
