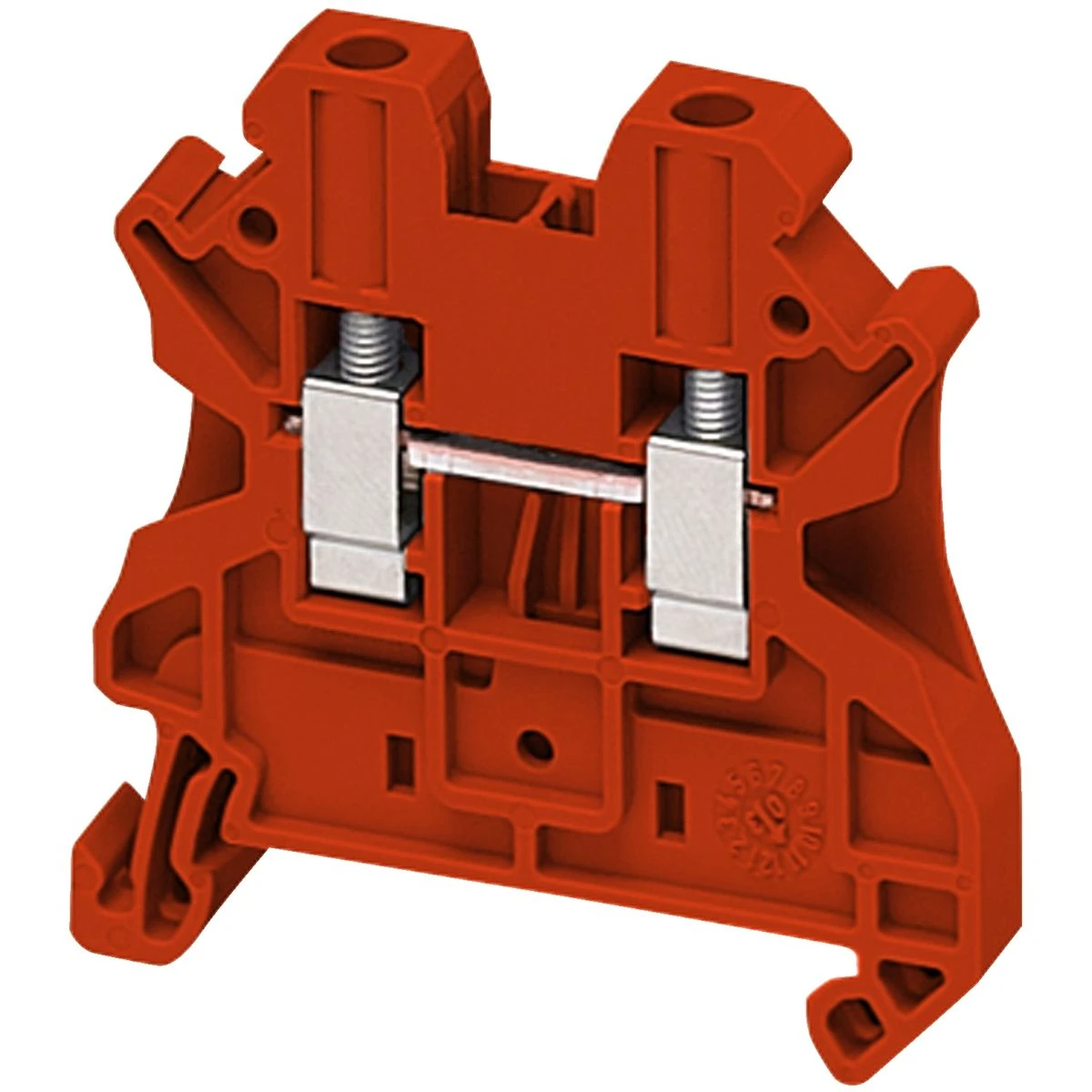

NSYTRV42RD - SCREW TERMINAL, FEED THROUGH, 2 POINTS, 4MMІ , RED - Schneider Electric

Expected in 2-4 weeks

0,68 € excl. VAT

0,83 € incl. VAT

Text About:

SCREW TERMINAL, FEED THROUGH, 2 POINTS, 4MMІ , RED - Schneider Electric

In cart

0,83 €

SPECIFICATIONS

Main

Accessory category Connection accessory

Device short name TRV

Range Linergy

Product Name Linergy TR

Terminal block level 1

nominal cross section 4 mm²

Complementary

product compatibility Spacial enclosures

[in] rated current 32 A conforming to EN/IEC 60947-7-1
30 A CSA
30 A conforming to ATEX Exe II Ex II 2 GD
30 A cURus

[ue] rated operational voltage 1000 V conforming to EN/IEC 60947-7-1
600 V CSA
690 V conforming to ATEX Exe II Ex II 2 GD
600 V cURus

number of connections 2

range compatibility Prisma G
Prisma P
Prisma PH
Prisma Pack
Spacial
Kaedra
Pragma
TeSys

Cable cross section 0.14…6 mm², solid cable with cable end
0.2…4 mm², flexible cable with cable end
0.2…6 mm², solid cable without cable end
0.2…6 mm², flexible cable without cable end

length [l] 47.7 mm

Product certifications LR
cURus
EAC
ATEX
GL
DNV
CSA
IEC-Ex
VDE

dielectric constant 3.7 at 1 MHz

Handle front plate colour 47.5 mm

Product or component type Terminal block

tightening torque 0.6…0.8 N.m

connection position Sideways

Number of measurement input 2

Connections - terminals 1 x screw terminal: upstream (M3)
1 x screw terminal: downstream (M3)

Quantity per set Set of 50

Creep resistance 500 CTI (> 400 kB) conforming to IEC 60093
500 CTI (> 400 kB) conforming to VDE 0303-T30

Material Polyamide 6/6: insulating case
Copper alloy: connector and screw
Copper alloy: commoning link
Chromium-nickel steel: spring

width (w) 6.2 mm

Colour Red

Flame retardance V0, thickness0.8 mm conforming to UL 94

Mounting mode Clip-on

Net weight 9.4 g

dielectric loss 0.01 at 1 MHz conforming to IEC 60250
0.01 at 1 MHz conforming to VDE 0303-T4

wire stripping length 9 mm

terminal block type Passthrough

surface resistance 1000 GΩ conforming to IEC 60093
1000 GΩ conforming to VDE 0303-T30

resistivity 10000 MΩ.m conforming to IEC 60093
10000 MΩ.m conforming to VDE 0303-T30

dielectric strength 1000 V conforming to IEC 60243-1

Tool type Connection: screwdriver
Disconnection: screwdriver

Environment

ambient air temperature for operation -40…130 °C conforming to IEC 60216-1
-40…130 °C conforming to VDE 0304-T21
