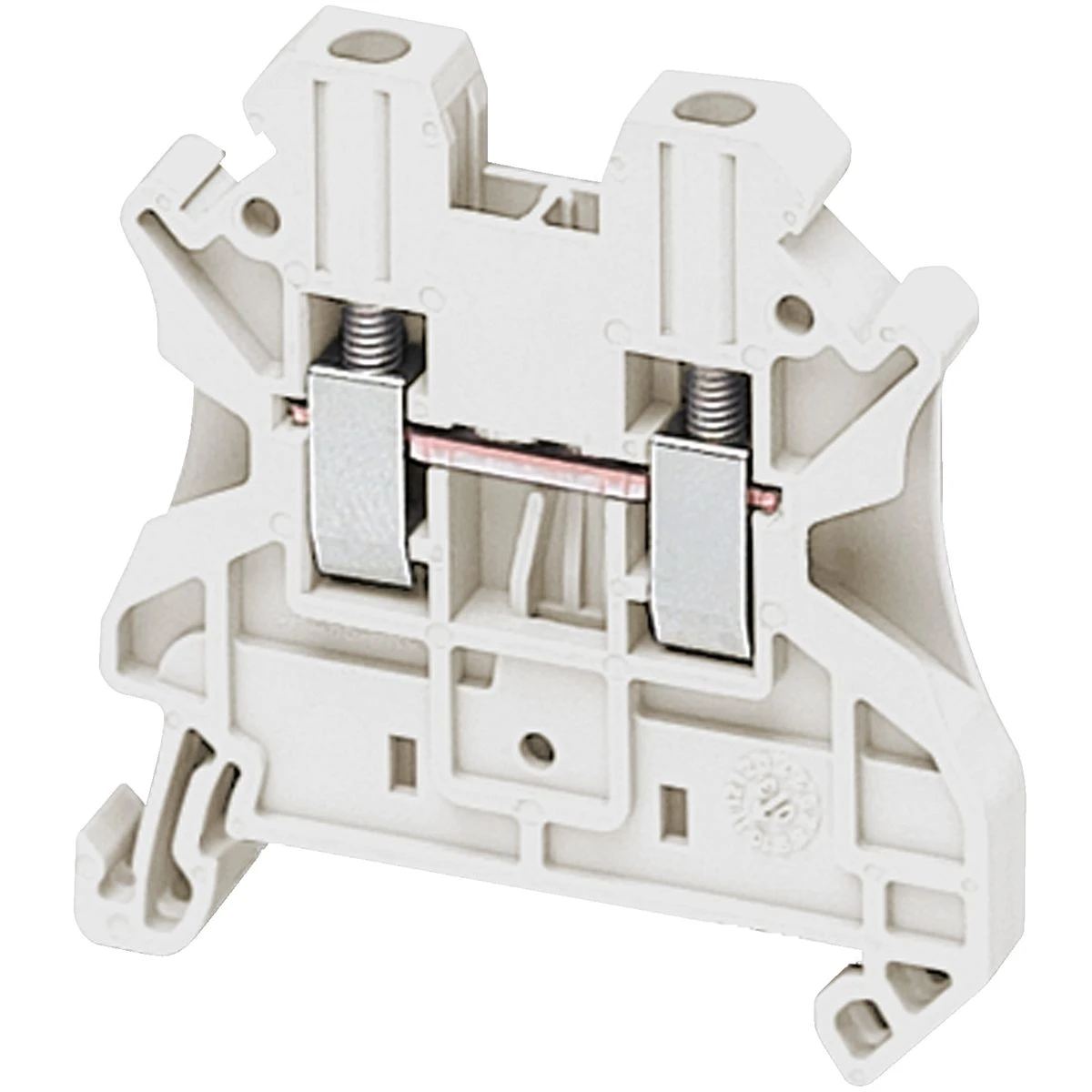

NSYTRV22WH - SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE - Schneider Electric

Expected in 2-4 weeks
NSYTRV22WH - SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE - Schneider Electric - SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE - Schneider Electric - 0
NSYTRV22WH - SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE - Schneider Electric
0,68 € excl. VAT
0,83 € incl. VAT
Text About:
SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE - Schneider Electric
0,83 €
SPECIFICATIONS
Main
Accessory category Connection accessory
Device short name TRV
Range Linergy
Product Name Linergy TR
Terminal block level 1
nominal cross section 2.5 mm²
Complementary
product compatibility Spacial enclosures
[in] rated current 24 A conforming to EN/IEC 60947-7-1
22 A conforming to ATEX Exe II Ex II 2 GD
20 A cURus
20 A CSA
[ue] rated operational voltage 1000 V conforming to EN/IEC 60947-7-1
600 V CSA
690 V conforming to ATEX Exe II Ex II 2 GD
600 V cURus
number of connections 2
range compatibility Prisma G
Prisma P
Prisma PH
Prisma Pack
Spacial
Kaedra
Pragma
TeSys
Cable cross section 0.14…4 mm², solid cable with cable end
0.2…2.5 mm², flexible cable with cable end
0.14…4 mm², solid cable without cable end
0.14…4 mm², flexible cable without cable end
length [l] 47.7 mm
Product certifications ATEX
IEC-Ex
DNV
EAC
GL
LR
CSA
VDE
cURus
dielectric constant 3.7 at 1 MHz
Handle front plate colour 47.5 mm
Product or component type Terminal block
tightening torque 0.5…0.6 N.m
connection position Sideways
Number of measurement input 2
Connections - terminals 1 x screw terminal: upstream (M3)
1 x screw terminal: downstream (M3)
Quantity per set Set of 50
Creep resistance 500 CTI (> 400 kB) conforming to IEC 60093
500 CTI (> 400 kB) conforming to VDE 0303-T30
Material Polyamide 6/6: insulating case
Copper alloy: connector and screw
Copper alloy: commoning link
Chromium-nickel steel: spring
width (w) 5.2 mm
Colour White
Flame retardance V0, thickness0.8 mm conforming to UL 94
Mounting mode Clip-on
Net weight 8.2 g
dielectric loss 0.01 at 1 MHz conforming to IEC 60250
0.01 at 1 MHz conforming to VDE 0303-T4
wire stripping length 9 mm
terminal block type Passthrough
surface resistance 1000 GΩ conforming to IEC 60093
1000 GΩ conforming to VDE 0303-T30
resistivity 10000 MΩ.m conforming to IEC 60093
10000 MΩ.m conforming to VDE 0303-T30
dielectric strength 1000 V conforming to IEC 60243-1
Tool type Connection: screwdriver
Disconnection: screwdriver
Environment
ambient air temperature for operation -40…130 °C conforming to IEC 60216-1
-40…130 °C conforming to VDE 0304-T21
About this product

The NSYTRV22WH - SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE is produced to satisfy the prerequisites of industry experts, such as electrical installers, circuit experts, upkeep firms, and Industry suppliers. NSYTRV22WH affords superior integrity and asset for developers in the electromechanical industry. This SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE and other Linergy TR Terminals Blocks from Schneider Electric are available at the most affordable rate and turnaround time through BaltElec website, a trustworthy reseller catering to practitioners in their obtaining needs.

Customers who have procured Schneider Electric Linergy TR Terminals Blocks have repeatedly complimented the maker's sturdiness. It has been stated that the superlative capability of NSYTRV22WH - SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE extends to a extensive scope of purposes. Its exceptional elements make it fitting for diverse needs, ensuring the success of your industrial, tertiary, and automation projects.

Our company specializes in providing for industrial and tertiary professionals’ needs. We grasp the particular requirements and demands of our patrons in the realm. By partnering with our specialists, your organization secure access to the best rates and delivery schedule of top-tier products like NSYTRV22WH - SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE from Schneider Electric at a value-for-money price. Registered users take pleasure in additional savings and premium support.

Don't wait and secure NSYTRV22WH - SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE at our certified and simple virtual storefront. Don't delay in making this smart pick that warrants the paramount quality and addresses the targeted specifications of buyers like yourselves.

If there are any inquiries or concerns about NSYTRV22WH - SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE or any other Schneider Electric products, message us or refer to our FAQ section section below. We have curated answers to frequent inquiries to facilitate you further in making an smart decision about industrial and tertiary electrical components.

Remember, NSYTRV22WH - SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE from Schneider Electric is safe, reasonable, and elite to market challengers in the Linergy TR Terminals Blocks category. Make it a part of your configuration instantly. Buy at baltele.eu, your dependable vendor for all your Schneider Electric.

In our Baltelec.eu cyber store you will come across SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE - NSYTRV22WH worth 0.83 €, which will be a secure and modern solution for your preferences. This product is produced by the Schneider Electric brand using the newest technologies and follows the top standards of well-being and effectiveness. We present objects from the Linergy TR Terminals Blocks category that amalgamate sturdiness and effectiveness, which is an first-rate preference for various roles. Irrespective of whether you demand tools for small generation or for professional industrial utilization, SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE will be a secure adjunct in your endeavor.

Baltelec efforts to make the getting process as easy and fast as practicable for our users. We offer detailed descriptions and high-quality photographs of SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE so that you can make an conscious choice. A team of specialists is always ready to help you with any concerns in the Linergy TR Terminals Blocks section involved to the opting and use of supplies. We are positive that SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MMІ , WHITE will meet your prospects and become an crucial element of your equipment for just 0.83 €.
