NSYTRR22M - Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 - Schneider Electric

Expected in 2-4 weeks

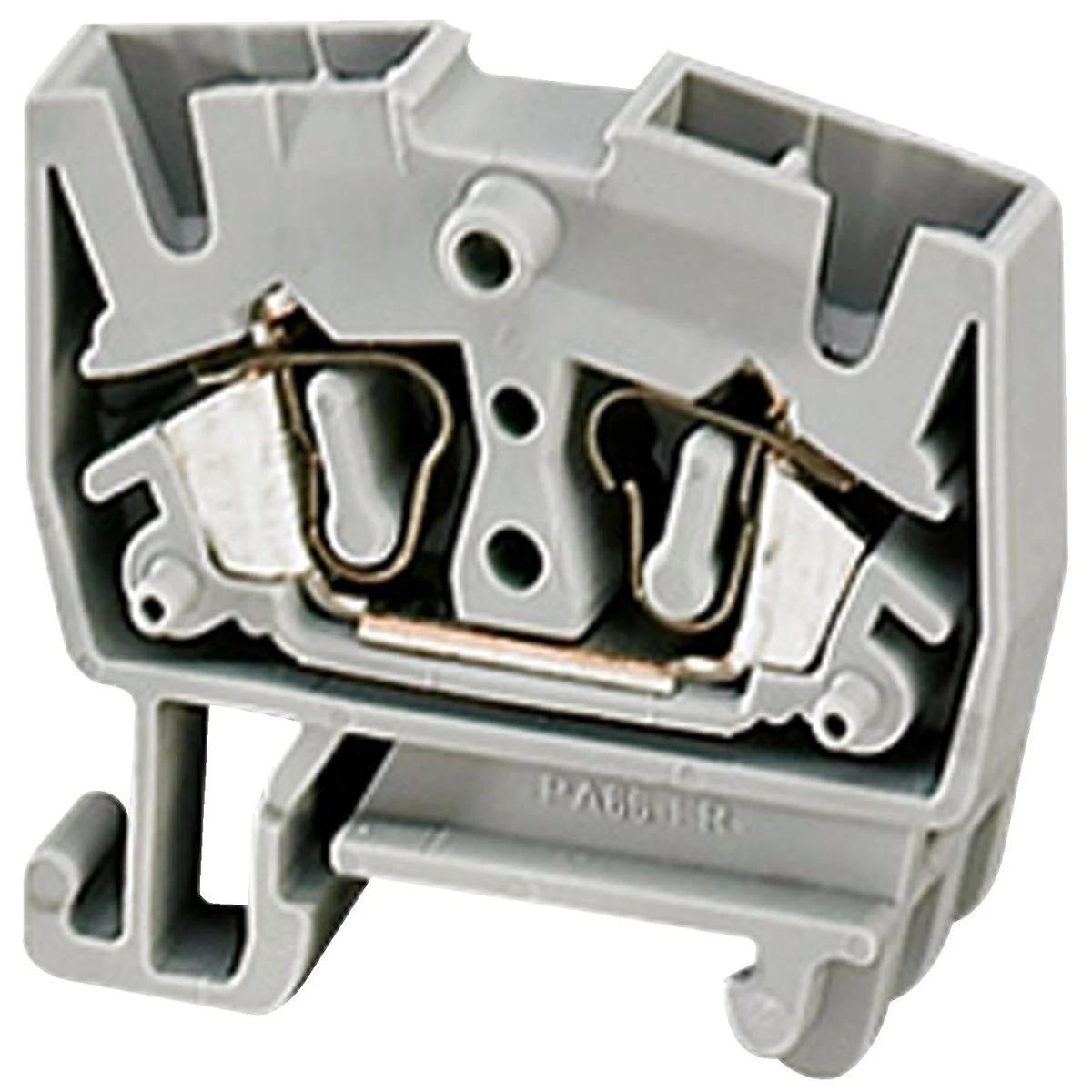

NSYTRR22M - Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 - Schneider Electric - Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 - Schneider Electric - 0
NSYTRR22M - Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 - Schneider Electric
1,17 € excl. VAT
1,45 € incl. VAT
Text About:
Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 - Schneider Electric
1,45 €
SPECIFICATIONS
Main
Accessory category Connection accessory
Device short name TRR
Range Linergy
Product Name Linergy TR
Terminal block level 1
nominal cross section 2.5 mm²
Complementary
product compatibility Spacial enclosures
[in] rated current 20 A cURus
24 A conforming to EN/IEC 60947-7-1
22 A conforming to ATEX Exe II Ex II 2 GD
[ue] rated operational voltage 800 V conforming to EN/IEC 60947-7-1
690 V conforming to ATEX Exe II Ex II 2 GD
600 V cURus
number of connections 2
range compatibility Prisma G
Prisma P
Prisma PH
Prisma Pack
Spacial
Kaedra
Pragma
TeSys
Cable cross section 0.08…2.5 mm², flexible without cable end
0.08…4 mm², solid with cable end
0.2…2.5 mm², flexible with cable end
0.08…4 mm², solid without cable end
length [l] 32 mm
Product certifications CSA
EAC
IEC-Ex
ATEX
cURus
dielectric constant 3.7 at 1 MHz
Handle front plate colour 30 mm
Product or component type Mini terminal block
connection position Top
Connections - terminals 1 x spring terminal: upstream
1 x spring terminal: downstream
Quantity per set Set of 50
Creep resistance 500 CTI (> 400 kB) conforming to IEC 60093
500 CTI (> 400 kB) conforming to VDE 0303-T30
Material Polyamide 6/6: insulating case
Copper alloy: connector and screw
Copper alloy: commoning link
Chromium-nickel steel: spring
width (w) 5.2 mm
Colour Grey
Flame retardance V0, thickness0.8 mm conforming to UL 94
Mounting mode Clip-on
Net weight 4.1 g
dielectric loss 0.01 at 1 MHz conforming to IEC 60250
0.01 at 1 MHz conforming to VDE 0303-T4
wire stripping length 8 mm
terminal block type Passthrough
surface resistance 1000 GΩ conforming to IEC 60093
1000 GΩ conforming to VDE 0303-T30
resistivity 10000 MΩ.m conforming to IEC 60093
10000 MΩ.m conforming to VDE 0303-T30
dielectric strength 1000 V conforming to IEC 60243-1
Tool type Connection: flat screwdriver
Disconnection: flat screwdriver
Environment
ambient air temperature for operation -40…130 °C conforming to IEC 60216-1
-40…130 °C conforming to VDE 0304-T21
About this product

The NSYTRR22M - Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 is designed to match the prerequisites of trade professionals, such as panel builders, electricians, service organizations, and Industry suppliers. NSYTRR22M presents unmatched quality and value for consultants in the electromechanical industry. This Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 and other Linergy TR Terminals Blocks from Schneider Electric can be obtained at the finest pricing and shipment duration through BaltElec website, a respected provider aiding technicians in their supply needs.

Patrons who have adopted Schneider Electric Linergy TR Terminals Blocks have regularly appreciated the manufacturer’s sturdiness. It has been noted that the excellent workmanship of NSYTRR22M - Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 extends to a wide range of applications. Its ideal attributes make it ideal solution for diverse needs, ensuring your industrial, tertiary and automation projects success.

Our professionals focuses in accommodating industrial and tertiary professionals’ needs. We get the particular criteria and expectations of our patrons in the industry. By joining forces with BaltElec, your team get access to the superior pricing and delivery period of first-rate products like NSYTRR22M - Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 from Schneider Electric at a budget-friendly price. Account holders enjoy more savings and top-tier service.

Start immediately and obtain NSYTRR22M - Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 at our safe and hassle-free webshop. Don't delay in making this thoughtful choice that assures the paramount quality and matches the individual requirements of suppliers like your organization.

If you encounter any problems or concerns about NSYTRR22M - Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 or any other Schneider Electric products, communicate with us or refer to our Support section section below. We have provided answers to regular doubts to help you further in making an wise decision about industrial and tertiary electrical components.

Remember, NSYTRR22M - Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 from Schneider Electric is credible, thrifty, and top-notch to opposing companies in the Linergy TR Terminals Blocks category. Make it a part of your infrastructure right now. Obtain at BALTELEC, your reliable retailer for all your Schneider Electric.

In our Baltelec.eu cyber store you will identify Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 - NSYTRR22M worth 1.42 €, which will be a steadfast and new solution for your requirements. This commodity is fabricated by the Schneider Electric brand using the most recent technologies and conforms to the pinnacle standards of guarding and productivity. We provide things from the Linergy TR Terminals Blocks category that associate toughness and practicality, which is an first-rate option for various intents. In spite of whether you want equipment for small manufacturing or for competent industrial use, Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 will be a constant facilitator in your task.

Baltelec ventures to make the shopping process as manageable and fast as feasible for our consumers. We offer detailed accounts and high-quality photographs of Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 so that you can make an aware choice. A team of specialists is always ready to help you with any issues in the Linergy TR Terminals Blocks section connected to the choosing and use of goods. We are guaranteed that Mini Terminal block, Linergy TR, spring type, feed through, 2 points, 2.5mmІ, grey, for 15mm rail, Set of 50 will meet your needs and become an vital element of your apparatus for just 1.42 €.

Frequently Asked Questions about NSYTRR22M:
