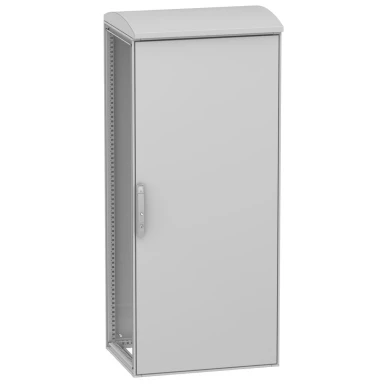

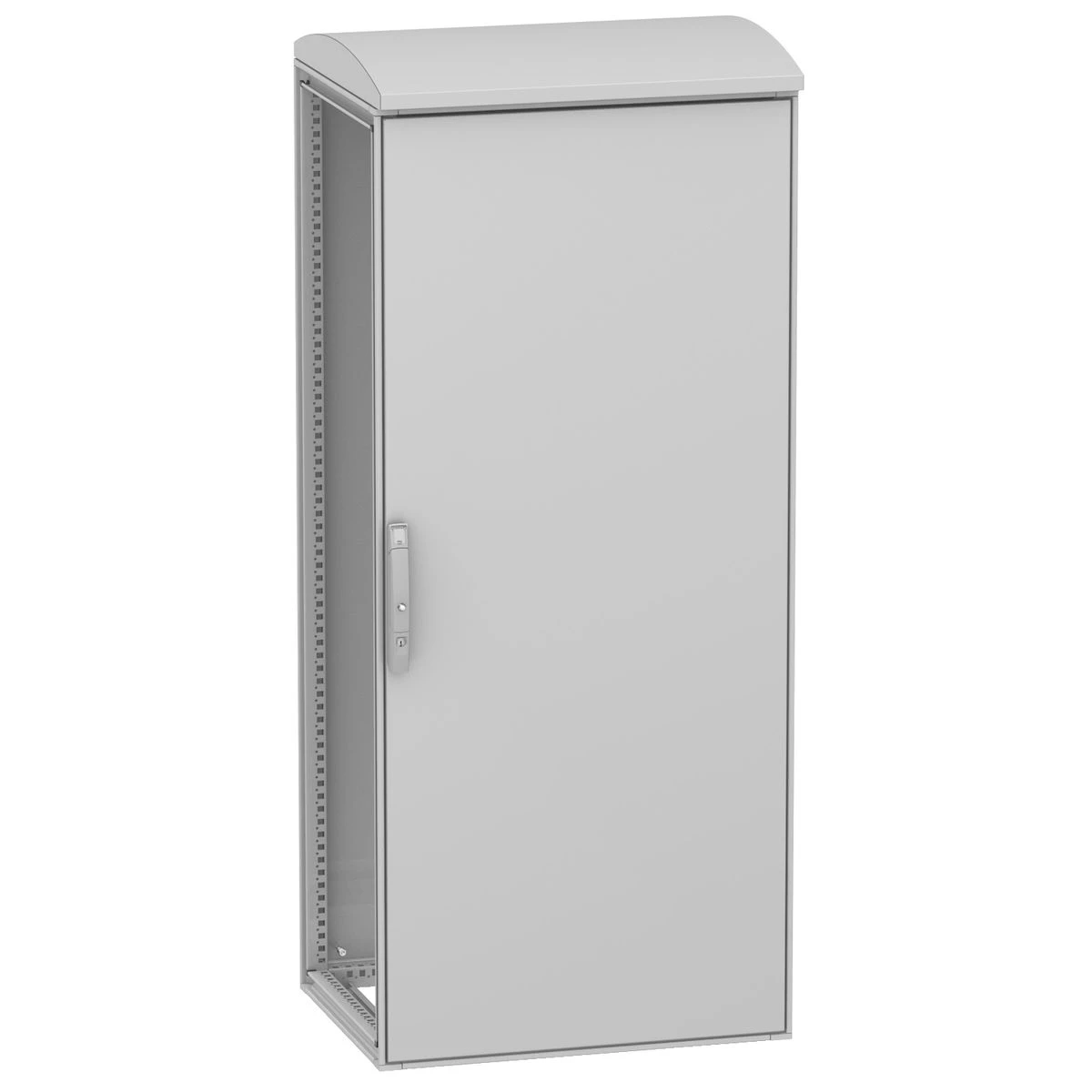

NSYSFHD16860 - Spacial SFHD outdoor heavy duty suitable enclosure H1681 W800 D630 IP55 - Schneider Electric

Expected in 2-4 weeks

2 451,04 € excl. VAT

2 990,26 € incl. VAT

Text About:

Spacial SFHD outdoor heavy duty suitable enclosure H1681 W800 D630 IP55 - Schneider Electric

In cart

2 990,26 €

SPECIFICATIONS

Main

Available functions with accessories Floor management
Suitable for electronic 19" rack
Roof management
Coupling

Cable gland plate type Plain aluminium

Range Spacial

Canopy height 81 mm

Certification Bureau Veritas conforming to IEC 61969-3 2011
UL conforming to UL 508 A 2007
Bureau Veritas conforming to IEC 61439-5 2010
DEKRA conforming to IEC 62208 2011
Bureau Veritas conforming to ISO 12944 2007

Enclosure depth 600 mm

Enclosure depth with canopy 630 mm

Enclosure nominal width 800 mm

Enclosure height with canopy 1681 mm

product Spacial SFHD

installation accessory type Floor-standing

Complementary

Accessibility for operation Bottom
Sides of enclosure
Rear
Front
Top

specific application Outdoor heavy duty

surface finish On enclosure: polyester powder

Door opening side Reversible (120 °)

Lock type 4 points lock, handle with 1242E key lock and padlock front door

Product or component type Suitable enclosure

Device composition sliding rails 2 mounting plate
mounting plate bracket 4
structure 1
locking system with handle and padlock 1
canopy 1
mechanical retainer 1 door
roof 1
door 1
Plastic document pocket 1 A4
Aluminium cable gland plate 1

Door type Plain

Device application Multi-purpose

removable parts Mounting plate bracket by screws
Sliding rail by screws
Rear panel by screws external part
Roof by screws
Canopy by screws and claws
Door by removable axis hinge
Cable gland plate fixing nut

Material Frame: steel with anti-corrosive coating
Hinge: zamak

Colour Enclosure: grey (RAL 7035)
Handle: grey (RAL 7035)

Ik degree of protection IK10 conforming to IEC 62262

Number of doors 1 door(s)

Mounting plate description Without mounting plate

Maximum lifting load 1000 kg

Specific order possible for special colour Yes

Structure type Panels and doors built into the structure
Formed from a single section
Perforated structure with a pitch of 25 mm
Vertical uprights screwed with top and bottom frames

Environment

Climatic withstand C4H conforming to ISO 12944 720 h salt mist

Corrosion withstand 90…100 % conforming to ISO 12944 C4H

ip degree of protection IP55 conforming to IEC 60529

ambient air temperature for operation -45…80 °C conforming to IEC 61969-3 class 1

Environmental withstand Solar radiation: class 1 up to 1120 W/m² conforming to IEC 61969-3:2011
Surrounding air withstand: class 1 up to 180 km/h conforming to IEC 61969-3:2011
Ultraviolet degradation test: class 1 conforming to ISO 4892-2:2013
Formation of ice and frost: class 1 conforming to IEC 61969-3:2011
Fauna and flora withstand: class 1 conforming to IEC 61969-3:2011
: class 1 conforming to IEC 61969-3:2011

standards IEC 61439-5
IEC 62208
UL 508 A
IEC 61969-3

Thermal management Fan: 1500 W for a maximum noise level of 60 dB
With external cooling 4000 W
Natural: 2069 W at -25 °C
Natural: 905 W at 20 °C
Natural: 905 W at 40 °C
According to cooling architecture 1500 W
