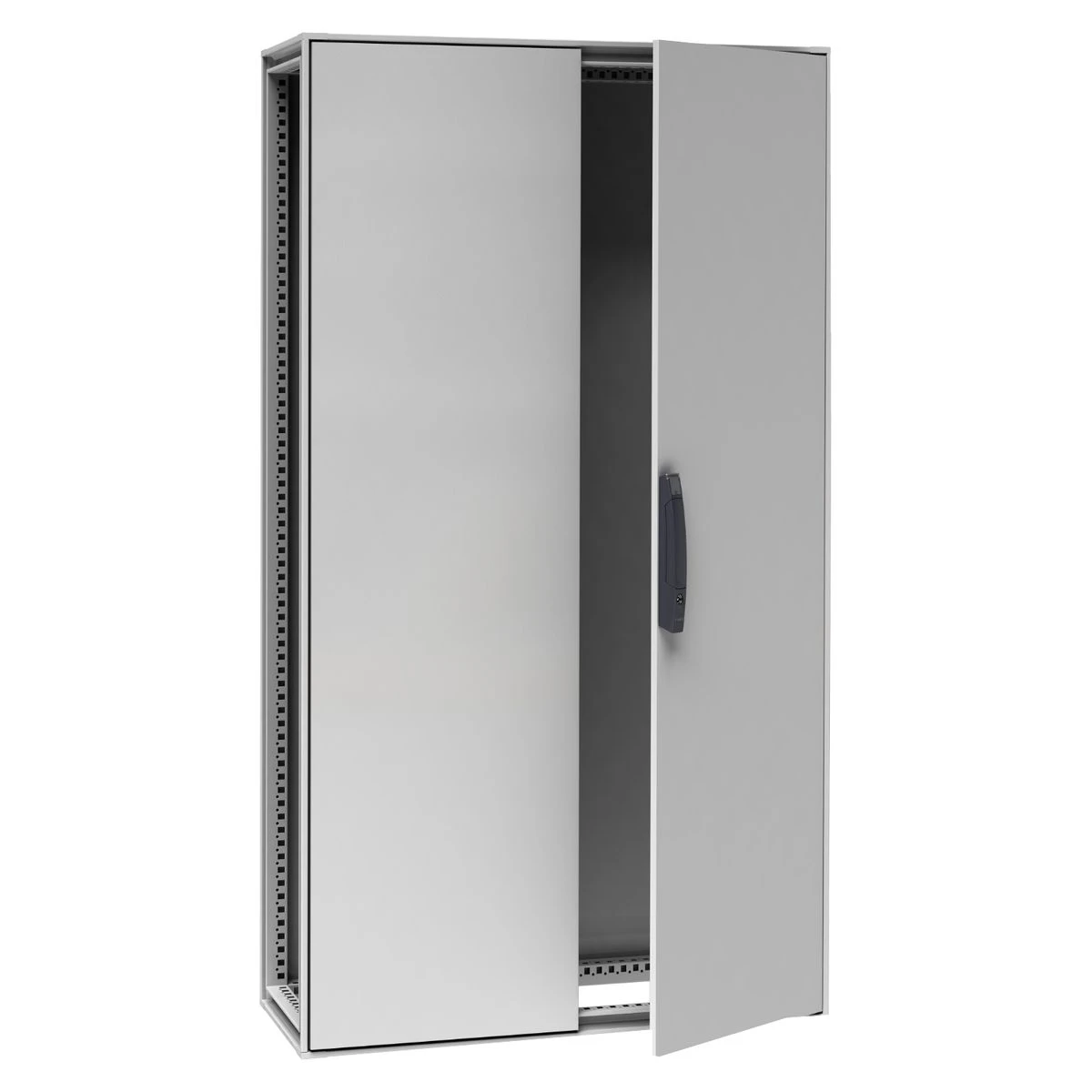

NSYSF2016402D - Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm - Schneider Electric

Pending restock
NSYSF2016402D - Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm - Schneider Electric - Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm - Schneider Electric - 0
NSYSF2016402D - Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm - Schneider Electric
2 161,94 € excl. VAT
2 680,80 € incl. VAT
Text About:
Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm - Schneider Electric
2 680,80 €
SPECIFICATIONS
Main
Range Spacial
Enclosure nominal depth 400 mm
Enclosure nominal height 2000 mm
Enclosure nominal width 1600 mm
extended range Spacial SF
Complementary
Accessibility for operation Sides of enclosure
Front
Rear
application Multi-purpose
surface finish Epoxy-polyester powder
Door opening side Left (120 °)
Right (120 °)
Lock type 4 points lock, handle with 5 mm double bar insert front right door
Product or component type Suitable enclosure
Device composition 2 sliding rails
4 mounting plate bracket
1 structure
1 rear panel
1 roof
2 door
1 locking system with handle
1 blocking system: left door
Door type Plain front
nema degree of protection NEMA 3R/12
removable parts Door by screws hinge
Mounting plate by screws mounting plate bracket
Rear panel by screws
Roof by screws
Mounting plate bracket by screws
Sliding rail by screws
Material Frame: galvanised steel
Uprights: galvanised steel
Door: sheet steel
Panels: sheet steel
Hinge: zamak
Handle: polyamide 6 with 30 % fibre glass
Colour Enclosure: grey (RAL 7035)
Handle: black (RAL 9005)
Ik degree of protection IK10 conforming to IEC 62262
Number of doors Front face: 2 door(s)
Mounting plate description Without mounting plate
Net weight 163 kg
Type of gland plate Without gland plate
Structure type Perforated structure with a pitch of 25 mm
Formed from a single section
Vertical uprights joined with top and bottom frames
Panels and doors built into the structure
Enclosure mounting Floor-standing
Environment
ip degree of protection IP55 conforming to IEC 60529
standards IEC 62208
About this product

The NSYSF2016402D - Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm is produced to cater to the desires of professional purchasers, such as circuit designers, electric engineers, maintenance service providers, and industry fabricators. NSYSF2016402D dispenses superior robustness and advantages for contractors in the electrical and automation industry. This Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm and other Spacial SF/SM/SD from Schneider Electric can be bought at the optimal price and delivery schedule through BALTELEC, a dependable reseller attending to contractors in their buying needs.

Buyers who have opted for Schneider Electric Spacial SF/SM/SD have repeatedly extolled the producer's robustness. It has been remarked that the superlative effectiveness of NSYSF2016402D - Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm extends to a variety of tasks. Its top-notch traits make it great selection for different applications, ensuring the success of your industrial, tertiary, and automation projects.

Our experts commits in catering industrial and tertiary professionals’ needs. We understand the particular needs and preferences of our stakeholders in the niche. By partnering with our professionals, our partners gain access to the finest price lists and supply timeline of premium products like NSYSF2016402D - Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm from Schneider Electric at a competitive price. Our registered accounts take pleasure in exclusive discounts and top-tier service.

Begin today and buy NSYSF2016402D - Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm at our risk-free and intuitive online portal. Don't delay in making this savvy resolution that warrants the utmost quality and achieves the personalized demands of buyers like your outfit.

If you face any problems or concerns about NSYSF2016402D - Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm or any other Schneider Electric products, contact us or refer to our FAQ section section below. We have collected answers to routine inquiries to benefit you further in making an considered decision about industrial and tertiary electrical components.

Remember, NSYSF2016402D - Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm from Schneider Electric is unfailing, economical, and better to other brands in the Spacial SF/SM/SD category. Feel free to make it a part of your network now. Obtain at BaltElec, your respected merchant for all your Spacial SF/SM/SD.

In our Baltelec.eu cyber store you will come across Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm - NSYSF2016402D worth 2,637.57 €, which will be a trustworthy and contemporary solution for your preferences. This object is created by the Schneider Electric brand using the newest technologies and fulfills the uppermost standards of well-being and capacity. We propose merchandise from the Spacial SF/SM/SD category that blend toughness and practicality, which is an exceptional decision for various functions. Independent of whether you necessitate hardware for small assembly or for adept industrial exertion, Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm will be a sure partner in your job.

Baltelec tries to make the attaining process as convenient and fast as workable for our users. We offer detailed descriptions and high-quality depictions of Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm so that you can make an conscious choice. A team of masters is always ready to help you with any inquiries in the Spacial SF/SM/SD section affiliated to the preferment and use of materials. We are sure that Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm will meet your wishes and become an necessary element of your gear for just 2,637.57 €.

Common Queries about Schneider Electric Spacial SF enclosure without mounting plate assembled 2000x1600x400 mm:
