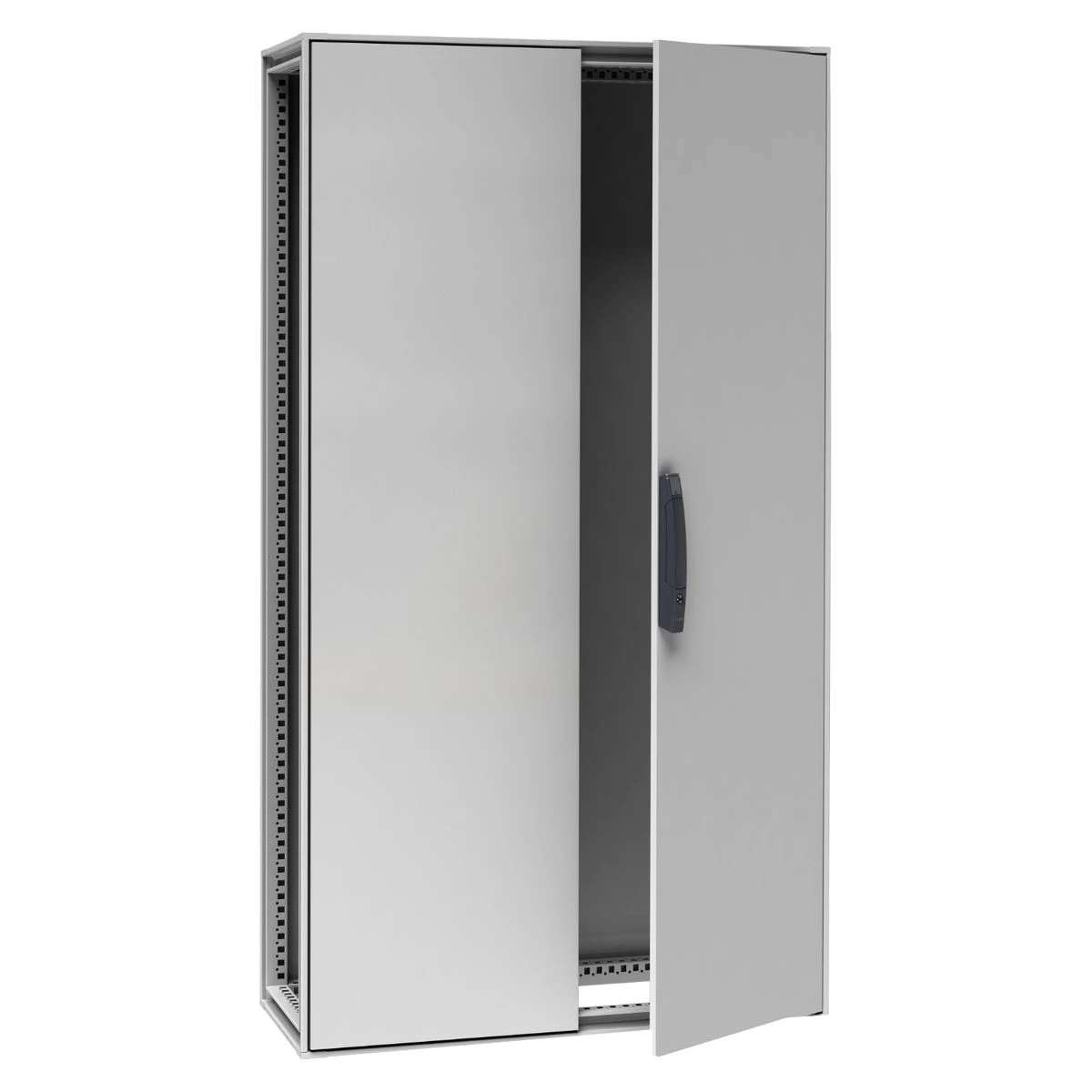

NSYSF2012402D - Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm - Schneider Electric

Pending restock
NSYSF2012402D - Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm - Schneider Electric - Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm - Schneider Electric - 0
NSYSF2012402D - Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm - Schneider Electric
1 415,56 € excl. VAT
1 755,29 € incl. VAT
Text About:
Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm - Schneider Electric
1 755,29 €
SPECIFICATIONS
Main
Range Spacial
Enclosure nominal depth 400 mm
Enclosure nominal height 2000 mm
Enclosure nominal width 1200 mm
extended range Spacial SF
Complementary
Accessibility for operation Rear
Sides of enclosure
Front
application Multi-purpose
surface finish Epoxy-polyester powder
Door opening side Left (120 °)
Right (120 °)
Lock type 4 points lock, handle with 5 mm double bar insert front right door
Product or component type Suitable enclosure
Device composition 2 sliding rails
4 mounting plate bracket
1 structure
1 rear panel
1 roof
2 door
1 locking system with handle
1 blocking system: left door
Door type Plain front
nema degree of protection NEMA 3R/12
removable parts Door by screws hinge
Mounting plate by screws mounting plate bracket
Rear panel by screws
Roof by screws
Mounting plate bracket by screws
Sliding rail by screws
Material Frame: galvanised steel
Uprights: galvanised steel
Door: sheet steel
Panels: sheet steel
Hinge: zamak
Handle: polyamide 6 with 30 % fibre glass
Colour Enclosure: grey (RAL 7035)
Handle: black (RAL 9005)
Ik degree of protection IK10 conforming to IEC 62262
Number of doors Front face: 2 door(s)
Mounting plate description Without mounting plate
Net weight 128 kg
Type of gland plate Without gland plate
Structure type Perforated structure with a pitch of 25 mm
Panels and doors built into the structure
Formed from a single section
Vertical uprights joined with top and bottom frames
Enclosure mounting Floor-standing
Environment
ip degree of protection IP55 conforming to IEC 60529
standards IEC 62208
About this product

The NSYSF2012402D - Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm is formulated to meet the conditions of specialized professionals, such as circuit designers, electric engineers, maintenance service providers, and original manufacturers. NSYSF2012402D yields remarkable durability and worth for technicians in the energy management industry. This Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm and other Spacial SF/SM/SD from Schneider Electric are on offer at the most economical price and fulfillment period through baltelec.eu, a well-known dealer catering to experts in their supply needs.

Contractors who have secured Schneider Electric Spacial SF/SM/SD have steadily approved the manufacturer’s solidity. It has been indicated that the superior efficiency of NSYSF2012402D - Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm extends to a extensive scope of implementations. Its supreme components make it perfect choice for wide-ranging specifications, securing success in your industrial, tertiary, and automation endeavors.

Our experts devotes in fulfilling industrial and tertiary professionals’ needs. We know the special requirements and anticipations of our partners in the sector. By working with our professionals, your enterprise secure access to the top pricing and inventory of premium products like NSYSF2012402D - Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm from Schneider Electric at an affordable price. Our registered accounts enjoy additional savings and first-class attention.

Take action and purchase NSYSF2012402D - Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm at our safe and easy-to-use web store. Don't delay in making this clever resolution that promises the best quality and caters to the distinct expectations of vendors like your organization.

If there are any problems or concerns about NSYSF2012402D - Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm or any other Schneider Electric products, reach out to us or refer to our Information center section below. We have collected answers to regular queries to serve you further in making an informed decision about industrial and tertiary electrical components.

Remember, NSYSF2012402D - Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm from Schneider Electric is safe, thrifty, and top-notch to market challengers in the Spacial SF/SM/SD category. Feel free to make it a part of your infrastructure promptly. Snap up at Baltelec e-shop, your respected merchant for all your professional electrical equipment and automation needs.

In our Baltelec.eu e-commerce store you will locate Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm - NSYSF2012402D worth 1,726.98 €, which will be a dependable and cutting-edge solution for your desires. This commodity is fabricated by the Schneider Electric brand using the current technologies and complies with the pinnacle standards of precaution and efficacy. We give merchandise from the Spacial SF/SM/SD category that combine strength and workability, which is an top-notch election for various functions. Independent of whether you crave machinery for small formation or for adept industrial exertion, Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm will be a dependable associate in your endeavor.

Baltelec labors to make the obtaining process as straightforward and fast as realizable for our purchasers. We offer detailed depictions and high-quality snapshots of Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm so that you can make an well-informed choice. A team of professionals is always ready to help you with any doubts in the Spacial SF/SM/SD section related to the choice and use of equipment. We are positive that Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm will meet your expectations and become an significant element of your hardware for just 1,726.98 €.

Frequently Raised Questions about Schneider Electric Spacial SF enclosure without mounting plate assembled 2000x1200x400 mm:
