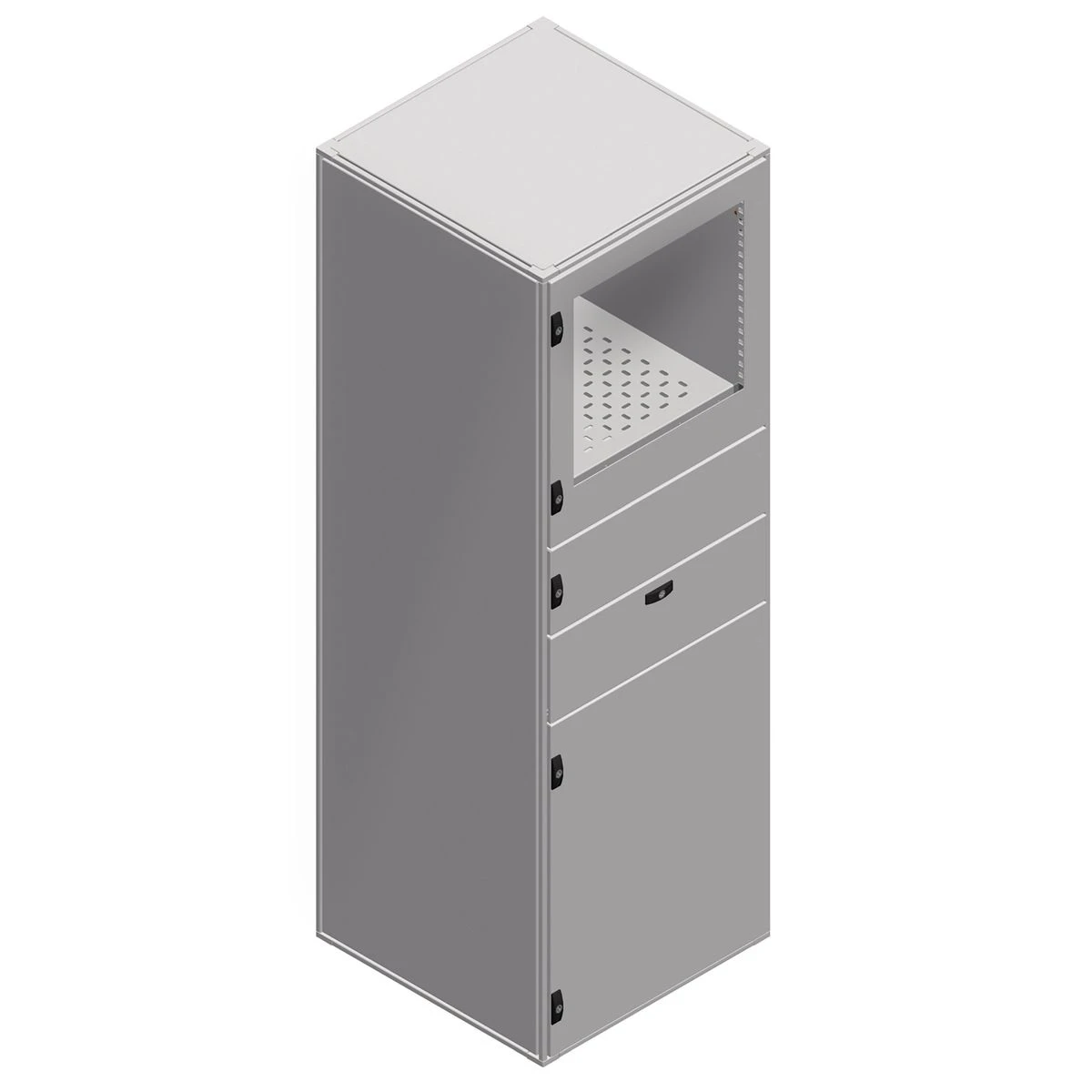

NSYSF18680PC - Spacial SF PC rack enclosure assembled 1800x600x800 mm - Schneider Electric

Expected in 2-4 weeks

3 710,22 € excl. VAT

4 526,46 € incl. VAT

Text About:

Spacial SF PC rack enclosure assembled 1800x600x800 mm - Schneider Electric

In cart

4 526,46 €

SPECIFICATIONS

Main

product specific application Protecting computer equipment

Range Spacial

Enclosure nominal depth 800 mm

Enclosure nominal height 1800 mm

Enclosure nominal width 600 mm

extended range Spacial SF

Complementary

Accessibility for operation Front
Rear
Sides of enclosure

application PC application

surface finish Epoxy-polyester powder

Door opening side Reversible (120 °)

Lock type Flat escutcheon lock, 5 mm double bar rear door
Escutcheon lock, 3 mm double bar front partial doors

Product or component type Suitable enclosure

Device composition 1 structure
1 roof
2 side panels
1 cable gland plate
1 partial door for keyboard
1 partial door for PC screen
1 partial door for printer support
1 rear door
1 partial door for CPU

Door type Plain partial front
Glazed partial front
Plain rear
Hinged plain partial front

nema degree of protection NEMA 3R/12

cable entry 1 entry

removable parts Roof by screws internally
Side panel by screws internally
Door by screws hinge

Material Frame: galvanised steel
Uprights: galvanised steel
Door: sheet steel
Panels: sheet steel
Hinge: zamak
Escutcheon: polyamide 6 with 30 % fibre glass

Colour Enclosure: grey (RAL 7035)
Handle: black (RAL 9005)

Ik degree of protection IK08 conforming to IEC 62262 (of transparent door)
IK10 conforming to IEC 62262 (of plain door)

Number of doors Front: 4 door(s)
Rear: 1 door(s)

Mounting plate description Without mounting plate

Number of compartiments 4

Type of gland plate Standard

Structure type Panels and doors built into the structure
Perforated structure with a pitch of 25 mm
Formed from a single section
Vertical uprights joined with top and bottom frames

Enclosure mounting Floor-standing

Environment

ip degree of protection IP40 conforming to IEC 60529 (with hinged keyboard)
IP55 (without hinged keyboard)

standards IEC 62208
