NSYSF181040P - Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm - Schneider Electric

Pending restock
NSYSF181040P - Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm - Schneider Electric - Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm - Schneider Electric - 0
NSYSF181040P - Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm - Schneider Electric
1 507,12 € excl. VAT
1 868,83 € incl. VAT
Text About:

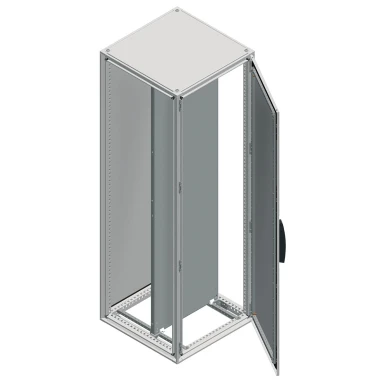

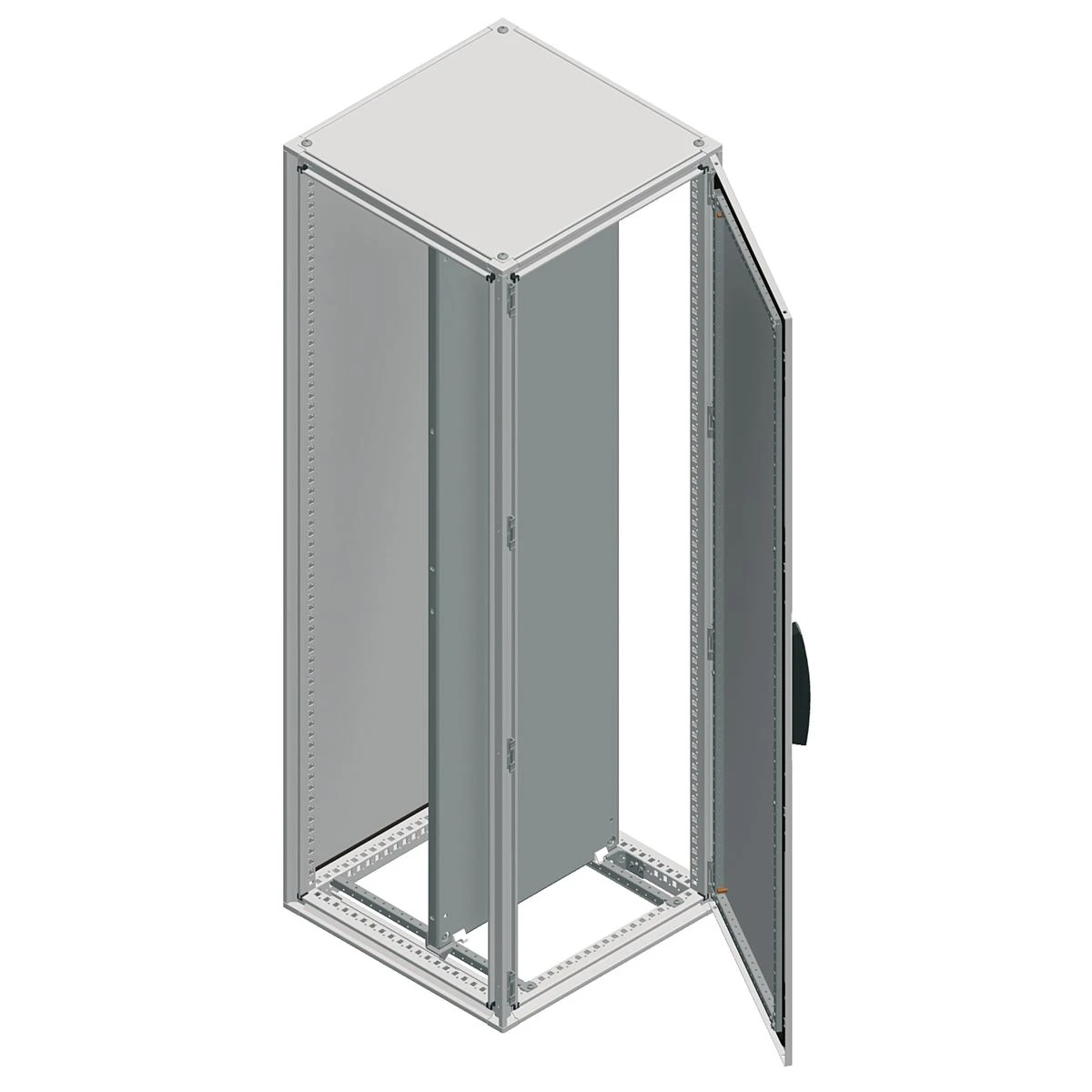

Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm - Schneider Electric
1 868,83 €
SPECIFICATIONS
Main
Range Spacial
Enclosure nominal depth 400 mm
Enclosure nominal height 1800 mm
Enclosure nominal width 1000 mm
extended range Spacial SF
Complementary
Accessibility for operation Rear
Sides of enclosure
Front
application Multi-purpose
surface finish Epoxy-polyester powder
Door opening side Reversible (120 °)
Lock type 4 points lock, handle with 5 mm double bar insert front door
Product or component type Suitable enclosure
Device composition 2 sliding rails
4 mounting plate bracket
1 structure
1 door
1 locking system with handle: door
1 rear panel
1 roof
1 mounting plate
Door type Plain front
nema degree of protection NEMA 3R/12
removable parts Door by screws hinge
Mounting plate by screws mounting plate bracket
Rear panel by screws
Roof by screws
Mounting plate bracket by screws
Sliding rail by screws
Material Frame: galvanised steel
Uprights: galvanised steel
Door: sheet steel
Panels: sheet steel
Hinge: zamak
Handle: polyamide 6 with 30 % fibre glass
Colour Enclosure: grey (RAL 7035)
Handle: black (RAL 9005)
Ik degree of protection IK10 conforming to IEC 62262
Number of doors Front: 1 door(s)
Mounting plate description Plain
Net weight 147.462 kg
Type of gland plate Without gland plate
Structure type Perforated structure with a pitch of 25 mm
Vertical uprights joined with top and bottom frames
Panels and doors built into the structure
Formed from a single section
Enclosure mounting Floor-standing
Environment
ip degree of protection IP55 conforming to IEC 60529
standards IEC 62208
About this product

The NSYSF181040P - Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm is engineered to cover the needs of professional purchasers, such as control panel builders, electrical fitters, service providers, and industry fabricators. NSYSF181040P provides remarkable robustness and utility for developers in the electrical engineering industry. This Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm and other Spacial SF/SM/SD from Schneider Electric can be ordered at the optimal price and distribution time through BALTELEC.EU, a trustworthy retailer serving consultants in their provision needs.

Users who have acquired Schneider Electric Spacial SF/SM/SD have frequently approved the maker's soundness. It has been highlighted that the notable workmanship of NSYSF181040P - Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm extends to a broad spectrum of scenarios. Its supreme elements make it optimal for different applications, promoting success in your industrial, tertiary, and automation efforts.

Our professionals focuses in meeting industrial and tertiary professionals’ needs. We comprehend the special demands and anticipations of our patrons in the domain. By cooperating with Baltelec.eu, you obtain access to the top costs and delivery period of excellent products like NSYSF181040P - Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm from Schneider Electric at an attractive price. Professional buyers with Baltelec account get exclusive discounts and priority service.

Move quickly and request NSYSF181040P - Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm at our protected and easy-to-use digital marketplace. Don't delay in making this savvy decision that validates the finest quality and meets the individual expectations of contractors like you.

In the event of any uncertainties or concerns about NSYSF181040P - Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm or any other Schneider Electric products, connect with us or refer to our Support section section below. We have amassed answers to popular problems to facilitate you further in making an educated decision about industrial and tertiary electrical components.

Remember, NSYSF181040P - Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm from Schneider Electric is unfailing, value-priced, and elite to its rivals in the Spacial SF/SM/SD category. Make it a part of your inventory instantly. Acquire at BALTELEC, your reliable source for all your Schneider Electric.

In our Baltelec.eu internet store you will identify Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm - NSYSF181040P worth 1,838.68 €, which will be a secure and innovative solution for your requirements. This item is fabricated by the Schneider Electric brand using the most recent technologies and obeys the peak standards of well-being and capability. We supply goods from the Spacial SF/SM/SD category that blend durability and operability, which is an fine option for various objectives. Without consideration of whether you call for equipment for small manufacturing or for competent industrial exertion, Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm will be a dependable associate in your work.

Baltelec ventures to make the acquiring process as simple and fast as feasible for our purchasers. We offer detailed outlines and high-quality portrayals of Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm so that you can make an versed choice. A team of authorities is always ready to help you with any issues in the Spacial SF/SM/SD section connected to the choice and use of wares. We are guaranteed that Spacial SF enclosure with mounting plate assembled 1800x1000x400 mm will meet your prospects and become an important element of your tools for just 1,838.68 €.
