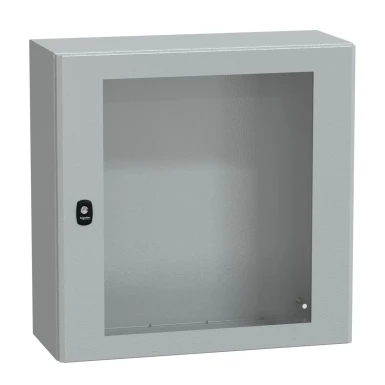

NSYS3D6625T - Wall mounted steel enclosure, Spacial S3D, transparent door, without mounting plate, 600x600x250mm, IP66, IK08 - Schneider Electric

Expected in 2-4 weeks

215,11 € excl. VAT

262,43 € incl. VAT

Text About:

Wall mounted steel enclosure, Spacial S3D, transparent door, without mounting plate, 600x600x250mm, IP66, IK08 - Schneider Electric

In cart

262,43 €

SPECIFICATIONS

Main

Body type Single piece body
Gutter-shaped front rail double sheet thickness

category Compact enclosure

Range Spacial

Enclosure nominal depth 250 mm

Product Name Spacial S3D

Enclosure nominal height 600 mm

Enclosure nominal width 600 mm

installation accessory type Wall-mounting

Complementary

Accessibility for operation Front

application Multi-purpose

surface finish Epoxy-polyester powder

Product certifications GL
BV
DNV
LR
UL
cUL

Door opening side Reversible (120 °)

Lock type 3 points lock, 3 mm double-bar

Device composition 1 body
1 door
1 lock
1 cable gland plate

Door type Glazed

nema degree of protection NEMA 4X/13

removable parts Door by hinges
Cable gland plate by screws

Material Body: steel
Door: steel and security glass

Colour Grey (RAL 7035)

Ik degree of protection IK08 conforming to IEC 62262

Number of doors Front face: 1 door(s)

Mounting plate description Without mounting plate

Net weight 15.9 kg

Type of gland plate Standard

Environment

ip degree of protection IP66 conforming to IEC 60529

electromagnetic compatibility Electromagnetic field immunity test

standards IEC 62208
