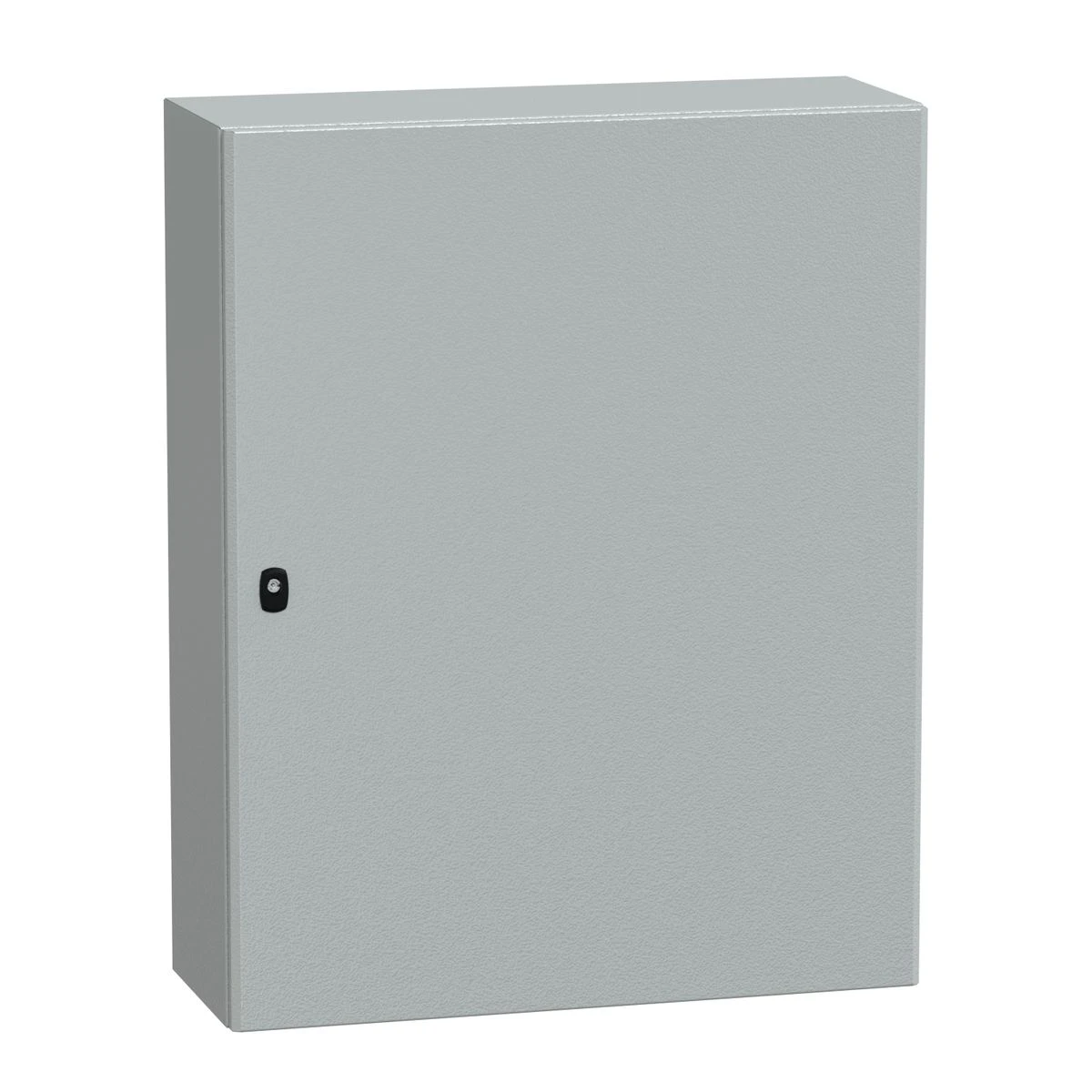

NSYS3D10830P - Wall mounted steel enclosure, Spacial S3D, plain door, with mounting plate, 1000x800x300mm, IP66, IK10 - Schneider Electric

Expected in 2-4 weeks

375,76 € excl. VAT

458,43 € incl. VAT

Text About:

Wall mounted steel enclosure, Spacial S3D, plain door, with mounting plate, 1000x800x300mm, IP66, IK10 - Schneider Electric

In cart

458,43 €

SPECIFICATIONS

Main

Body type Gutter-shaped front rail double sheet thickness
Single piece body

category Compact enclosure

Range Spacial

Enclosure nominal depth 300 mm

Product Name Spacial S3D

Enclosure nominal height 1000 mm

Enclosure nominal width 800 mm

installation accessory type Wall-mounting

Complementary

Accessibility for operation Front

application Multi-purpose

surface finish Enclosure: epoxy-polyester powder

Product certifications cUL
DNV
GL
LR
UL
BV

Door opening side Reversible (120 °)

Lock type 3 points lock, 3 mm double-bar

Device composition 1 body
2 cable gland plate
1 mounting plate
1 door with lock

Door type Plain

nema degree of protection NEMA 4X/13

removable parts Door by hinges
Cable gland plate by screws
Mounting plate by fixing element

Material Enclosure: steel
Mounting plate: galvanised steel

Colour Enclosure: grey (RAL 7035)

Ik degree of protection IK10 conforming to IEC 62262

Number of doors Front face: 1 door(s)

Mounting plate description Plain

Net weight 52 kg

Type of gland plate Standard

Environment

ip degree of protection IP66 conforming to IEC 60529

standards IEC 62208
