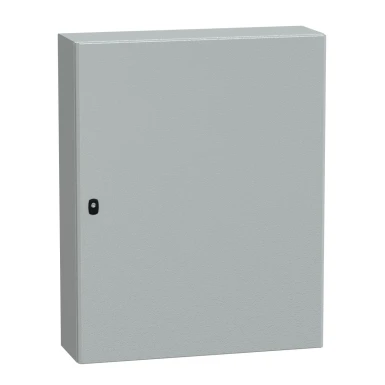

NSYS3D10825 - Wall mounted steel enclosure, Spacial S3D, plain door, without mounting plate, 1000x800x250mm, IP66, IK10 - Schneider Electric
Expected in 2-4 weeks
EAN: 3606480160158
272,02 €
Text About:
Wall mounted steel enclosure, Spacial S3D, plain door, without mounting plate, 1000x800x250mm, IP66, IK10 - Schneider Electric
SPECIFICATIONS
Main
category
Enveloppe compact
Range
Spacial
Product Name
Spacial S3D
solid frame type
Sans châssis plein
type of door
Pleine
composition of the device
1 corps
2 plaque passe-câbles
1 porte
1 verrou
2 plaque passe-câbles
1 porte
1 verrou
installation accessory type
Montage mural
Complementary
accessibility
Avant
application
Polyvalent
surface finish
Poudre époxy-polyester
nominal enclosure height
1000 mm
nema degree of protection
NEMA 4X/13
door opening
Réversible (120 °)
matter
Acier
nominal envelope width
800 mm
product weight
35 kg
shipping name
Face avant: 1 porte(s)
cable entry plate type
Standard
nominal envelope depth
250 mm
removable parts
Porte par charnières
Plaque passe-câbles par vis
Plaque passe-câbles par vis
type of lock
Verrou 3 points, double bar 3 mm
type of body
Rail avant en forme de gouttière à double épaisseur
Corps pièce unique
Corps pièce unique
Colour
Gris (RAL 7035)
Environment
ip degree of protection
IP66 se conformer à CEI 60529
product certificates
GL
BV
cUL
DNV
UL
LR
BV
cUL
DNV
UL
LR
standards
CEI 62208
shock resistance ik
IK10 se conformer à CEI 62262
