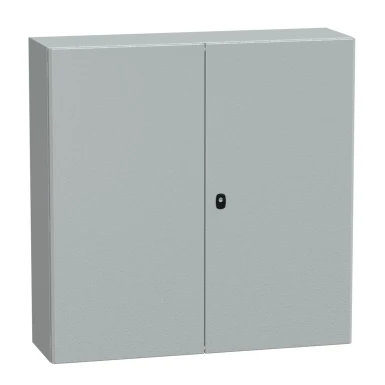

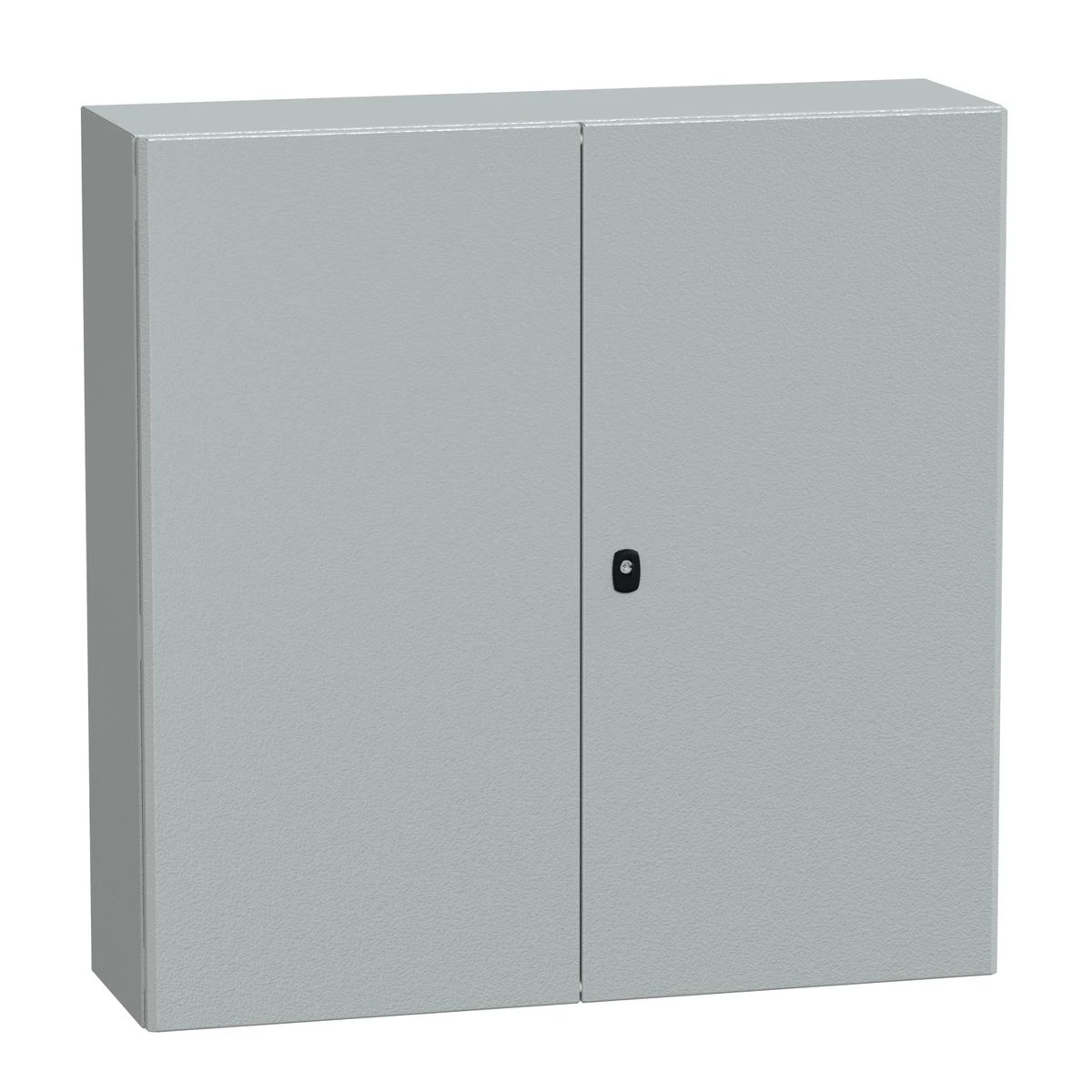

NSYS3D101030D - Wall mounted steel enclosure, Spacial S3D, double plain door, without mounting plate, 1000x1000x300mm, IP55, IK10 - Schneider Electric
Expected in 2-4 weeks
427,55 € excl. VAT
521,62 € incl. VAT
Text About:
Wall mounted steel enclosure, Spacial S3D, double plain door, without mounting plate, 1000x1000x300mm, IP55, IK10 - Schneider Electric
SPECIFICATIONS
Main
Body type
Gutter-shaped front rail double sheet thickness
Single piece body
Single piece body
category
Compact enclosure
Range
Spacial
Enclosure nominal depth
300 mm
Product Name
Spacial S3D
Enclosure nominal height
1000 mm
Enclosure nominal width
1000 mm
installation accessory type
Wall-mounting
Complementary
Accessibility for operation
Front
application
Multi-purpose
surface finish
Epoxy-polyester powder
Product certifications
GL
UL
cUL
LR
BV
DNV
UL
cUL
LR
BV
DNV
Door opening side
Reversible (120 °)
Lock type
3 points lock, 3 mm double-bar
Device composition
1 body
2 cable gland plate
1 lock
2 door
2 cable gland plate
1 lock
2 door
Door type
Plain
removable parts
Door by hinges
Cable gland plate by screws
Cable gland plate by screws
Material
Steel
Colour
Grey (RAL 7035)
Ik degree of protection
IK10 conforming to IEC 62262
Number of doors
Front face: 2 door(s)
Mounting plate description
Without mounting plate
Net weight
46 kg
Type of gland plate
Standard
Environment
ip degree of protection
IP55 conforming to IEC 60529
electromagnetic compatibility
Electromagnetic field immunity test
standards
IEC 62208
