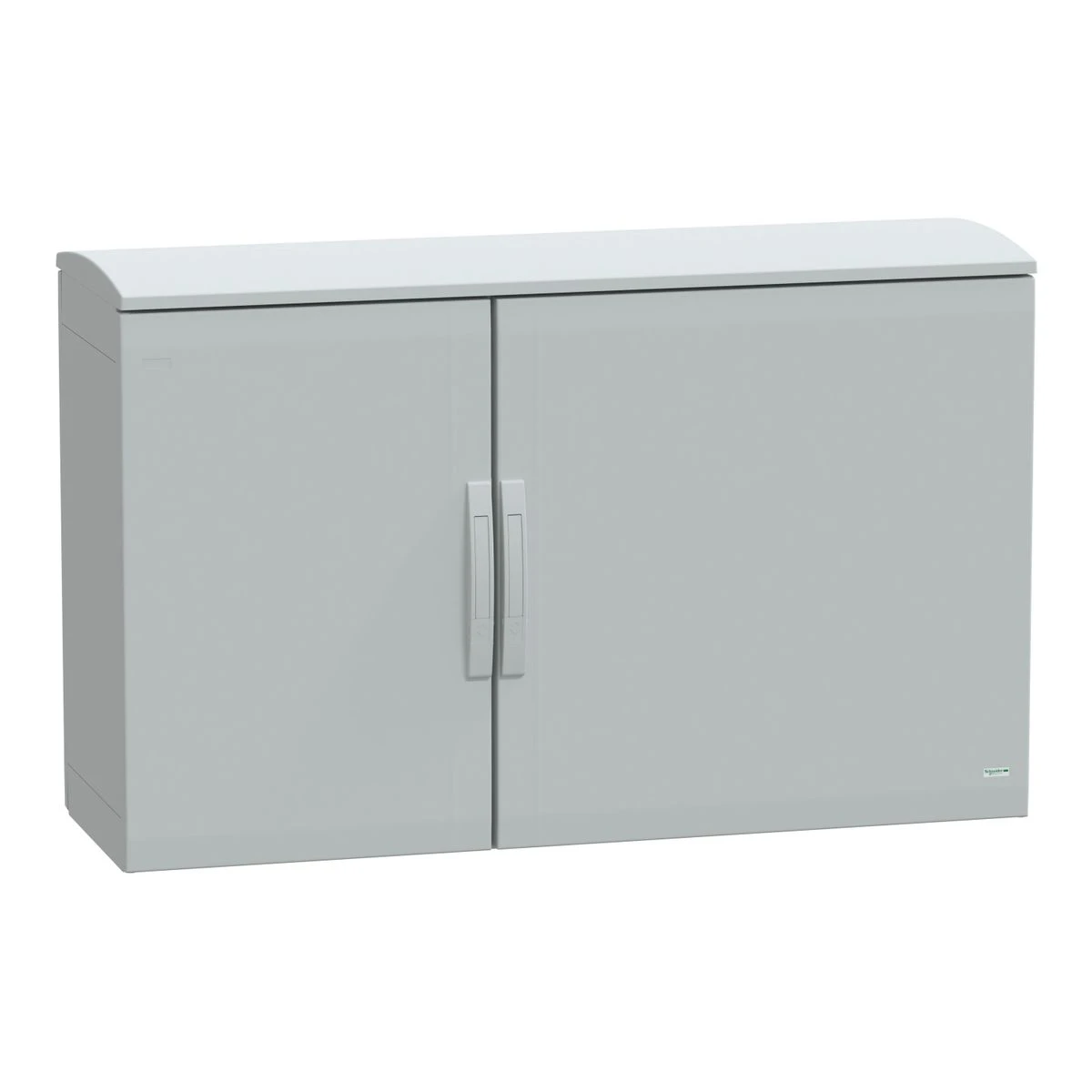

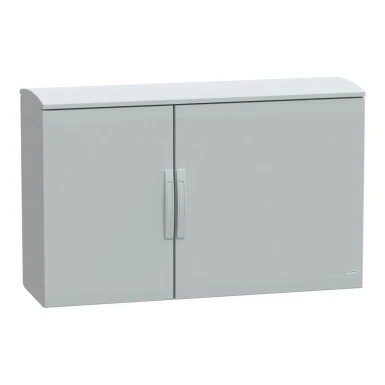

NSYPLAT7124G - Floor standing polyester enclosure, Thalassa PLA, plain door, ventilated canopy, 750x1250x420mm, IP44, IK10 - Schneider Electric

Expected in 2-4 weeks

1 443,90 € excl. VAT

1 761,55 € incl. VAT

Text About:

Floor standing polyester enclosure, Thalassa PLA, plain door, ventilated canopy, 750x1250x420mm, IP44, IK10 - Schneider Electric

In cart

1 761,55 €

SPECIFICATIONS

Main

Body type Open top and sealed bottom part assembled with side parts

Range Thalassa

nominal height 750 mm

Product Name Thalassa PLA

nominal width 1250 mm

nominal depth 420 mm

version PLAT

Complementary

Accessibility for operation Top
Rear
Front

electrical insulation class Class II

Product certifications Veritas

Door opening side Right and left (120 °)

Enclosure type Multi-purpose

Lock type 2 points handle lock, 5 mm double-bar

Product or component type Suitable enclosure

Device composition 1 top part
1 bottom part
2 side part
2 door
2 rear panel
1 canopy

Door type Plain front

removable parts Door by hinges
Rear panel by fixing element
Canopy by fixing element

Material Polyester reinforced with fibreglass

Colour Grey (RAL 7035)

Ik degree of protection IK10 conforming to IEC 62262 (plain door)

Number of doors 2 door(s)

Enclosure mounting Floor-standing

Environment

Ambient air temp for storage/transportation -35…90 °C

ip degree of protection IP44 conforming to IEC 60529 (with ventilated canopy)

standards IEC 62208

fire resistance 960 °C conforming to IEC 62208
