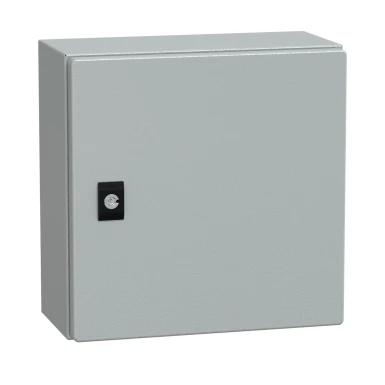

NSYCRN33150 - Spacial CRN plain door w/o mount.plate. H300xW300xD150 IP66 IK10 RAL7035.. - Schneider Electric

Expected in 2-4 weeks

53,97 € excl. VAT

65,84 € incl. VAT

Text About:

Spacial CRN plain door w/o mount.plate. H300xW300xD150 IP66 IK10 RAL7035.. - Schneider Electric

In cart

65,84 €

SPECIFICATIONS

Main

Body type Back welded with double profile forming a protected sealed area
Sides made from a single folded section

category Compact enclosure

Range Spacial

Enclosure nominal depth 150 mm

Product Name Spacial CRN

Enclosure nominal height 300 mm

Enclosure nominal width 300 mm

installation accessory type Wall-mounting

Complementary

Accessibility for operation Front

application Multi-purpose

surface finish Epoxy-polyester powder

Product certifications cUL
UL
DNV-GL

Door opening side Reversible (120 °)

Lock type 3 mm double-bar lock

Device composition 1 body
1 cable gland plate
1 door
1 lock

Door type Plain

removable parts Door by hinges
Cable gland plate by screws

Material Body: steel

Colour Grey (RAL 7035)

Ik degree of protection IK10 conforming to IEC 62262

Number of doors Front face: 1 door(s)

Mounting plate description Without mounting plate

Net weight 4.25 kg

Type of gland plate Standard

Environment

ip degree of protection IP66 conforming to IEC 60529

standards IEC 62208
