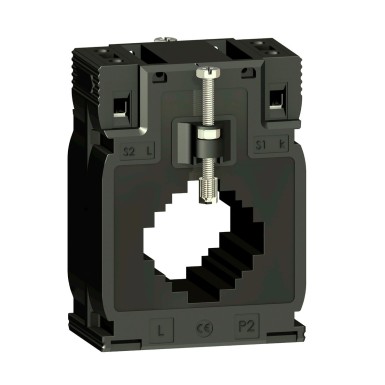

METSECT5MC025 - PowerLogic - current transformer - DIN 250/5A - bar 10x40 20x32 25x25 - Schneider Electric

Expected in 2-4 weeks EAN: 3606480618765

EAN: 3606480618765

30,65 € excl. VAT

37,40 € incl. VAT

Text About:

PowerLogic - current transformer - DIN 250/5A - bar 10x40 20x32 25x25 - Schneider Electric

In cart

37,40 €

SPECIFICATIONS

Main

Range PowerLogic

secondary current 5 A

type of product or equipment Transformateur de courant

Product Name CT

[ui] rated insulation voltage 3 kV

Complementary

electrical insulation class Classe B

[in] rated current 250 A

[ue] rated operational voltage < 720 V CA 50/60 Hz

[ith] conventional thermal current 15 kA

Handle front plate colour 95 mm extérieur :
41 mm intérieur :

[uimp] rated impulse withstand voltage 3 kV

accuracy class Classe 0,5 à 3 VA
Classe 1 à 5 VA

allowable dynamic current 2,5 Ith

diameter 32 mm

product weight 0,375 kg

cable outer diameter 32 mm

maximum safety factor 5

mode d'installation Encliquetable
Vis de verrouillage isolée
Par vis

width (w) 70 mm extérieur :
41 mm intérieur :

opening of the bars 40,5 x 10,5
32,5 x 20,5
25,5 x 25,5

filling Sans

current transformer ratio 250/5

current transformer type Tropicalisé pour barre et câble

depth 45 mm cadre :
65 mm total :

mounting bracket Rail DIN
Platine de montage
Jeu de barres

Environment

ip degree of protection IP20

product certificates EAC
CE

operating ambient temperature -25…60 °C

standards VDE 0414
CEI 61869-2

relative humidity 0…95 %
