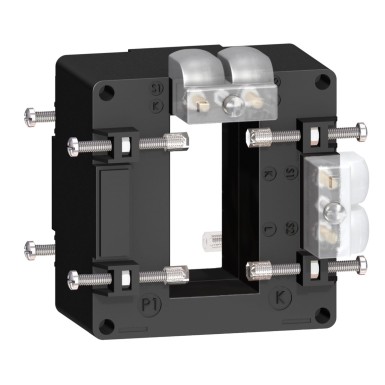

METSECT5DA100 - PowerLogic - current transformer - 1000/5A double output - 32x65mm bar - Schneider Electric

Expected in 2-4 weeks EAN: 3303431123674

EAN: 3303431123674

69,24 € excl. VAT

84,47 € incl. VAT

Text About:

PowerLogic - current transformer - 1000/5A double output - 32x65mm bar - Schneider Electric

In cart

84,47 €

SPECIFICATIONS

Main

Range PowerLogic

secondary current 5 A

type of product or equipment Transformateur de courant

Product Name CT

[ui] rated insulation voltage 3 kV

Complementary

electrical insulation class Classe B

[in] rated current 1000 A

[ue] rated operational voltage < 720 V CA 50/60 Hz

[ith] conventional thermal current 60 kA

Handle front plate colour 94 mm extérieur :
32 mm intérieur :

[uimp] rated impulse withstand voltage 3 kV

accuracy class Classe 0,5 à 15 VA
Classe 1 à 20 VA

allowable dynamic current 2,5 Ith

product weight 0,606 kg

maximum safety factor 5

mode d'installation Vis de verrouillage isolée

width (w) 90 mm extérieur :
65 mm intérieur :

opening of the bars 65 x 32

filling Avec

current transformer ratio 1000/5

current transformer type Tropicalisé pour barre

depth 40 mm cadre :
87 mm total :

mounting bracket Jeu de barres

Environment

ip degree of protection IP20

product certificates CE
EAC

operating ambient temperature -25…60 °C

standards VDE 0414
CEI 61869-2

relative humidity 0…95 %
