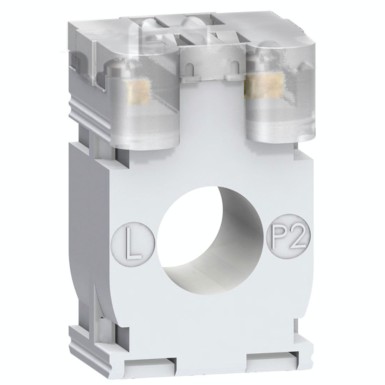

METSECT5CC025 - PowerLogic - current transformer - DIN 250/5A - cable<21mm - Schneider Electric

Expected in 2-4 weeks EAN: 3606480618772

EAN: 3606480618772

30,08 € excl. VAT

36,70 € incl. VAT

Text About:

PowerLogic - current transformer - DIN 250/5A - cable<21mm - Schneider Electric

In cart

36,70 €

SPECIFICATIONS

Main

Range PowerLogic

secondary current 5 A

type of product or equipment Transformateur de courant

Product Name CT

[ui] rated insulation voltage 3 kV

Complementary

electrical insulation class Classe B

[in] rated current 250 A

[ue] rated operational voltage < 720 V CA 50/60 Hz

[ith] conventional thermal current 15 kA

Handle front plate colour 65 mm extérieur :

[uimp] rated impulse withstand voltage 3 kV

accuracy class Classe 0,5 à 5 VA
Classe 1 à 6 VA
Classe 3 à 7 VA

allowable dynamic current 2,5 Ith

diameter 21 mm

product weight 0,175 kg

cable outer diameter 21 mm

maximum safety factor 5

mode d'installation Par vis
Encliquetable

width (w) 44 mm extérieur :

filling Avec

current transformer ratio 250/5

current transformer type Tropicalisé pour câble

depth 30 mm cadre :
37 mm total :

mounting bracket Platine de montage
Rail DIN

Environment

ip degree of protection IP20

product certificates CE

operating ambient temperature -25…60 °C

standards VDE 0414
CEI 61869-2

relative humidity 0…95 %
