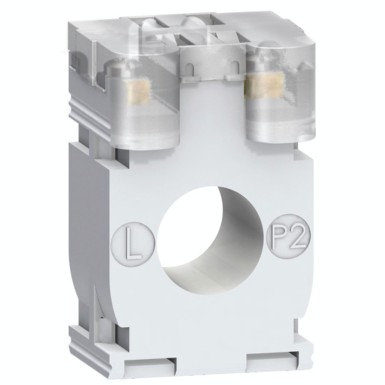

METSECT5CC015 - PowerLogic - current transformer - DIN 150/5A - cable<21mm - Schneider Electric

Expected in 2-4 weeks EAN: 3303431123452

EAN: 3303431123452

28,32 € excl. VAT

34,55 € incl. VAT

Text About:

PowerLogic - current transformer - DIN 150/5A - cable<21mm - Schneider Electric

In cart

34,55 €

SPECIFICATIONS

Main

Range PowerLogic

secondary current 5 A

type of product or equipment Transformateur de courant

Product Name CT

[ui] rated insulation voltage 3 kV

Complementary

electrical insulation class Classe B

[in] rated current 150 A

[ue] rated operational voltage < 720 V CA 50/60 Hz

[ith] conventional thermal current 9 kA

Handle front plate colour 65 mm extérieur :

[uimp] rated impulse withstand voltage 3 kV

accuracy class Classe 0,5 à 3 VA
Classe 1 à 4 VA
Classe 3 à 5 VA

allowable dynamic current 2,5 Ith

diameter 21 mm

product weight 0,175 kg

cable outer diameter 21 mm

maximum safety factor 5

mode d'installation Par vis
Encliquetable

width (w) 44 mm extérieur :

filling Avec

current transformer ratio 150/5

current transformer type Tropicalisé pour câble

depth 30 mm cadre :
37 mm total :

mounting bracket Rail DIN
Platine de montage

Environment

ip degree of protection IP20

product certificates CE
EAC

operating ambient temperature -25…60 °C

standards CEI 61869-2
VDE 0414

relative humidity 0…95 %
