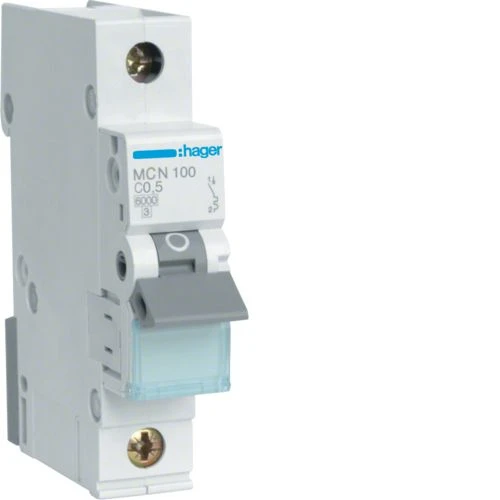

MCN100 - MCN100 - Hager

Pending restock
MCN100 - MCN100 - Hager - MCN100 - Hager - 0
MCN100 - MCN100 - Hager
11,09 € excl. VAT
13,75 € incl. VAT
Text About:
MCN100 - Hager
13,75 €
SPECIFICATIONS
Additional Information
curve C
type of pole 1 P
Main
Number of modules 1
rated operational voltage ue 230 / 400 V
Number of protected poles 1
rated short circuit breaking capacity icn ac according iec60898-1 6 kA
type of supply voltage AC
Complementary
air humidity protection for all climates
bottom connection alignement for modular devices Aligned terminal
concurrently switching n-neutral No
connection cross section of access and exit with screws, for flexible conductor 1 / 25 mm²
connection cross-sect. flexible conductor 1 / 25mm²
correction factor of magnetic tripping with 100 hz 1.1
correction factor of rating current for 2 devices placed side-by-side 1
depth of installed product 70 mm
electric endurance in number of cycles 4000
power loss per pole at in 0.1 W
rating current -10°c 0.6 A
search words Circuit breaker;Machine;Built-in machine;Built-in device;Installation machine;Rail mounted device;Automatic cutout;Controller circuit-breaker;Built-in distribution unit;Automatic plug-in fuse
[in] rated current 0.5 A
breaking capacity on 1 pole for it 400v nf 60947-2 3 kA
connection cross-sect. rigid cable 1 / 35mm²
correction factor of magnetic tripping with 200 hz 1.2
correction factor of rating current for 3 devices placed side-by-side 0.95
degree of pollution according to iec 60664 / iec 60947-2 2
height of installed product 83 mm
magnetic regulating currrent 5 / 10 In
number of mechanical operations 20000
rating current -15°c 0.7 A
top connection alignement for modular devices Aligned terminal
total power loss under in 0.1 W
class of energy limitation i²t 3
correction factor of magnetic tripping with 400 hz 1.5
correction factor of rating current for 4 and 5 devices placed side-by-side 0.9
min/maxi threshold value of the ac thermal operation 1.13 / 1.45 In
rating current -20°c 0.7 A
type of connection with screw
width of installed product 17.5 mm
connection cross-section of input and output with screws, for massive conductors 1 / 35 mm²
correction factor of magnetic tripping with 60 hz 1
correction factor of rating current for 6 devices placed side-by-side 0.85
min/maxi threshold value of the dc magnetic operation 7 / 15 In
rating current -25°c 0.7 A
storage/transport temperature -25…80 °C
tightening torque 2,8Nm
type of bottom connection for modular devices BIconnect
min/maxi threshold value of the dc thermal operation 1.13 / 1.45 In
rated ultimate short-circuit breaking capacity icu under 230v ac iec 60947-2 10 kA
rating current -5°c 0.6 A
Rated insulation voltage 500 V
rated ultimate short-circuit breaking capacity icu under 240v ac iec 60947-2 10 kA
rating current 0°c 0.6 A
type of top connection for modular devices with screw
rated service breaking capacity ics ac according iec 60898-1 6 kA
rating current 10°c 0.6 A
rated short circuit breaking capacity icn under 230v ac according iec60898-1 6 kA
rating current 15°c 0.6 A
rating current 20°c 0.6 A
rating current 25°c 0.5 A
rating current 30°c 0.5 A
rating current 35°c 0.5 A
rating current 40°c 0.5 A
rating current 45°c 0.5 A
rating current 50°c 0.5 A
rating current 55°c 0.5 A
rating current 5°c 0.6 A
frequency 50 to 60 Hz
rating current 60°c 0.5 A
rating current 65°c 0.4 A
rating current 70°c 0.4 A
rated impulse withstand voltage 4000 V
Poles description 1 P
Environment
altitude 2000 m
european directive weee concerned
protection index ip IP20
standard text EN 60898-1
operating temperature -25…70 °C
About this product

The MCN100 - MCN100 is engineered to fulfill the expectations of sector experts, such as switchboard fabricators, electricians, facility management firms, and industry fabricators. MCN100 affords impressive quality and asset for contractors in the electrical engineering industry. This MCN100 and other Circuit Brakers from Hager are procurable at the most favorable cost and turnaround time through BaltElec website, a distinguished vendor meeting the needs of experts in their procurement needs.

Technicians who have secured Hager Circuit Brakers have commonly applauded the manufacturer’s soundness. It has been highlighted that the outstanding functionality of MCN100 - MCN100 extends to a broad spectrum of use. Its supreme specifications make it right choice for assorted uses, assuring the success of your industrial, tertiary, and automation ventures.

Our specialists focuses in fulfilling industrial and tertiary professionals’ needs. We grasp the specific criteria and desires of our clients in the domain. By joining forces with BALTELEC, our partners get access to the superior price and availability of top-tier products like MCN100 - MCN100 from Hager at a budget-friendly price. Our registered accounts take advantage of added discounts and dedicated support.

Do not hesitate and acquire MCN100 - MCN100 at our reliable and convenient website. Don't delay in making this wise action that assures the ultimate quality and satisfies the targeted demands of purchasers like your business.

If you face any questions or concerns about MCN100 - MCN100 or any other Hager products, drop us a line or refer to our Help section section below. We have brought together answers to popular doubts to assist you further in making an informed decision about industrial and tertiary electrical components.

Remember, MCN100 - MCN100 from Hager is dependable, thrifty, and first-rate to industry peers in the Circuit Brakers category. Feel free to make it a part of your infrastructure straight away. Buy at BaltElec, your reliable retailer for all your Hager.

In our Baltelec.eu electronic store you will find MCN100 - MCN100 worth 13.52 €, which will be a secure and fashionable solution for your preferences. This article is developed by the Hager brand using the latest technologies and aligns with the highest standards of reliability and workmanship. We present commodities from the Circuit Brakers category that amalgamate endurance and utility, which is an superior alternative for various intents. In defiance of whether you necessitate appliances for small fabrication or for experienced industrial operation, MCN100 will be a faithful aide in your undertaking.

Baltelec tries to make the procuring process as comfortable and fast as practicable for our patrons. We offer detailed summaries and high-quality photos of MCN100 so that you can make an well-informed choice. A team of adepts is always ready to help you with any wonder in the Circuit Brakers section involved to the preferment and use of commodities. We are guaranteed that MCN100 will meet your wishes and become an needed element of your gear for just 13.52 €.

Customer Queries about MCN100:

  • What are the benefits of ordering MCN100 from Baltelec website?

    When ordering Hager MCN100 from BaltElec, you get genuine quality Hager Circuit Brakers products at the unbeatable prices and lead time. Additionally, registered professionalsget further discounts and first-class attention.

  • Can Baltelec consult if MCN100 is the right choice for my technical requirements?

    To ensure that MCN100 - MCN100 is appropriate for your technical requirements, we offer comprehensive information regarding product's technical specifications, features, and interoperability. You can access this data on the specific page of the device name. If you require more guidance, our support team representative is prepared to help you in making an well-informed choice.

  • Which warranty coverage is offered for Hager MCN100?

    Baltelec.eu team stands for the quality of the items we sell. The regular warranty coverage for Hager Circuit Brakers including Hager MCN100 is 1 year. Nevertheless, it is subject depending on the individual item, product category, and may even be extended. You can locate comprehensive warranty details on the MCN100 - MCN100 product page or by reaching out to our customer support team.

  • Do you provide global shipping for Hager MCN100 and other Hager items?

    Absolutely. In addition to serving Estonia, Latvia, Lithuania and other European Union countries, we offer global shipping for MCN100. Please note that shipping options, fees, and delivery schedule can vary depending on the destination. In the case of complicated orders, feel free to reach out to Baltelec.eu sales staff.

  • Do Hager MBC offered by BaltElec meet global standards for security and quality?

    Certainly. All Hager products available at BALTELEC web store adhere to global norms such as IEC 60898-1 standard and carry the CE certification. These norms ensure that the items fulfill rigorous safety, technological, reliability, and performance requirements.

  • Can BALTELEC offer guidance on integrating renewable energy solutions, such as solar power systems or wind energy converters, into my projects?

    Absolutely!  Baltelec website understands the significance of clean energy integration within projects. Our group of experts can assist you in selecting the appropriate Hager products, to integrate them into your renewable energy solutions}. We can provide guidance on combining solar power systems, wind energy converters, and additional sustainable options to optimize energy generation and efficiency.

  • Are there eco-friendly options available within the Circuit Brakers category to encourage environmental sustainability?

    Certainly! Baltelec.eu online store offers various green solutions within the Circuit Brakers category that are aligned with energy-saving goals. Our Hager products, including the MCN100, are crafted with energy efficiency in mind. By integrating these products into your electrical system, you can maximize energy usage and minimize environmental impact. Additionally, we provide affordable pricing for our green Hager products,, making them an economical choice for promoting sustainability.

  • Are MCN100 sold by BaltElec legitimate?

    Yes, we exclusively provide original Hager products, such as MCN100. We procure our products only through official distribution channels to assure their legitimacy and excellent standards.
