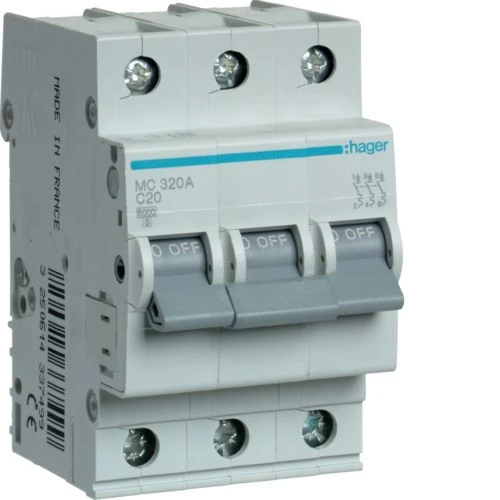

MC320A - MCB 3P 6kA C-20A 3M - Hager

Pending restock
MC320A - MCB 3P 6kA C-20A 3M - Hager - MCB 3P 6kA C-20A 3M - Hager - 0
MC320A - MCB 3P 6kA C-20A 3M - Hager
18,97 € excl. VAT
23,52 € incl. VAT
Text About:
MCB 3P 6kA C-20A 3M - Hager
23,52 €
SPECIFICATIONS
Additional Information
curve C
type of pole 3 P
Main
Number of modules 3
rated operational voltage ue 230 / 400 V
Number of protected poles 3
rated short circuit breaking capacity icn ac according iec60898-1 6 kA
type of supply voltage AC
Complementary
air humidity protection for all climates
bottom connection alignement for modular devices Aligned terminal
bottom removability for modular devices No
concurrently switching n-neutral No
connection cross section of access and exit with screws, for flexible conductor 1 / 25 mm²
connection cross-sect. flexible conductor 1 / 25mm²
correction factor of magnetic tripping with 100 hz 1.1
correction factor of rating current for 2 devices placed side-by-side 1
depth of installed product 70 mm
electric endurance in number of cycles 4000
power loss per pole at in 2.93 W
rating current -10°c 23.5 A
search words Miniature circuit breaker;mini automatic
[in] rated current 20 A
breaking capacity on 1 pole for it 400v nf 60947-2 3 kA
connection cross-sect. rigid cable 1 / 35mm²
correction factor of magnetic tripping with 200 hz 1.2
correction factor of rating current for 3 devices placed side-by-side 0.95
degree of pollution according to iec 60664 / iec 60947-2 2
height of installed product 83 mm
magnetic regulating currrent 5 / 10 In
number of mechanical operations 20000
rating current -15°c 23.9 A
top connection alignement for modular devices Aligned terminal
total power loss under in 8.7 W
class of energy limitation i²t 3
correction factor of magnetic tripping with 400 hz 1.5
correction factor of rating current for 4 and 5 devices placed side-by-side 0.9
min/maxi threshold value of the ac thermal operation 1.13 / 1.45 In
rating current -20°c 24.3 A
top removability for modular devices No
type of connection with screw
width of installed product 52.5 mm
connection cross-section of input and output with screws, for massive conductors 1 / 35 mm²
correction factor of magnetic tripping with 60 hz 1
correction factor of rating current for 6 devices placed side-by-side 0.85
min/maxi threshold value of the dc magnetic operation 7 / 15 In
rating current -25°c 24.6 A
storage/transport temperature -25…80 °C
tightening torque 2,8Nm
type of bottom connection for modular devices BIconnect
min/maxi threshold value of the dc thermal operation 1.13 / 1.45 In
rated short circuit breaking capacity icn under 400v ac according iec60898-1 6 kA
rating current -5°c 23.1 A
type of bottom rail clip for modular devices metallic
Rated insulation voltage 500 V
rating current 0°c 22.7 A
type of top connection for modular devices with screw
rated service breaking capacity ics ac according iec 60898-1 6 kA
rating current 10°c 21.8 A
type of top rail clip for modular devices NA
rated ultimate short-circuit breaking capacity icu under 415v ac iec 60947-2 10 kA
rating current 15°c 21.4 A
rating current 20°c 20.9 A
rating current 25°c 20.5 A
rating current 30°c 20 A
rating current 35°c 19.5 A
rating current 40°c 19 A
rating current 45°c 18.5 A
rating current 50°c 18 A
rating current 55°c 17.5 A
rating current 5°c 22.2 A
frequency 50 to 60 Hz
rating current 60°c 16.9 A
rating current 65°c 16.4 A
rating current 70°c 15.9 A
rated impulse withstand voltage 4000 V
Poles description 3 P
Environment
altitude 2000 m
european directive weee concerned
protection index ip IP20
standard text EN 60898-1
operating temperature -25…70 °C
About this product

The MC320A - MCB 3P 6kA C-20A 3M is conceived to meet the obligations of industry specialists, such as system integrators, electrical fitters, maintenance companies, and Original Equipment manufacturers. MC320A furnishes superior quality and merit for planners in the power systems industry. This MCB 3P 6kA C-20A 3M and other Circuit Brakers from Hager can be purchased at the unbeatable price and delivery schedule through BaltElec online store, a respected retailer catering to consultants in their provision needs.

Consumers who have bought Hager Circuit Brakers have repeatedly praised the brand's dependability. It has been mentioned that the superior workmanship of MC320A - MCB 3P 6kA C-20A 3M extends to a wide range of tasks. Its ideal properties make it right choice to satisfy a wide array of needs. Your developed solution will excel in quality, energy-efficiency and price.

Our professionals commits in providing for industrial and tertiary professionals’ needs. We comprehend the individual requirements and standards of our stakeholders in the industry. By collaborating with our team, your business acquire access to the top price and supply timeline of top-tier products like MC320A - MCB 3P 6kA C-20A 3M from Hager at the most competitive price. Our registered accounts get added discounts and dedicated support.

Take action and procure MC320A - MCB 3P 6kA C-20A 3M at our trusted and streamlined platform. Don't delay in making this intelligent action that affirms the supreme quality and meets the personalized prerequisites of customers like yourselves.

When you have any matters or concerns about MC320A - MCB 3P 6kA C-20A 3M or any other Hager products, communicate with us or refer to our FAQ section section below. We have brought together answers to typical problems to guide you further in making an considered decision about industrial and tertiary electrical components.

Remember, MC320A - MCB 3P 6kA C-20A 3M from Hager is secure, reasonable, and excellent to its competitors in the Circuit Brakers category. Make it a part of your configuration straight away. Shop with confidence at Baltelec webstore, your reliable retailer for all your Circuit Brakers.

In our Baltelec.eu internet store you will identify MCB 3P 6kA C-20A 3M - MC320A worth 23.14 €, which will be a sure and state-of-the-art solution for your preferences. This product is constructed by the Hager brand using the most recent technologies and adheres to the leading standards of protection and efficiency. We present goods from the Circuit Brakers category that fuse durability and utility, which is an excellent decision for various objectives. Independent of whether you want apparatus for small construction or for experienced industrial purpose, MCB 3P 6kA C-20A 3M will be a secure assistant in your duty.

Baltelec efforts to make the buying process as effortless and fast as workable for our clients. We offer detailed summaries and high-quality illustrations of MCB 3P 6kA C-20A 3M so that you can make an briefed choice. A team of masters is always ready to help you with any issues in the Circuit Brakers section pertaining to the electing and use of wares. We are trusting that MCB 3P 6kA C-20A 3M will meet your prospects and become an key element of your hardware for just 23.14 €.

Customer Queries about Hager MCB 3P 6kA C-20A 3M:

  • What are the benefits of ordering Hager MC320A from BaltElec?

    When ordering MC320A from baltelec.eu, you receive authentic quality Hager Circuit Brakers products at affordable prices and lead time. Additionally, returning customersget additional savings and priority service.

  • Can Baltelec consult if MC320A is appropriate for my contract?

    To make sure that MC320A - MCB 3P 6kA C-20A 3M is appropriate for your application, we provide comprehensive information concerning product's technical specifications, features, and applicable standards. You can access this information on the dedicated page of the item name. If you require further assistance, our customer service team is prepared to help you in making an educated decision.

  • What guarantee coverage is provided for MC320A - MCB 3P 6kA C-20A 3M?

    Baltelec team is committed to the quality of the items we deliver. The regular guarantee coverage for Hager Circuit Brakers including Hager MCB 3P 6kA C-20A 3M is 1 year. Nonetheless, it is subject depending on the individual product, category, and could be extended. You can find detailed guarantee details on the Hager MCB 3P 6kA C-20A 3M product page or by getting in touch with our support team team.

  • Do you provide global shipping for MC320A as well as other Hager items?

    Yes. In addition to catering to Estonia, Latvia, Lithuania and other European Union countries, we provide global shipping for Hager MC320A. Please be aware that delivery options, costs, and delivery schedule might differ depending on the destination. For complicated inquiries, feel free to reach out to Baltelec.eu sales representatives.

  • Do Hager MBC provided by BALTELEC comply with international standards for safety and quality?

    Of course. All Hager products offered at Baltelec online store meet international standards such as IEC 60898-1 and carry the CE certification. These norms assure that the products meet rigorous safety, technological, dependability, and functional criteria.

  • Can Baltelec.eu provide guidance on incorporating renewable energy solutions, such as solar power systems or wind energy converters, into my projects?

    Definitely!  Baltelec website recognizes the significance of clean energy incorporation within community. Our team of experts can help you in picking the right Hager items, to integrate them into your renewable energy solutions}. We can offer recommendations on integrating solar power systems, wind power converters, and additional sustainable options to optimize power generation and effectiveness.

  • Are there eco-friendly options offered within the Circuit Brakers category to encourage environmental sustainability?

    Absolutely! Baltelec website provides numerous energy-efficient solutions in the category of Circuit Brakers that are aligned with energy-saving goals. Our top-quality Hager products, such as the MC320A - MCB 3P 6kA C-20A 3M, are engineered with energy conservation in mind. By incorporating these products into your electrical system, you can maximize energy usage and lower environmental impact. Additionally, we provide attractive pricing for our eco-friendly Hager products,, making them an cost-effective choice for promoting sustainability.

  • Is MCB 3P 6kA C-20A 3M sold by BALTELEC legitimate?

    Yes, we exclusively sell authentic Hager products, including but not limited to MCB 3P 6kA C-20A 3M. We obtain our products exclusively through legitimate distribution channels to guarantee their authenticity and high performance.
