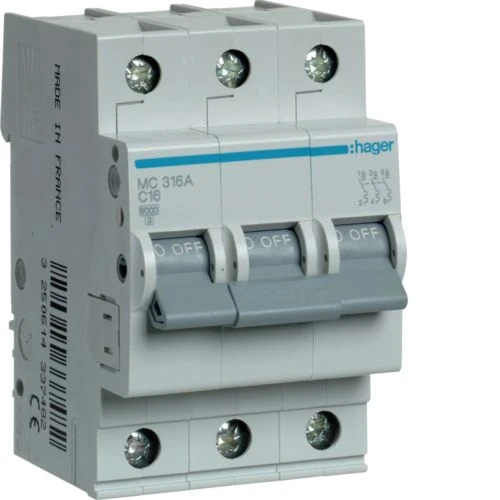

MC316A - MCB 3P 6kA C-16A 3M - Hager

Pending restock
MC316A - MCB 3P 6kA C-16A 3M - Hager - MCB 3P 6kA C-16A 3M - Hager - 0
MC316A - MCB 3P 6kA C-16A 3M - Hager - MCB 3P 6kA C-16A 3M - Hager - 0
MC316A - MCB 3P 6kA C-16A 3M - Hager
18,95 € excl. VAT
23,49 € incl. VAT
Text About:
MCB 3P 6kA C-16A 3M - Hager
 In cart
23,49 €
SPECIFICATIONS
Additional Information
curve C
type of pole 3 P
Main
Number of modules 3
rated operational voltage ue 230 / 400 V
Number of protected poles 3
rated short circuit breaking capacity icn ac according iec60898-1 6 kA
type of supply voltage AC
Complementary
air humidity protection for all climates
bottom connection alignement for modular devices Aligned terminal
concurrently switching n-neutral No
connection cross section of access and exit with screws, for flexible conductor 1 / 25 mm²
connection cross-sect. flexible conductor 1 / 25mm²
correction factor of magnetic tripping with 100 hz 1.1
correction factor of rating current for 2 devices placed side-by-side 1
depth of installed product 70 mm
electric endurance in number of cycles 4000
power loss per pole at in 2.14 W
rating current -10°c 19.71 A
search words Miniature circuit breaker;mini automatic
[in] rated current 16 A
connection cross-sect. rigid cable 1 / 35mm²
correction factor of magnetic tripping with 200 hz 1.2
correction factor of rating current for 3 devices placed side-by-side 0.95
degree of pollution according to iec 60664 / iec 60947-2 2
height of installed product 83 mm
magnetic regulating currrent 5 / 10 In
number of mechanical operations 20000
rating current -15°c 20.12 A
top connection alignement for modular devices Aligned terminal
total power loss under in 6.99 W
class of energy limitation i²t 3
correction factor of magnetic tripping with 400 hz 1.5
correction factor of rating current for 4 and 5 devices placed side-by-side 0.9
min/maxi threshold value of the ac thermal operation 1.13 / 1.45 In
rating current -20°c 20.53 A
type of connection with screw
width of installed product 52.5 mm
connection cross-section of input and output with screws, for massive conductors 1 / 35 mm²
correction factor of magnetic tripping with 60 hz 1
correction factor of rating current for 6 devices placed side-by-side 0.85
rating current -25°c 20.93 A
storage/transport temperature -25…80 °C
tightening torque 2,8Nm
type of bottom connection for modular devices BIconnect
rated short circuit breaking capacity icn under 400v ac according iec60898-1 6 kA
rating current -5°c 19.28 A
Rated insulation voltage 500 V
rating current 0°c 18.85 A
type of top connection for modular devices with screw
rated service breaking capacity ics ac according iec 60898-1 6 kA
rating current 10°c 17.95 A
rated ultimate short-circuit breaking capacity icu under 415v ac iec 60947-2 6 kA
rating current 15°c 17.48 A
rating current 20°c 17 A
rating current 25°c 16.51 A
rating current 30°c 16 A
rating current 35°c 15.47 A
rating current 40°c 14.93 A
rating current 45°c 14.37 A
rating current 50°c 13.78 A
rating current 55°c 13.16 A
rating current 5°c 18.4 A
frequency 50 to 60 Hz
rating current 60°c 12.52 A
rating current 65°c 11.84 A
rating current 70°c 11.12 A
rated impulse withstand voltage 4000 V
Poles description 3 P
Environment
altitude 2000 m
european directive weee concerned
protection index ip IP20
standard text EN 60898-1
operating temperature -25…70 °C
About this product

The MC316A - MCB 3P 6kA C-16A 3M is created to accommodate the prerequisites of sector experts, such as switchgear manufacturers, electrical fitters, maintenance companies, and Industry suppliers. MC316A furnishes remarkable durability and gain for planners in the energy management industry. This MCB 3P 6kA C-16A 3M and other Circuit Brakers from Hager are accessible at the lowest cost and fulfillment period through BALTELEC website, a respected distributor fulfilling the needs of practitioners in their obtaining needs.

Engineers who have opted for Hager Circuit Brakers have repeatedly applauded the producer's trustworthiness. It has been stated that the notable effectiveness of MC316A - MCB 3P 6kA C-16A 3M extends to a extensive scope of purposes. Its premium qualities make it perfect choice to meet diverse demands, assuring the success of your industrial, tertiary, and automation ventures.

Our team focuses in addressing industrial and tertiary professionals’ needs. We recognize the individual needs and expectations of our clients in the realm. By aligning with our professionals, our partners receive access to the leading price and inventory of first-rate products like MC316A - MCB 3P 6kA C-16A 3M from Hager at a competitive price. Baltelec account members get further discounts and dedicated support.

Don't wait and order MC316A - MCB 3P 6kA C-16A 3M at our trusted and user-friendly online store. Don't delay in making this thoughtful investment that guarantees the utmost quality and caters to the individual requirements of users like your organization.

Should you have any doubts or concerns about MC316A - MCB 3P 6kA C-16A 3M or any other Hager products, reach out to us or refer to our Support section section below. We have assembled answers to popular concerns to benefit you further in making an considered decision about industrial and tertiary electrical components.

Remember, MC316A - MCB 3P 6kA C-16A 3M from Hager is safe, affordable, and high-quality to other vendors in the Circuit Brakers category. Feel free to make it a part of your installation right now. Purchase at BaltElec, your trusted partner for all your Hager.

In our Baltelec.eu virtual store you will discover MCB 3P 6kA C-16A 3M - MC316A worth 23.12 €, which will be a constant and new solution for your wishes. This object is formulated by the Hager brand using the state-of-the-art technologies and meets the maximum standards of reliability and efficacy. We furnish merchandise from the Circuit Brakers category that unite lastingness and operability, which is an exceptional decision for various uses. Not minding of whether you crave apparatus for small assembly or for adept industrial application, MCB 3P 6kA C-16A 3M will be a faithful associate in your job.

Baltelec works to make the buying process as comfortable and fast as realizable for our patrons. We offer detailed narratives and high-quality illustrations of MCB 3P 6kA C-16A 3M so that you can make an aware choice. A team of connoisseurs is always ready to help you with any wonder in the Circuit Brakers section relevant to the picking and use of articles. We are persuaded that MCB 3P 6kA C-16A 3M will meet your demands and become an essential element of your equipment for just 23.12 €.

Frequently Asked Questions about MC316A - MCB 3P 6kA C-16A 3M:

  • What are the advantages of buying Hager MC316A from Baltelec website?

    When your purchase MC316A from Baltelec website, you will get genuine high-quality Hager Circuit Brakers products at competitive prices and delivery schedule. Furthermore, registered professionalstake pleasure in additional savings and priority service.

  • How can I determine if Hager MC316A is appropriate for my technical requirements?

    To confirm that MC316A is suitable for your application, we provide comprehensive details regarding product's specs, technical characteristics, and interoperability. You can access this information on the product page of the item model. If you seek additional help, our support team team is available to help you in reaching an well-informed choice.

  • What warranty coverage is provided for MC316A?

    BALTELEC emphasizes the reliability of the items we sell. The regular guarantee coverage for Hager Circuit Brakers including MC316A is 1 year. Nevertheless, it varies according to the individual product, category, and could be extended. You can discover specific warranty information on the MC316A product page or by reaching out to our support team team.

  • Do you offer worldwide shipping for MC316A as well as other Hager products?

    Certainly. Apart from serving Estonia, Latvia, Lithuania and other European Union countries, we offer worldwide shipping for MC316A. Please note that shipping options, fees, and shipping times might vary based on the shipping location. For bulk inquiries, feel free to reach out to BaltElec sales representatives.

  • Do Hager MBC offered by BALTELEC meet global standards for safety and quality?

    Of course. All Hager products offered at BALTELEC web store adhere to global norms such as IEC 60898-1 and carry the CE certification. These standards ensure that the items fulfill stringent security, technical, dependability, and performance criteria.

  • Can Baltelec.eu offer support on incorporating renewable energy solutions, such as solar energy systems or wind power converters, into my projects?

    Yes!  Baltelec.eu understands the importance of renewable energy incorporation within community. Our group of specialists can assist you in selecting the appropriate Hager items, to integrate them into your renewable energy solutions}. We can provide recommendations on integrating solar energy systems, wind energy converters, and other sustainable options to optimize energy generation and effectiveness.

  • Are there energy-efficient options available within the Circuit Brakers category to encourage green energy initiatives?

    Absolutely! Baltelec.eu online store provides numerous eco-friendly solutions in the category of Circuit Brakers that are in line with environmental sustainability objectives. Our brand's Hager products, like the MCB 3P 6kA C-16A 3M, are crafted with energy conservation in mind. By integrating these products into your electrical system, you can maximize energy usage and minimize environmental impact. Additionally, we present attractive pricing for our green Hager products,, making them an economical choice for advocating sustainability.

  • Are MCB 3P 6kA C-16A 3M sold by BaltElec original?

    Absolutely, we solely sell genuine Hager products, including but not limited to MC316A. We obtain our products solely through authorized distribution channels to assure their legitimacy and excellent standards.
