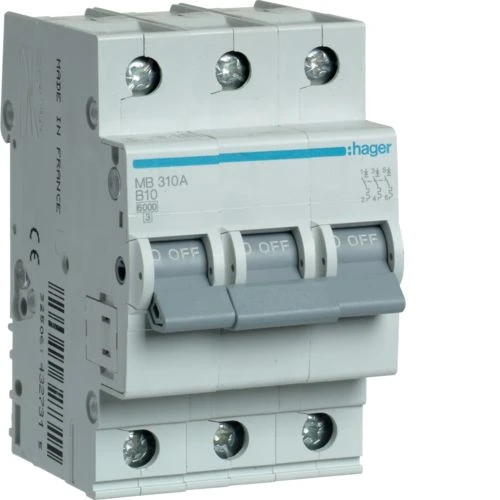

MB310A - MCB 3P 6kA B-10A 3M - Hager

Pending restock
MB310A - MCB 3P 6kA B-10A 3M - Hager - MCB 3P 6kA B-10A 3M - Hager - 0
MB310A - MCB 3P 6kA B-10A 3M - Hager - MCB 3P 6kA B-10A 3M - Hager - 0
MB310A - MCB 3P 6kA B-10A 3M - Hager
17,78 € excl. VAT
22,05 € incl. VAT
Text About:
MCB 3P 6kA B-10A 3M - Hager
 In cart
22,05 €
SPECIFICATIONS
Additional Information
curve B
type of pole 3 P
Main
Number of modules 3
rated operational voltage ue 230 / 400 V
Number of protected poles 3
rated short circuit breaking capacity icn ac according iec60898-1 6 kA
type of supply voltage AC
Complementary
air humidity protection for all climates
bottom connection alignement for modular devices Aligned terminal
bottom removability for modular devices No
concurrently switching n-neutral No
connection cross section of access and exit with screws, for flexible conductor 1 / 25 mm²
connection cross-sect. flexible conductor 1 / 25mm²
correction factor of magnetic tripping with 100 hz 1.1
correction factor of rating current for 2 devices placed side-by-side 1
depth of installed product 70 mm
electric endurance in number of cycles 4000
power loss per pole at in 1.95 W
rating current -10°c 12.1 A
[in] rated current 10 A
breaking capacity on 1 pole for it 400v nf 60947-2 3 kA
connection cross-sect. rigid cable 1 / 35mm²
correction factor of magnetic tripping with 200 hz 1.2
correction factor of rating current for 3 devices placed side-by-side 0.95
degree of pollution according to iec 60664 / iec 60947-2 2
height of installed product 83 mm
magnetic regulating currrent 3 / 5 In
number of mechanical operations 20000
rating current -15°c 12.3 A
top connection alignement for modular devices Aligned terminal
total power loss under in 5.8 W
class of energy limitation i²t 3
correction factor of magnetic tripping with 400 hz 1.5
correction factor of rating current for 4 and 5 devices placed side-by-side 0.9
min/maxi threshold value of the ac thermal operation 1.13 / 1.45 In
rating current -20°c 12.5 A
top removability for modular devices No
type of connection with screw
width of installed product 52.5 mm
connection cross-section of input and output with screws, for massive conductors 1 / 35 mm²
correction factor of magnetic tripping with 60 hz 1
correction factor of rating current for 6 devices placed side-by-side 0.85
min/maxi threshold value of the dc magnetic operation 4 / 7 In
rating current -25°c 12.7 A
storage/transport temperature -25…80 °C
tightening torque 2,8Nm
type of bottom connection for modular devices BIconnect
min/maxi threshold value of the dc thermal operation 1.13 / 1.45 In
rated short circuit breaking capacity icn under 400v ac according iec60898-1 6 kA
rated ultimate short-circuit breaking capacity icu under 230v ac iec 60947-2 10 kA
rating current -5°c 11.8 A
type of bottom rail clip for modular devices metallic
Rated insulation voltage 500 V
rating current 0°c 11.6 A
type of top connection for modular devices with screw
rated service breaking capacity ics ac according iec 60898-1 6 kA
rating current 10°c 11.1 A
type of top rail clip for modular devices NA
rated ultimate short-circuit breaking capacity icu under 415v ac iec 60947-2 10 kA
rating current 15°c 10.8 A
rating current 20°c 10.6 A
rating current 25°c 10.3 A
rating current 30°c 10 A
rating current 35°c 9.7 A
rating current 40°c 9.4 A
rating current 45°c 9.1 A
rating current 50°c 8.8 A
rating current 55°c 8.5 A
rating current 5°c 11.3 A
frequency 50 to 60 Hz
rating current 60°c 8.1 A
rating current 65°c 7.8 A
rating current 70°c 7.5 A
rated impulse withstand voltage 4000 V
Poles description 3 P
Environment
altitude 2000 m
european directive weee concerned
protection index ip IP20
standard text EN 60898-1
operating temperature -25…70 °C
About this product

The MB310A - MCB 3P 6kA B-10A 3M is designed to meet the conditions of business buyers, such as circuit designers, cable technicians, service providers, and Industry suppliers. MB310A provides excellent performance and benefits for specialists in the electromechanical industry. This MCB 3P 6kA B-10A 3M and other Circuit Brakers from Hager can be obtained at the finest pricing and distribution time through BALTELEC, a distinguished vendor supporting practitioners in their procurement needs.

Contractors who have chosen Hager Circuit Brakers have commonly commended the creator's stability. It has been mentioned that the exceptional operation of MB310A - MCB 3P 6kA B-10A 3M extends to a wide range of use. Its excellent features make it suitable to satisfy a wide array of needs, ensuring your industrial, tertiary and automation projects success.

BALTELEC focuses in accommodating industrial and tertiary professionals’ needs. We get the special demands and demands of our consumers in the realm. By cooperating with BaltElec, your enterprise receive access to the superior price lists and availability of first-rate products like MB310A - MCB 3P 6kA B-10A 3M from Hager at an attractive price. Our registered accounts take advantage of further discounts and dedicated support.

Don't wait and obtain MB310A - MCB 3P 6kA B-10A 3M at our well-established and simple web store. Don't delay in making this smart selection that ensures the highest quality and achieves the distinct criteria of users like your company.

If you encounter any questions or concerns about MB310A - MCB 3P 6kA B-10A 3M or any other Hager products, email us or refer to our Frequently Asked Queries section below. We have collected answers to standard uncertainties to back you further in making an wise decision about industrial and tertiary electrical components.

Remember, MB310A - MCB 3P 6kA B-10A 3M from Hager is consistent, economical, and outstanding to market challengers in the Circuit Brakers category. Don't hesitate to make it a part of your installation today. Shop with confidence at BaltElec, your reliable retailer for all your professional electrical equipment and automation needs.

In our Baltelec.eu e-commerce store you will find MCB 3P 6kA B-10A 3M - MB310A worth 21.69 €, which will be a constant and fashionable solution for your wants. This produce is formulated by the Hager brand using the advanced technologies and meets the optimal standards of guarding and competence. We provide items from the Circuit Brakers category that associate resilience and utility, which is an superior possibility for various tasks. In spite of whether you crave devices for small production or for specialized industrial application, MCB 3P 6kA B-10A 3M will be a safe partner in your job.

Baltelec works to make the acquiring process as simple and fast as feasible for our patrons. We offer detailed depictions and high-quality images of MCB 3P 6kA B-10A 3M so that you can make an educated choice. A team of professionals is always ready to help you with any queries in the Circuit Brakers section related to the determining and use of equipment. We are convinced that MCB 3P 6kA B-10A 3M will meet your wishes and become an key element of your apparatus for just 21.69 €.
