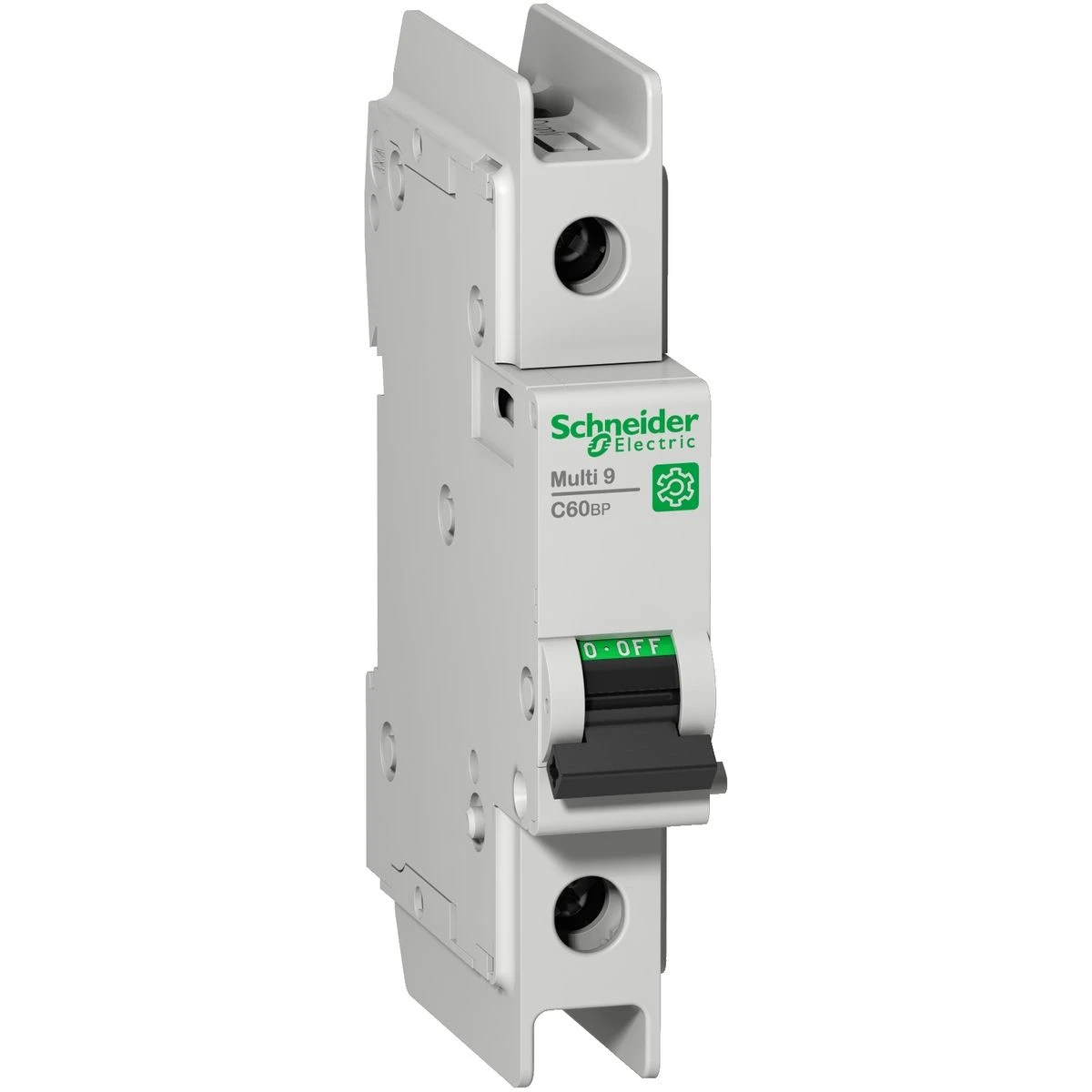

M9F42110 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) - Schneider Electric

Pending restock
M9F42110 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) - Schneider Electric - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) - Schneider Electric - 0
M9F42110 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) - Schneider Electric
18,54 € excl. VAT
22,99 € incl. VAT
Text About:
Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) - Schneider Electric
22,99 €
SPECIFICATIONS
Additional Information
curve C
Main
Device short name C60BP
Range Multi9
Number of protected poles 1
Product Name Multi9 C60
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 500 V AC conforming to EN/IEC 60947-2
Complementary
9 mm pitches 2
[in] rated current 10 A at 25 °C conforming to EN/IEC 60947-2
[ue] rated operational voltage 240 V AC 50/60 Hz
415 V AC 50/60 Hz
60 V DC
[ics] rated service breaking capacity 2.25 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC
7.5 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC
2.25 kA 75 % conforming to GB 14048.2 - 415 V AC
7.5 kA 75 % conforming to GB 14048.2 - 240 V AC
15 kA 75 % conforming to GB 14048.2 - 60 V DC
15 kA 75 % conforming to EN/IEC 60947-2 - 60 V DC
Control type Toggle
Product certifications IEC
CCC
CSA
UL
Handle front plate colour 103 mm
Product or component type Miniature circuit-breaker
tightening torque 2.5 N.m top or bottom
[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
Connections - terminals Tunnel type terminal (top or bottom)1…25 mm² (AWG 18...AWG 8) - rigid
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 8) - flexible with ferrule
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 8) - flexible
Contact position indication Yes
Device application Distribution
width (w) 18 mm
Colour Grey
Local signalling ON/OFF indication
Mounting mode Clip-on
wire stripping length 14 mm for top or bottom connection
Earth-leakage protection Without
Mounting support DIN rail
depth 72 mm
mechanical durability 20000 cycles
electrical durability 10000 cycles
magnetic trip limit 8.5 x In +/- 20 % AC
12 x In +/- 20 % DC
Network type AC
DC
Pollution degree 3 conforming to EN/IEC 60947-2
Provision for padlocking Padlockable
Suitability for isolation Yes conforming to EN/IEC 60947-2
Poles description 1P
Environment
Ambient air temp for storage/transportation -40…80 °C
ip degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
operating altitude 0...2000 m
ambient air temperature for operation -30…70 °C
standards EN/IEC 60947-2
GB 14048.2
UL 489
CSA C22.2 No 5
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The M9F42110 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) is designed to address the expectations of business buyers, such as control panel builders, wiring experts, facility management firms, and equipment creators. M9F42110 offers extraordinary capability and value for planners in the power management industry. This Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) and other iC60 from Schneider Electric can be acquired at the unbeatable price and lead time through BALTELEC online store, an independent dealer helping engineers in their obtaining needs.

Contractors who have procured Schneider Electric iC60 have commonly approved the brand's sturdiness. It has been mentioned that the extraordinary energy-efficiency of M9F42110 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) extends to a variety of applications. Its excellent features make it fitting for diverse needs, ensuring your industrial, tertiary and automation projects success.

Our team specializes in serving industrial and tertiary professionals’ needs. We get the specific requirements and desires of our patrons in the domain. By teaming up with BALTELEC, your business get access to the optimal rates and availability of premium products like M9F42110 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) from Schneider Electric at cost-effective price. Our registered accounts get special savings and premium support.

Seize the moment and purchase M9F42110 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) at our well-established and intuitive virtual storefront. Don't delay in making this sensible decision that ensures the paramount quality and satisfies the customized prerequisites of customers like you.

In case you have any concerns or concerns about M9F42110 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) or any other Schneider Electric products, contact us or refer to our FAQ section section below. We have curated answers to usual queries to advise you further in making an wise decision about industrial and tertiary electrical components.

Remember, M9F42110 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) from Schneider Electric is steady, affordable, and high-quality to other manufacturers in the iC60 category. Make it a part of your infrastructure without delay. Get at BALTELEC, your steady distributor for all your iC60.

In our Baltelec.eu web store you will discover Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) - M9F42110 worth 22.62 €, which will be a reliable and new solution for your expectations. This merchandise is developed by the Schneider Electric brand using the state-of-the-art technologies and complies with the maximum standards of defense and competence. We give produce from the iC60 category that blend toughness and usefulness, which is an premium election for various objectives. Independent of whether you necessitate hardware for small formation or for skilled industrial use, Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) will be a trustworthy adjunct in your assignment.

Baltelec tries to make the obtaining process as manageable and fast as doable for our clients. We offer detailed reports and high-quality shots of Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) so that you can make an educated choice. A team of adepts is always ready to help you with any queries in the iC60 section related to the deciding and use of items. We are assured that Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 10A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) will meet your expectations and become an crucial element of your inventory for just 22.62 €.
