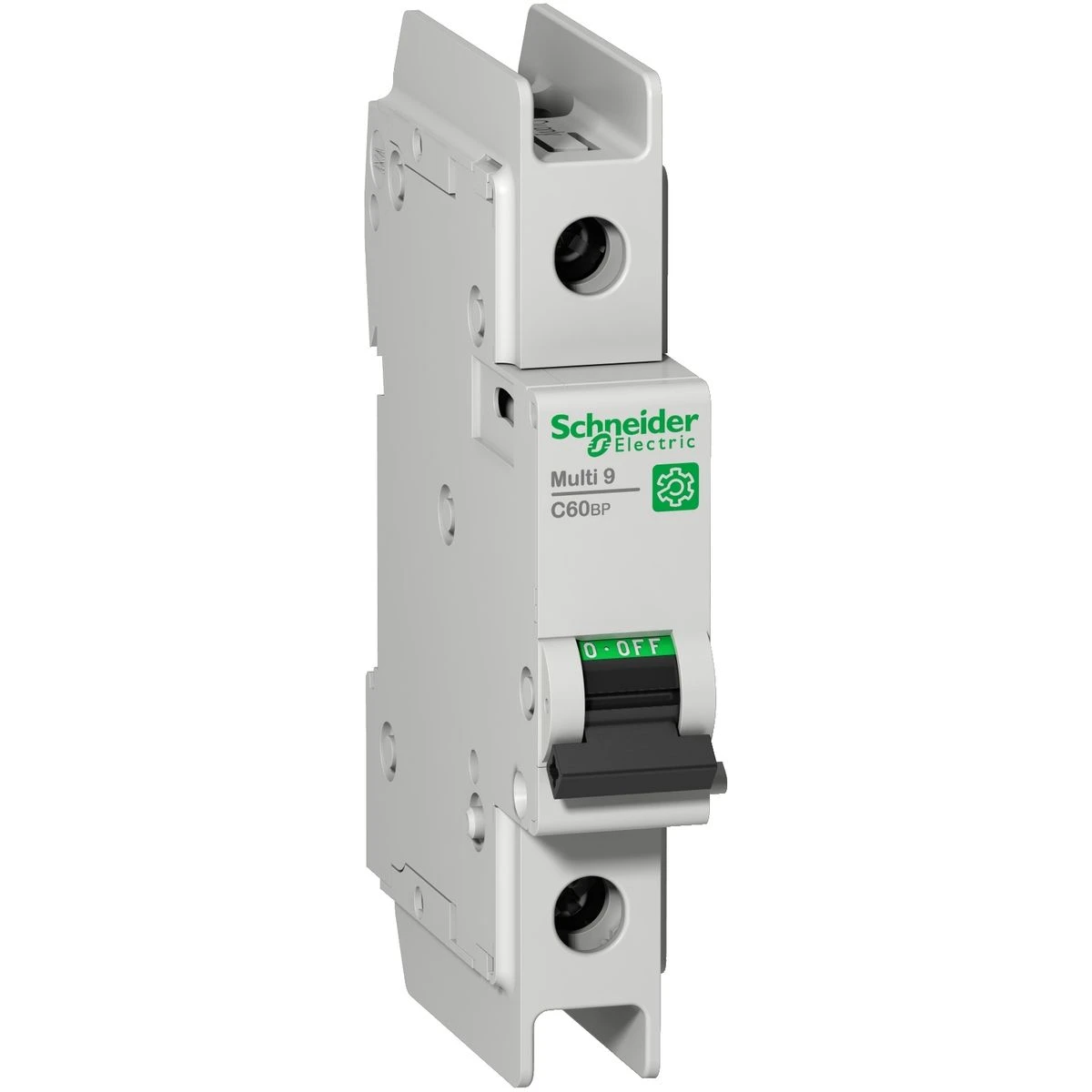

M9F42103 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) - Schneider Electric

Pending restock
M9F42103 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) - Schneider Electric - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) - Schneider Electric - 0
M9F42103 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) - Schneider Electric
24,73 € excl. VAT
30,67 € incl. VAT
Text About:
Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) - Schneider Electric
30,67 €
SPECIFICATIONS
Additional Information
curve C
Main
Device short name C60BP
Range Multi9
Number of protected poles 1
Product Name Multi9 C60
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 500 V AC conforming to EN/IEC 60947-2
Complementary
9 mm pitches 2
[in] rated current 3 A at 25 °C conforming to EN/IEC 60947-2
[ue] rated operational voltage 240 V AC 50/60 Hz
415 V AC 50/60 Hz
60 V DC
[ics] rated service breaking capacity 2.25 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC
7.5 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC
2.25 kA 75 % conforming to GB 14048.2 - 415 V AC
7.5 kA 75 % conforming to GB 14048.2 - 240 V AC
15 kA 75 % conforming to GB 14048.2 - 60 V DC
15 kA 75 % conforming to EN/IEC 60947-2 - 60 V DC
Control type Toggle
Product certifications IEC
CCC
CSA
UL
Handle front plate colour 103 mm
Product or component type Miniature circuit-breaker
tightening torque 2.5 N.m top or bottom
[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
Connections - terminals Tunnel type terminal (top or bottom)1…25 mm² (AWG 18...AWG 8) - rigid
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 8) - flexible with ferrule
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 8) - flexible
Contact position indication Yes
Device application Distribution
width (w) 18 mm
Colour Grey
Local signalling ON/OFF indication
Mounting mode Clip-on
wire stripping length 14 mm for top or bottom connection
Earth-leakage protection Without
Mounting support DIN rail
depth 72 mm
mechanical durability 20000 cycles
electrical durability 10000 cycles
magnetic trip limit 8.5 x In +/- 20 % AC
12 x In +/- 20 % DC
Network type AC
DC
Pollution degree 3 conforming to EN/IEC 60947-2
Provision for padlocking Padlockable
Suitability for isolation Yes conforming to EN/IEC 60947-2
Poles description 1P
Environment
Ambient air temp for storage/transportation -40…80 °C
ip degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
operating altitude 0...2000 m
ambient air temperature for operation -30…70 °C
standards EN/IEC 60947-2
GB 14048.2
UL 489
CSA C22.2 No 5
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The M9F42103 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) is devised to fulfill the necessities of professional buyers, such as system integrators, electricians, maintenance service providers, and Original Equipment manufacturers. M9F42103 dispenses superior reliability and merit for professionals in the control systems industry. This Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) and other iC60 from Schneider Electric are on offer at the most favorable cost and supply period through BaltElec website, a reputable provider catering to industry experts in their buying needs.

Contractors who have selected Schneider Electric iC60 have regularly commended the creator's stability. It has been outlined that the outstanding efficiency of M9F42103 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) extends to a multitude of applications. Its supreme traits make it well-suited solution for assorted uses, promoting success in your industrial, tertiary, and automation efforts.

BaltElec team dedicates in addressing industrial and tertiary professionals’ needs. We understand the individual expectations and expectations of our patrons in the market. By aligning with us, you secure access to the finest rates and lead time of superior products like M9F42103 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) from Schneider Electric at an economical price. Baltelec account members receive special savings and preferred assistance.

Don't wait and acquire M9F42103 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) at our reliable and convenient e-commerce site. Don't delay in making this astute decision that affirms the superior quality and fulfills the particular requirements of clients like your team.

If there are any problems or concerns about M9F42103 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) or any other Schneider Electric products, communicate with us or refer to our Assistance center section below. We have compiled answers to habitual issues to advise you further in making an educated decision about industrial and tertiary electrical components.

Remember, M9F42103 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) from Schneider Electric is unfailing, thrifty, and elite to its rivals in the iC60 category. Make it a part of your installation instantly. Acquire at BALTELEC, your trusted partner for all your Schneider Electric.

In our Baltelec.eu dot-com store you will discover Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) - M9F42103 worth 30.17 €, which will be a safe and new solution for your expectations. This goods is constructed by the Schneider Electric brand using the freshest technologies and aligns with the leading standards of safety and efficiency. We offer goods from the iC60 category that associate sturdiness and functionality, which is an premium alternative for various objectives. Without consideration of whether you seek tools for small generation or for adept industrial exertion, Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) will be a trustworthy aide in your occupation.

Baltelec works to make the obtaining process as convenient and fast as possible for our consumers. We offer detailed portrayals and high-quality portrayals of Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) so that you can make an briefed choice. A team of professionals is always ready to help you with any issues in the iC60 section associated to the preferment and use of goods. We are guaranteed that Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 3A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) will meet your prospects and become an necessary element of your tools for just 30.17 €.
