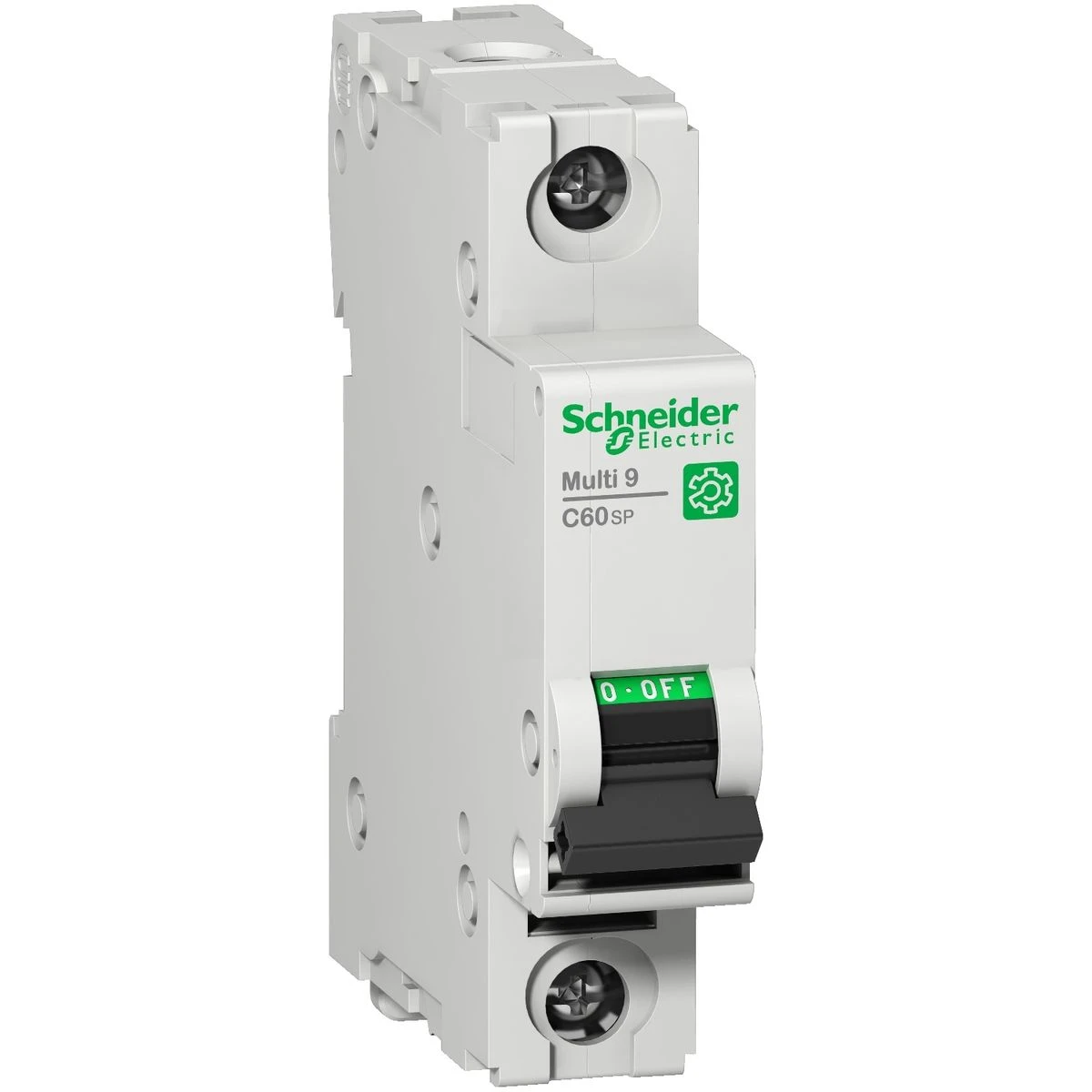

M9F22105 - Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) - Schneider Electric

Pending restock
M9F22105 - Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) - Schneider Electric - Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) - Schneider Electric - 0
M9F22105 - Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) - Schneider Electric
17,01 € excl. VAT
21,09 € incl. VAT
Text About:
Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) - Schneider Electric
21,09 €
SPECIFICATIONS
Additional Information
curve C
Main
Device short name C60SP
Range Multi9
Number of protected poles 1
Product Name Multi9 C60
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 500 V AC conforming to EN/IEC 60947-2
Complementary
9 mm pitches 2
[in] rated current 5 A at 25 °C conforming to EN/IEC 60947-2
[ue] rated operational voltage 240 V AC 50/60 Hz
415 V AC 50/60 Hz
60 V DC
[ics] rated service breaking capacity 2.25 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC
7.5 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC
20 kA 100 % conforming to EN/IEC 60947-2 - 60 V DC
2.25 kA 75 % conforming to GB 14048.2 - 415 V AC
7.5 kA 75 % conforming to GB 14048.2 - 240 V AC
20 kA 100 % conforming to GB 14048.2 - 60 V DC
Control type Toggle
Product certifications IEC
CCC
UR
CSA
Handle front plate colour 81 mm
Product or component type Miniature circuit-breaker
tightening torque 2.5 N.m top or bottom
[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
Connections - terminals Tunnel type terminal (top or bottom)1…25 mm² (AWG 18...AWG 8) - rigid
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 8) - flexible with ferrule
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 8) - flexible
Contact position indication Yes
Device application Distribution
width (w) 18 mm
Colour Grey
Local signalling ON/OFF indication
Mounting mode Clip-on
wire stripping length 14 mm for top or bottom connection
Earth-leakage protection Without
Mounting support DIN rail
depth 72 mm
mechanical durability 20000 cycles
electrical durability 10000 cycles
magnetic trip limit 8.5 x In +/- 20 % AC
12 x In +/- 20 % DC
Network type AC
DC
Pollution degree 3 conforming to EN/IEC 60947-2
Provision for padlocking Padlockable
Suitability for isolation Yes conforming to EN/IEC 60947-2
Poles description 1P
Environment
Ambient air temp for storage/transportation -40…80 °C
ip degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
operating altitude 0...2000 m
ambient air temperature for operation -30…70 °C
standards EN/IEC 60947-2
GB 14048.2
UL 1077
CSA C22.2 No 235
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The M9F22105 - Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) is engineered to cater to the conditions of industry specialists, such as electrical contractors, wiremen, repair companies, and primary equipment suppliers. M9F22105 delivers exceptional robustness and benefits for consultants in the electrical engineering industry. This Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) and other iC60 from Schneider Electric are procurable the best price and turnaround time through BaltElec online store, a distinguished provider helping contractors in their gathering needs.

Consumers who have opted for Schneider Electric iC60 have persistently applauded the creator's trustworthiness. It has been highlighted that the remarkable capability of M9F22105 - Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) extends to a multitude of functions. Its superior specifications make it perfect choice for diverse needs, assuring the success of your industrial, tertiary, and automation ventures.

BALTELEC centers in meeting industrial and tertiary professionals’ needs. We recognize the particular specifications and requirements of our stakeholders in the sector. By working with our professionals, your company acquire access to the optimal price lists and lead time of excellent products like M9F22105 - Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) from Schneider Electric at a value-for-money price. Our registered accounts appreciate more savings and top-tier service.

Move quickly and grab M9F22105 - Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) at our reliable and user-friendly website. Don't delay in making this intelligent pick that warrants the top quality and satisfies the customized requests of buyers like your firm.

If there are any matters or concerns about M9F22105 - Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) or any other Schneider Electric products, connect with us or refer to our FAQ section section below. We have provided answers to common concerns to serve you further in making an informed decision about industrial and tertiary electrical components.

Remember, M9F22105 - Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) from Schneider Electric is secure, value-priced, and premier to other producers in the iC60 category. Make it a part of your setup instantly. Purchase at baltele.eu, your consistent provider for all your professional electrical equipment and automation needs.

In our Baltelec.eu electronic store you will uncover Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) - M9F22105 worth 20.75 €, which will be a constant and fashionable solution for your preferences. This product is engineered by the Schneider Electric brand using the modern technologies and meets the peak standards of safety and competence. We present merchandise from the iC60 category that blend endurance and workability, which is an exceptional selection for various functions. In defiance of whether you demand devices for small output or for skilled industrial application, Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) will be a secure assistant in your job.

Baltelec ventures to make the procuring process as comfortable and fast as possible for our consumers. We offer detailed depictions and high-quality depictions of Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) so that you can make an informed choice. A team of masters is always ready to help you with any uncertainties in the iC60 section associated to the choice and use of goods. We are positive that Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 5A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) will meet your criteria and become an crucial element of your tools for just 20.75 €.
