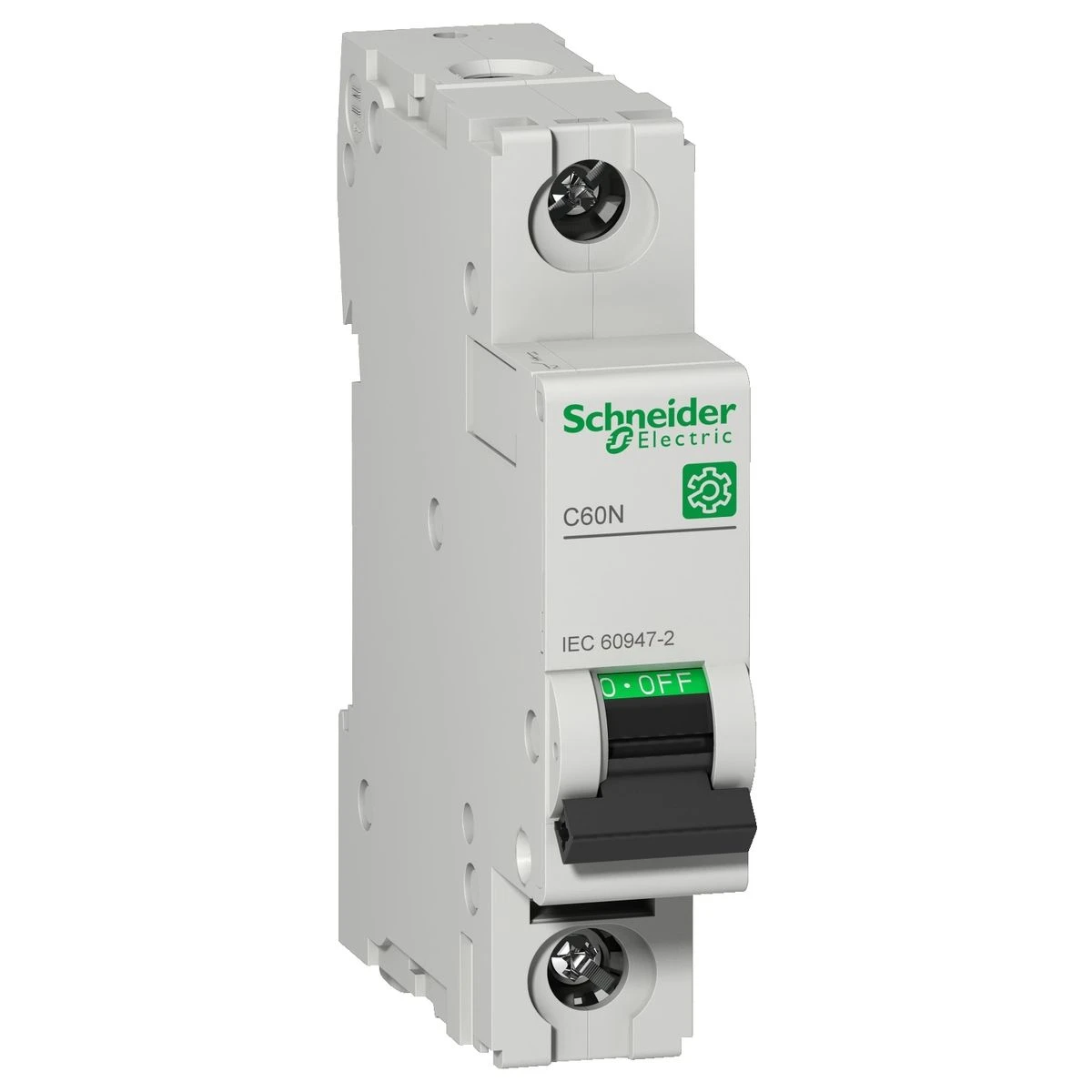

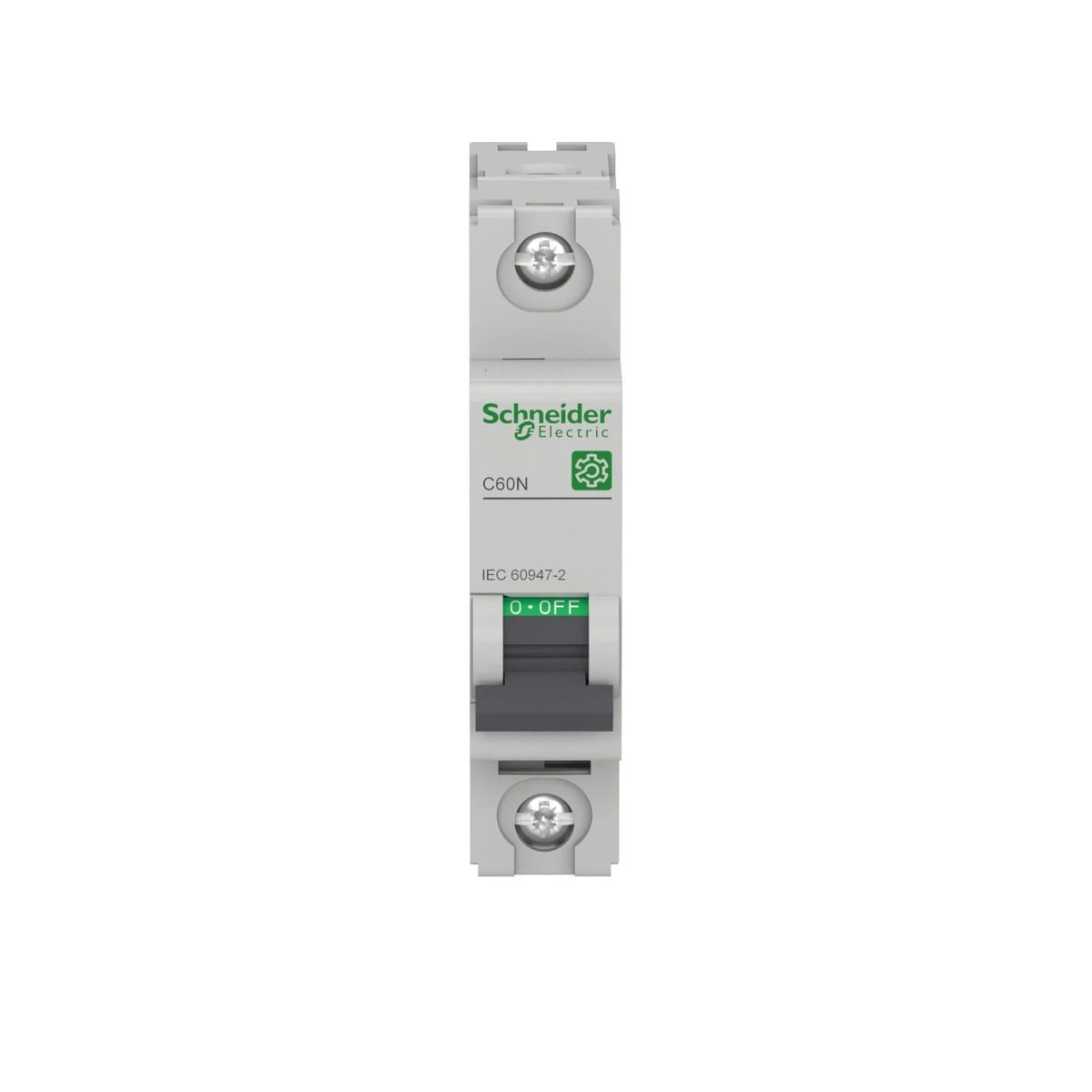

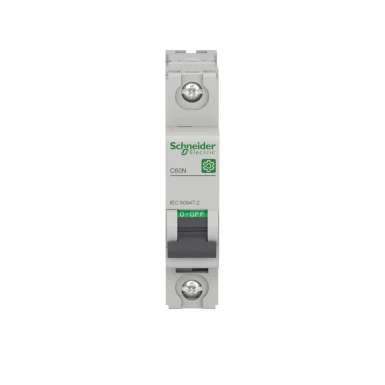

M9F11106 - Miniature circuit breaker (MCB), Multi9 C60N, 1P, 6A, C curve, 10kA (IEC/EN 60947-2) - Schneider Electric

Expected in 2-4 weeks

M9F11106 - Miniature circuit breaker (MCB), Multi9 C60N, 1P, 6A, C curve, 10kA (IEC/EN 60947-2) - Schneider Electric

11,98 € excl. VAT

14,62 € incl. VAT

Text About:

Miniature circuit breaker (MCB), Multi9 C60N, 1P, 6A, C curve, 10kA (IEC/EN 60947-2) - Schneider Electric

In cart

14,62 €

SPECIFICATIONS

Additional Information

curve C

Main

Device short name C60N

Range Multi9

Number of protected poles 1

Product Name Multi9 C60

Trip unit technology Thermal-magnetic

[ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2

Complementary

9 mm pitches 2

[in] rated current 6 A at 50 °C conforming to EN/IEC 60947-2

[ue] rated operational voltage 240 V AC 50/60 Hz between phase and neutral
415 V AC 50/60 Hz between phase and neutral
<= 72 V DC

[ics] rated service breaking capacity 7.5 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC 50/60 Hz
2.25 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC 50/60 Hz
15 kA 100 % conforming to EN/IEC 60947-2 - <= 72 V DC

Control type Toggle

Product certifications EAC
KC
CCC

Handle front plate colour 81 mm

Product or component type Miniature circuit-breaker

tightening torque 2 N.m top or bottom

[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2

Connections - terminals Tunnel type terminal (top or bottom)1…25 mm² - rigid
Tunnel type terminal (top or bottom)1…25 mm² - flexible
Tunnel type terminal (top or bottom)1…25 mm² - flexible with ferrule

Contact position indication Yes

Device application Distribution

width (w) 18 mm

network frequency 50/60 Hz

Colour Grey

Local signalling ON/OFF indication

Mounting mode Clip-on

Heat dissipation 2.7 W at 240 V - 6 A

Net weight 0.12 kg

wire stripping length 14 mm for top or bottom connection

Earth-leakage protection Separate block

Mounting support DIN rail

depth 72 mm

mechanical durability 20000 cycles

electrical durability 10000 cycles

magnetic trip limit 8.5 x In +/- 20 % AC
12 x In +/- 20 % DC

Network type AC
DC

Pollution degree 3 conforming to EN/IEC 60947-2

Limitation class 3

Provision for padlocking Padlockable

Suitability for isolation Yes conforming to EN/IEC 60947-2

Poles description 1P

Utilisation category Category A conforming to EN/IEC 60947-2

Environment

Ambient air temp for storage/transportation -40…80 °C

ip degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529

ambient air temperature for operation -30…70 °C

overvoltage category IV

standards EN/IEC 60947-2

Tropicalisation 2 conforming to IEC 60068-1

relative humidity 95 % at 55 °C
