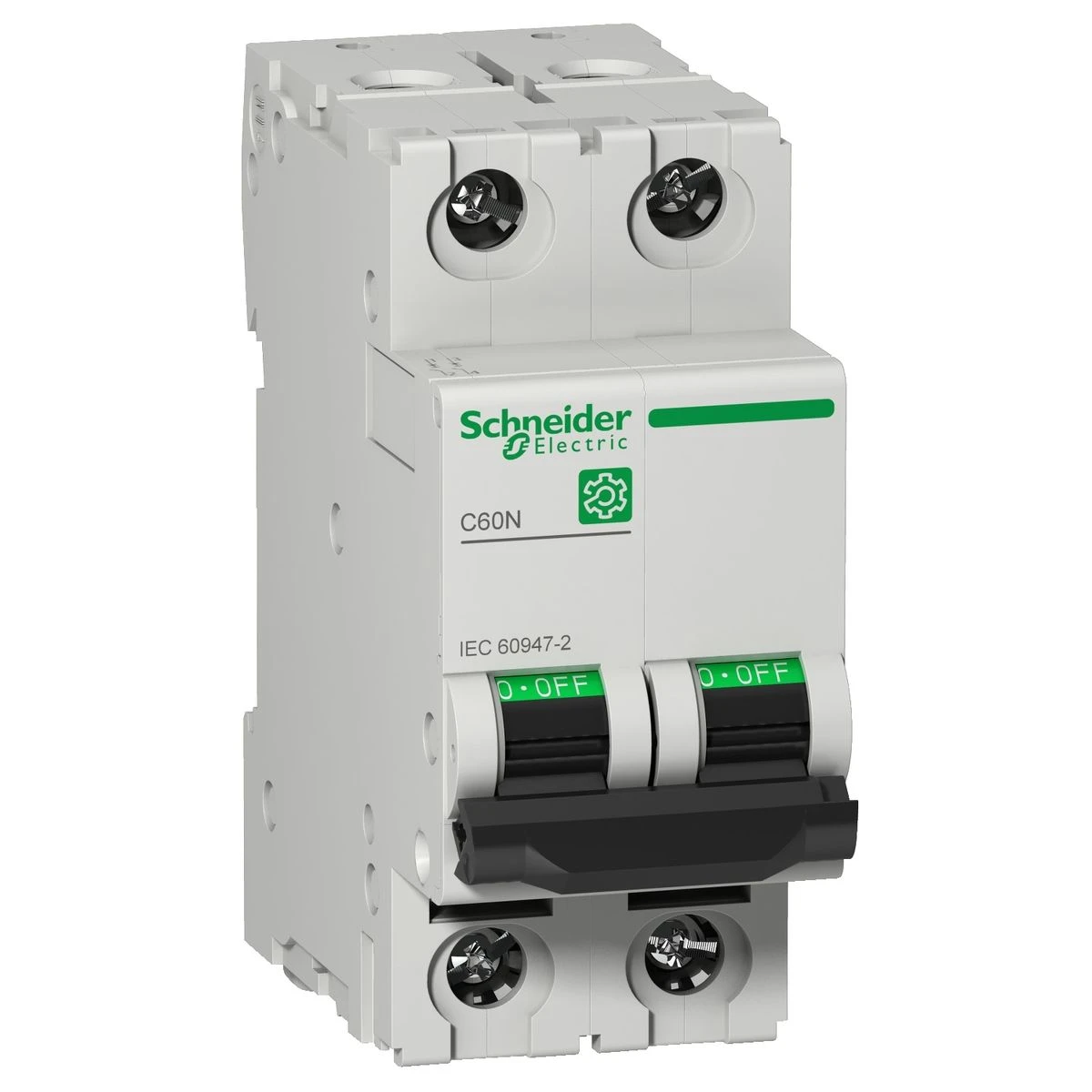

M9F10220 - Miniature circuit breaker (MCB), Multi9 C60N, 2P, 20A, B curve, 10kA (IEC/EN 60947-2) - Schneider Electric

Expected in 2-4 weeks

17,93 €

Text About:

Miniature circuit breaker (MCB), Multi9 C60N, 2P, 20A, B curve, 10kA (IEC/EN 60947-2) - Schneider Electric

In cart

17,93 €

SPECIFICATIONS

Additional Information

curve B

Main

Device short name C60N

Range Multi9

Number of protected poles 2

Product Name Multi9 C60

Trip unit technology Thermal-magnetic

[ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2

Complementary

9 mm pitches 4

[in] rated current 20 A at 50 °C conforming to EN/IEC 60947-2

[ue] rated operational voltage 240 V AC 50/60 Hz between phases
415 V AC 50/60 Hz between phases
440 V AC 50/60 Hz between phases
<= 125 V DC

[ics] rated service breaking capacity 7.5 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC 50/60 Hz
16 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC 50/60 Hz
4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
20 kA 100 % conforming to EN/IEC 60947-2 - <= 125 V DC

Control type Toggle

Product certifications EAC
CCC

Handle front plate colour 81 mm

Product or component type Miniature circuit-breaker

tightening torque 2 N.m top or bottom

[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2

Connections - terminals Tunnel type terminal (top or bottom)1…25 mm² - rigid
Tunnel type terminal (top or bottom)1…25 mm² - flexible
Tunnel type terminal (top or bottom)1…25 mm² - flexible with ferrule

Contact position indication Yes

Device application Distribution

width (w) 36 mm

network frequency 50/60 Hz

Colour Grey

Local signalling ON/OFF indication

Mounting mode Clip-on

Heat dissipation 6 W at 415 V - 20 A

Net weight 0.24 kg

wire stripping length 14 mm for top or bottom connection

Earth-leakage protection Separate block

Mounting support DIN rail

depth 72 mm

mechanical durability 20000 cycles

electrical durability 10000 cycles

magnetic trip limit 4 x In +/- 20 % AC
5.7 x In +/- 20 % DC

Network type AC
DC

Pollution degree 3 conforming to EN/IEC 60947-2

Provision for padlocking Padlockable

Suitability for isolation Yes conforming to EN/IEC 60947-2

Poles description 2P

Utilisation category Category A conforming to EN/IEC 60947-2

Environment

Ambient air temp for storage/transportation -40…80 °C

ip degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529

ambient air temperature for operation -30…70 °C

overvoltage category IV

standards EN/IEC 60947-2

Tropicalisation 2 conforming to IEC 60068-1

relative humidity 95 % at 55 °C
