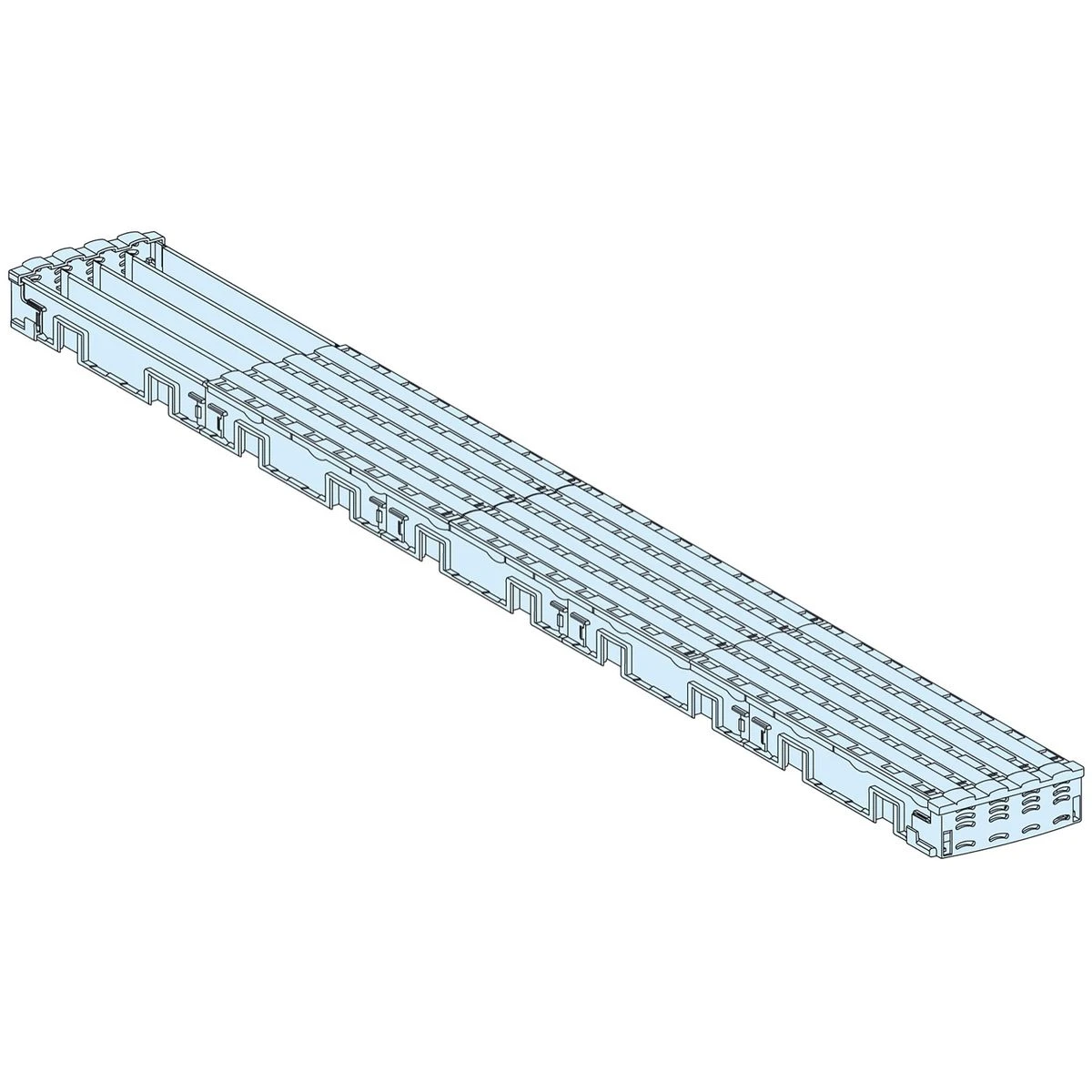

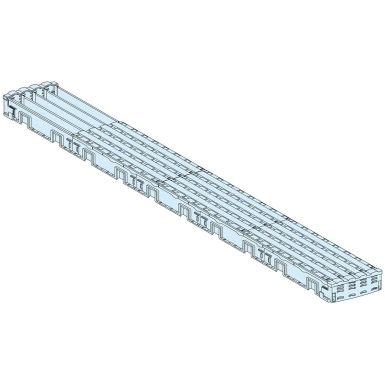

LVS04107 - Linergy BW - Insulated busbar - 125 A 3P - L=750 mm (Powerclip) - Schneider Electric

Expected in 2-4 weeks EAN: 3606481871770

EAN: 3606481871770

78,30 € excl. VAT

95,53 € incl. VAT

Text About:

Linergy BW - Insulated busbar - 125 A 3P - L=750 mm (Powerclip) - Schneider Electric

In cart

95,53 €

SPECIFICATIONS

Main

product range Linergy

Range Linergy

[ipk] rated peak withstand current 20 kA

busbar description Barre isolée

type of product or equipment Jeu de barres

i²t at switch-on 72250 kA².s

Product Name Linergy BW

description d'installation Cellule - largeur 650 mm
Armoire - largeur 600 mm
Coffret - largeur 600 mm
Gaine d'armoire - largeur 300 mm
Gaine de coffret - largeur 300 mm
Coffret Pack

[ui] rated insulation voltage 500 V CA

Complementary

[ie] rated operational current 125 A

range compatibility PrismaSeT (PrismaSeT G) boîtier
PrismaSeT (PrismaSeT P) boîtier

[icw] rated short-time withstand current 8,5 kA (1s)

length [l] 750 mm

allowable current 125 A

batch quantity Lot de 1

Handle front plate colour 85 mm

[uimp] rated impulse withstand voltage 8 kV

product weight 1,96 kg

facility management Vertical, position de fonctionnement : arrière

no connection Raccordement tous les 25 mm

type of connection with the busbar Trou fileté

depth 35 mm

Poles description 3P

Environment

degree of protection (ip) IPxx B

product certificates ASTA

standards CEI 61439-1
CEI 61439-2
