LVS03805 - Front plate, PrismaSeT P and G, plain type, or enclosure W600/W650, 5M - Schneider Electric

Expected in 2-4 weeks EAN: 3606481873842

EAN: 3606481873842

18,05 € excl. VAT

22,01 € incl. VAT

Text About:

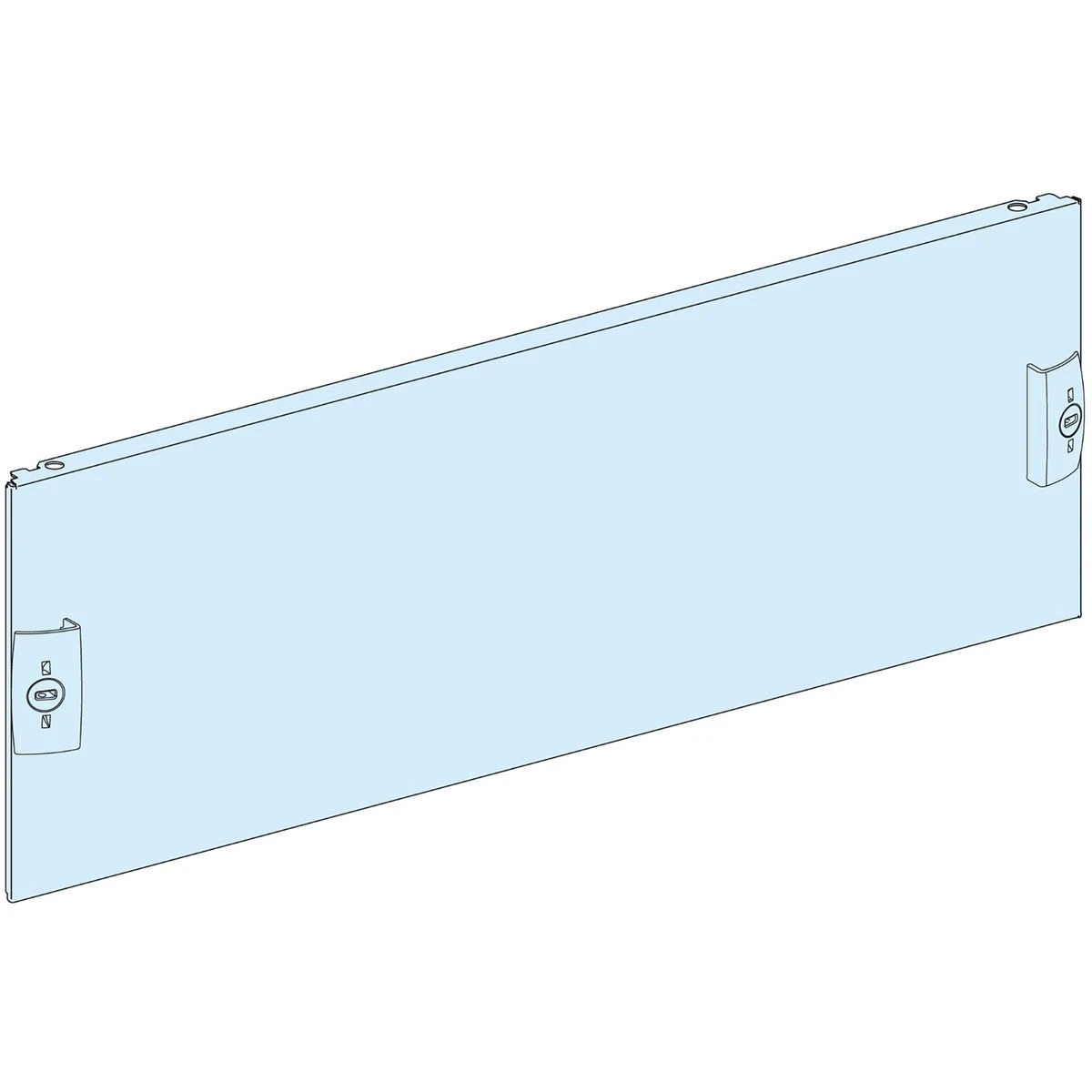

Front plate, PrismaSeT P and G, plain type, or enclosure W600/W650, 5M - Schneider Electric

In cart

22,01 €

SPECIFICATIONS

Main

Accessory category Accessoire d'installation

product range PrismaSeT G
PrismaSeT P

Range PrismaSeT

type of product or equipment Plastron

type of breastplate Pleine

product installed TeSys: fixe TeSys U - horizontal installation
Altistart: ATS01N

Complementary

range compatibility PrismaSeT (PrismaSeT G) boîtier
PrismaSeT (PrismaSeT P) unité fonctionnelle
PrismaSeT (PrismaSeT Pack 160) boîtier

surface finish Mat
Texturé

description of the box/cabinet Armoire - largeur 600 mm
Coffret - largeur 600 mm
Cellule - largeur 650 mm profondeur 400 mm
Coffret Pack - largeur 555 mm

batch quantity Lot de 1

Handle front plate colour 250 mm

matter Acier

product weight 1,04 kg

functional unit 600 mm PrismaSeT G armoire TeSys TeSys U fixe horizontal 3P 9 direct 5
600 mm PrismaSeT G coffret TeSys TeSys U fixe horizontal 3P 9 direct 5
600 mm PrismaSeT G armoire Altistart ATS01N 9 5
600 mm PrismaSeT G coffret Altistart ATS01N 9 5
600 mm PrismaSeT G armoire Altistart ATS01N 2 5
600 mm PrismaSeT G coffret Altistart ATS01N 2 5
650 mm 400 mm PrismaSeT P cellule Altistart ATS01N 9 5
650 mm 400 mm PrismaSeT P cellule Altistart ATS01N 2 5
555 mm Pack 160 coffret Pack TeSys TeSys U fixe horizontal 3P 9 direct 5
555 mm Pack 160 coffret Pack Altistart ATS01N 9 5
555 mm Pack 160 coffret Pack Altistart ATS01N 2 5

number of vertical modules (50 mm) 5

width (w) 500 mm

Colour Blanc (RAL 9003)

Poles description 9 x3P: rail modulaire support: TeSys U horizontal installation

Environment

product certificates ASTA

standards CEI 61439-2
CEI 61439-1

protective treatment Électrophorèse et poudre d'époxy-polyester polymérisée à chaud
