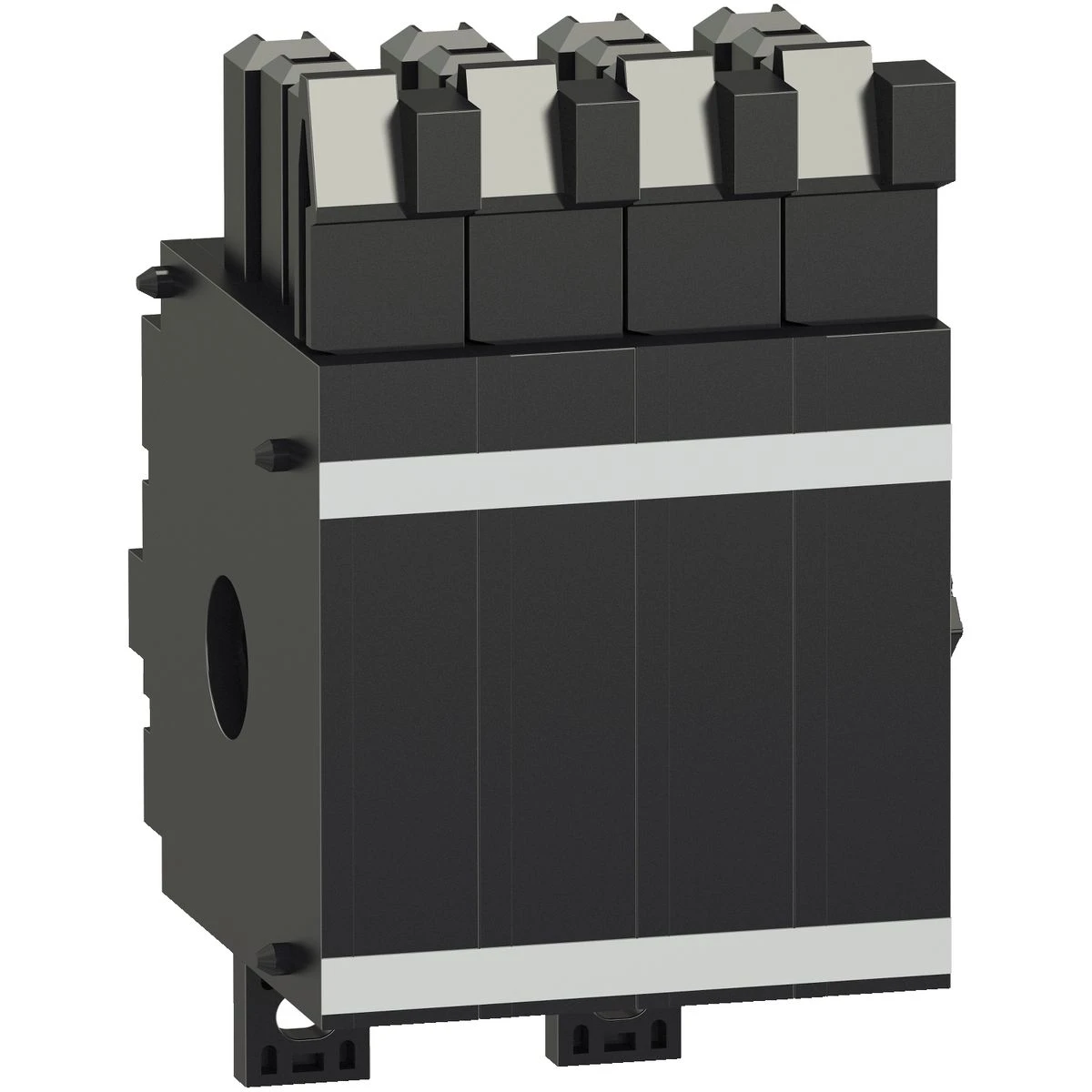

LV864922SP - MasterPact MTZ2/3 - 1 additional block of 4 OF contacts - spare part - Schneider Electric
Expected in 2-4 weeks
EAN: 3606481187987
163,46 € excl. VAT
199,43 € incl. VAT
Text About:
MasterPact MTZ2/3 - 1 additional block of 4 OF contacts - spare part - Schneider Electric
SPECIFICATIONS
Main
composition of signaling contacts
4 "OF"
Range
MasterPact
name of the device
4 OF
type of product or equipment
Bloc de contact auxiliaire
charge minimum
2 mA à 15 V
type of offer
Pièce de rechange
Complementary
application
Contrôle
range compatibility
MasterPact (MasterPacT MTZ2)
MasterPact (MasterPacT MTZ3)
MasterPact (MasterPacT MTZ3)
[ics] rated service breaking capacity
AC-12: 10 A at 240/380 V CA 50/60 Hz conforming to EN/CEI 60947-2
AC-12: 10 A at 480 V CA 50/60 Hz conforming to EN/CEI 60947-2
AC-12: 6 A at 690 V CA 50/60 Hz conforming to EN/CEI 60947-2
DC-12: 10 A at 24/48 V CC conforming to EN/CEI 60947-2
DC-12: 10 A at 125 V CC conforming to EN/CEI 60947-2
DC-12: 3 A at 250 V CC conforming to EN/CEI 60947-2
8 A at 480 V CA 50/60 Hz conforming to UL 489
6 A at 600 V CA 50/60 Hz conforming to UL 489
6 A at 250 V CC conforming to UL 489
AC-12: 10 A at 480 V CA 50/60 Hz conforming to EN/CEI 60947-2
AC-12: 6 A at 690 V CA 50/60 Hz conforming to EN/CEI 60947-2
DC-12: 10 A at 24/48 V CC conforming to EN/CEI 60947-2
DC-12: 10 A at 125 V CC conforming to EN/CEI 60947-2
DC-12: 3 A at 250 V CC conforming to EN/CEI 60947-2
8 A at 480 V CA 50/60 Hz conforming to UL 489
6 A at 600 V CA 50/60 Hz conforming to UL 489
6 A at 250 V CC conforming to UL 489
mode d'installation
Fixe
Extraire
Extraire
type of auxiliary contacts
De base
equipment provided
1 fiche d'instruction
