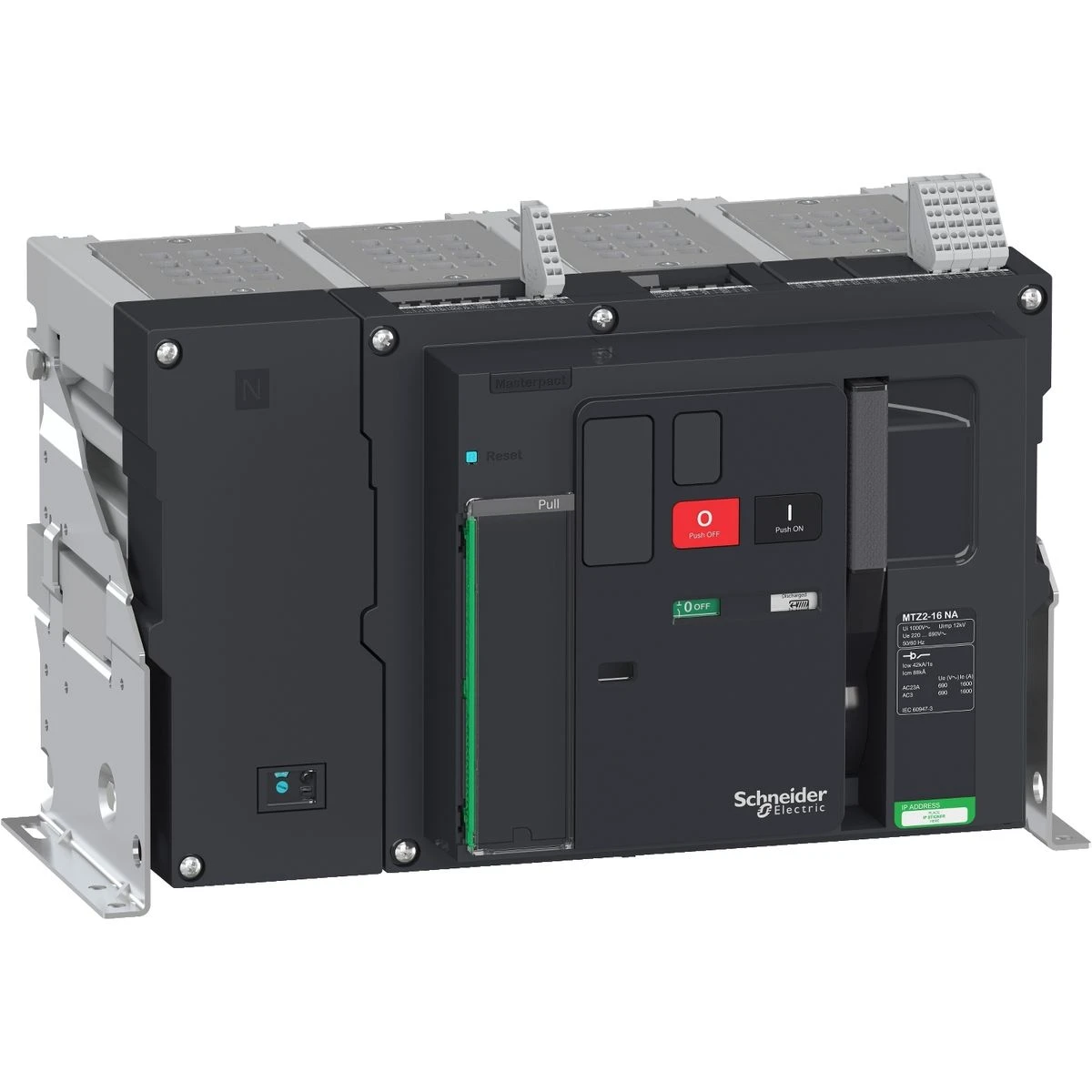

LV848053 - Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed - Schneider Electric

Expected in 2-4 weeks EAN: 3606480815669
LV848053 - Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed - Schneider Electric - Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed - Schneider Electric - 0
EAN: 3606480815669
LV848053 - Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed - Schneider Electric
3 765,65 € excl. VAT
4 669,40 € incl. VAT
Text About:
Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed - Schneider Electric
4 669,40 €
SPECIFICATIONS
Main
Range Masterpact
sectioning ability Oui se conformer à EN/CEI 60947-3
job category AC-23A
AC-3
type of product or equipment Interrupteur-sectionneur
[ui] rated insulation voltage 1000 V CA 50/60 Hz se conformer à EN/CEI 60947-3
visible cut Non
switch-disconnector name Masterpact MTZ2 16 NA
performance level NA
Complementary
"no" connection 115 mm
[icm] rated short circuit making capacity 88 kA crête 220...690 V CA à 50/60 Hz
[ie] rated operational current 1600 A CA 50/60 Hz 690 V
[ue] rated operational voltage 690 V CA 50/60 Hz se conformer à EN/CEI 60947-3
application Distribution
[icw] rated short-time withstand current 42 kA pendant 1s se conformer à EN/CEI 60947-3
se conformer à EN/CEI 60947-3
Handle front plate colour 352 mm
[uimp] rated impulse withstand voltage 12 kV se conformer à EN/CEI 60947-3
mechanical life 25000 cycle avec maintenance préventive périodique se conformer à EN/CEI 60947-3
product weight 65 kg
fully apparent cut Oui
mode d'installation Fixe
electrical life AC-23A: 10000 cycle 440 V CA 50/60 Hz se conformer à EN/CEI 60947-3
AC-23A: 10000 cycle 690 V CA 50/60 Hz se conformer à EN/CEI 60947-3
AC-3: 6000 cycle 440 V CA 50/60 Hz se conformer à EN/CEI 60947-3
AC-3: 6000 cycle 690 V CA 50/60 Hz se conformer à EN/CEI 60947-3
width (w) 537 mm
network frequency 50/60 Hz
depth 300 mm
Network type CA
order type Bouton-poussoir
Poles description 4P
Environment
degree of pollution 3 se conformer à EN/CEI 60947-4-1
ip degree of protection IP30
product certificates certificat CEI CE
operating ambient temperature -25…70 °C
standards EN/CEI 60947-3
storage room temperature -40…85 °C
About this product

The LV848053 - Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed is fashioned to accommodate the wants of professional purchasers, such as electrical contractors, circuit experts, maintenance companies, and OEMs. LV848053 supplies extraordinary efficiency and utility for contractors in the energy management industry. This Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed and other Masterpact MTZ from Schneider Electric can be acquired at the most competitive price and delivery schedule through BaltElec, a well-known distributor helping practitioners in their gathering needs.

Professionals who have chosen Schneider Electric Masterpact MTZ have repeatedly acclaimed the creator's resilience. It has been noted that the unmatched effectiveness of LV848053 - Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed extends to a wide range of purposes. Its high-end elements make it well-suited solution to meet diverse demands. Your developed solution will excel in quality, energy-efficiency and price.

Our specialists devotes in addressing industrial and tertiary professionals’ needs. We know the specific needs and standards of our buyers in the niche. By working with BALTELEC, our customers receive access to the superior rates and delivery period of the top-of-the-line products like LV848053 - Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed from Schneider Electric at cost-effective price. Registered customers benefit from additional savings and top-tier service.

Seize the moment and order LV848053 - Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed at our certified and hassle-free platform. Don't delay in making this astute selection that secures the finest quality and satisfies the customized needs of traders like your business.

Should you have any problems or concerns about LV848053 - Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed or any other Schneider Electric products, contact us or refer to our Knowledge base section below. We have put together answers to typical concerns to benefit you further in making an informed decision about industrial and tertiary electrical components.

Remember, LV848053 - Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed from Schneider Electric is safe, reasonable, and better to its competitors in the Masterpact MTZ category. Feel free to make it a part of your installation at once. Take advantage of at Baltelec webstore, your consistent provider for all your Masterpact MTZ.

In our Baltelec.eu web store you will encounter Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed - LV848053 worth 4,594.09 €, which will be a reliable and modern solution for your wants. This thing is formulated by the Schneider Electric brand using the current technologies and obeys the leading standards of well-being and workmanship. We give objects from the Masterpact MTZ category that associate durability and usability, which is an exceptional pick for various uses. Independent of whether you seek apparatus for small fabrication or for proficient industrial application, Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed will be a constant partner in your duty.

Baltelec ventures to make the procuring process as simple and fast as viable for our purchasers. We offer detailed reports and high-quality photos of Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed so that you can make an advised choice. A team of connoisseurs is always ready to help you with any questions in the Masterpact MTZ section linked to the picking and use of equipment. We are affirmed that Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed will meet your needs and become an needed element of your machinery for just 4,594.09 €.

Frequently Asked Questions about Schneider Electric Switch disconnector, MasterPact MTZ2 16NA, 1600A, 88kA/690VAC 50/60Hz (Icm), 4P, fixed:
